MINSHENG T212 - Automatic labeler

MINSHENG T212 - Automatic labeler

Available quantity:1

Description

Automatic labeling machine with prism application station designed for the precise application of self-adhesive labels cylindrical shaped containers. Thanks to its prism holding system, the machine perfectly stabilizes products during application to ensure consistent alignment and a professional finish on one or multiple sides. The prism station provides constant container positioning, reducing the risk of misalignment or bubble formation, even at high speeds. Easy to adjust, this labeling machine quickly adapts to different product formats and label sizes, offering excellent versatility for production lines.

Specifications

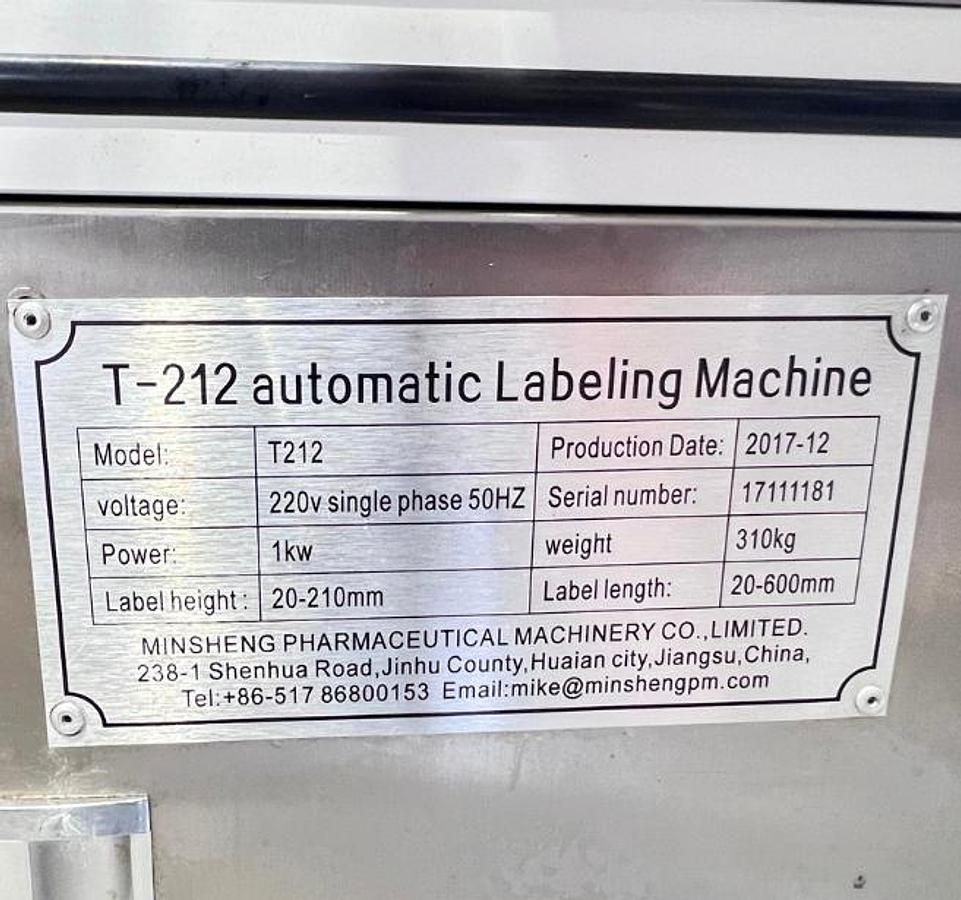

ManufacturerMINSHENG PHAMRCEUTICAL MACHINERY CO.,LIMITED
ModelT212
Year2017
ConditionUsed
Serial Number17111181
Stock NumberDH03
Power supply240V 1Ph 60Hz 1Kw 5A
Air supply5 CFM @ 85 PSI
Production speedUp to 30 containers/minute (Depending on container format, label length, and conveyor speed)
Possible label applicationsWrap-around label
Labeling systemPrism

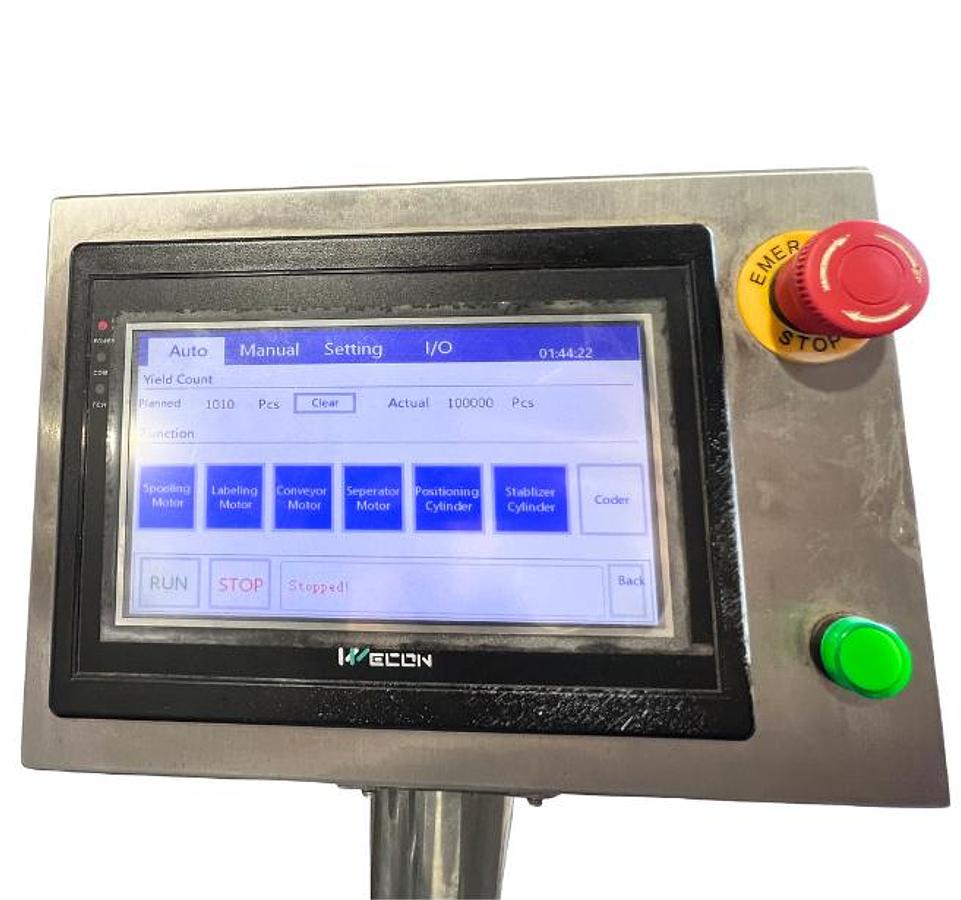

Control systemPLC + Touchscreen HMI
Drive system / Motor typeStepper motor
Coding / printing systemThermal transfer printer
Label sensor typePhotoelectric sensor
Container sensor typeFiber optic sensor
Maximum label height9''
Maximum label lenght23''
Maximum container diameter/width10''
Container compatibilityRound
Inner diameter of the label roll core3'' (76 mm)
Maximum outside diameter of the label roll12''
Applicable label unwind direction → Outer positionLeft side first
Conveyor belt typeTableTop LF Acetal
Conveyor belt dimensions (W x L)10'' x 118''
Conveyor height33.5'' (Adjustable)
Operating directionLeft to right
Support typeLeveling mounts / Casters
Overall dimensions (L x W x H)120'' x 58'' x 60''
Weight685 lbs
