Automatic tabletop labeler
Automatic tabletop labeler
Available quantity:1
or
Call 450-444-4433
Description

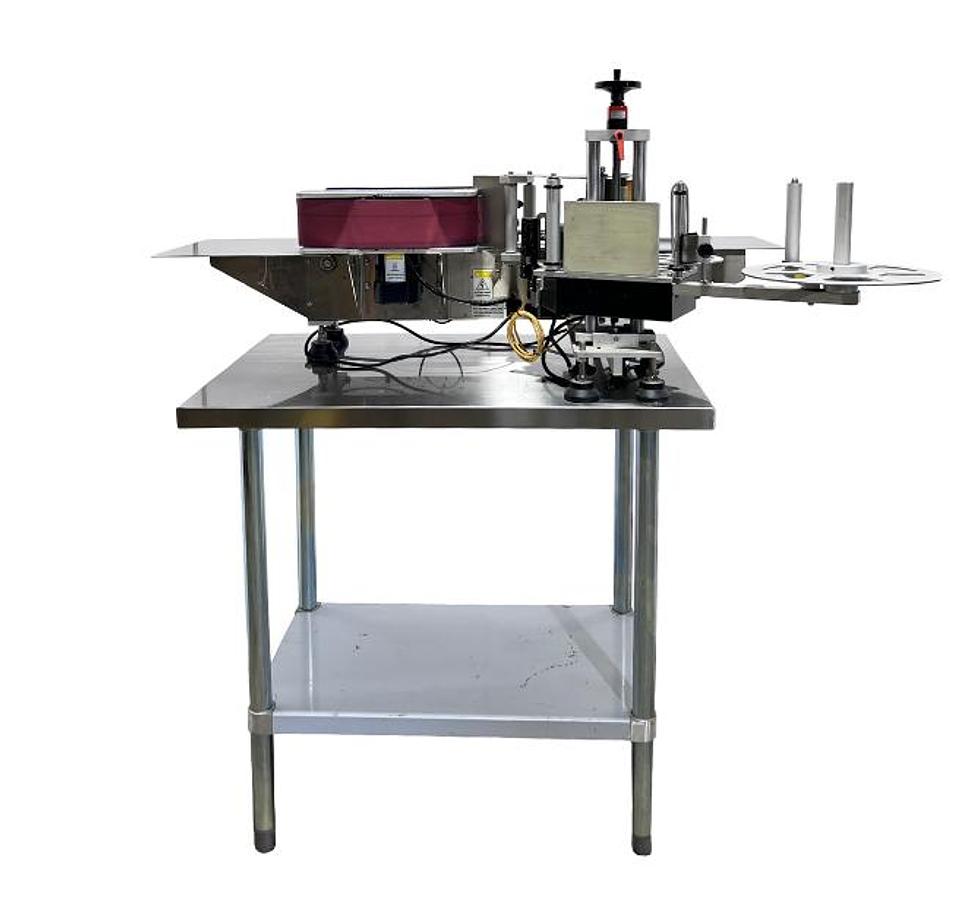

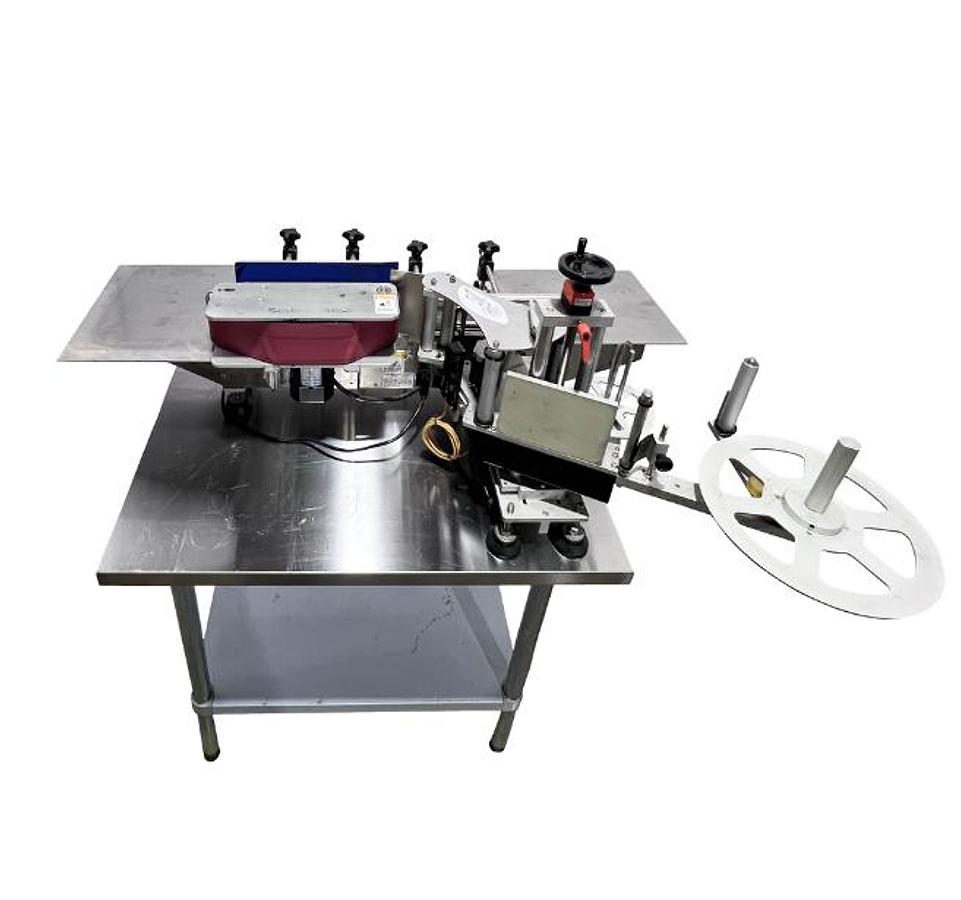

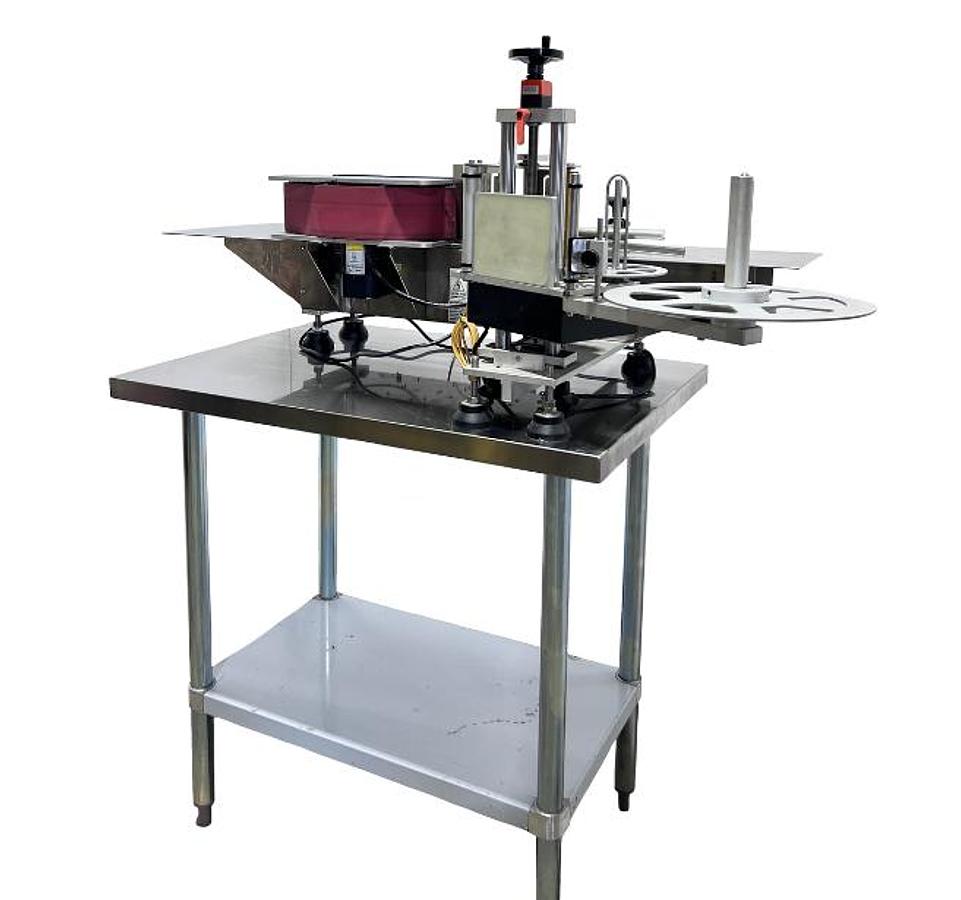

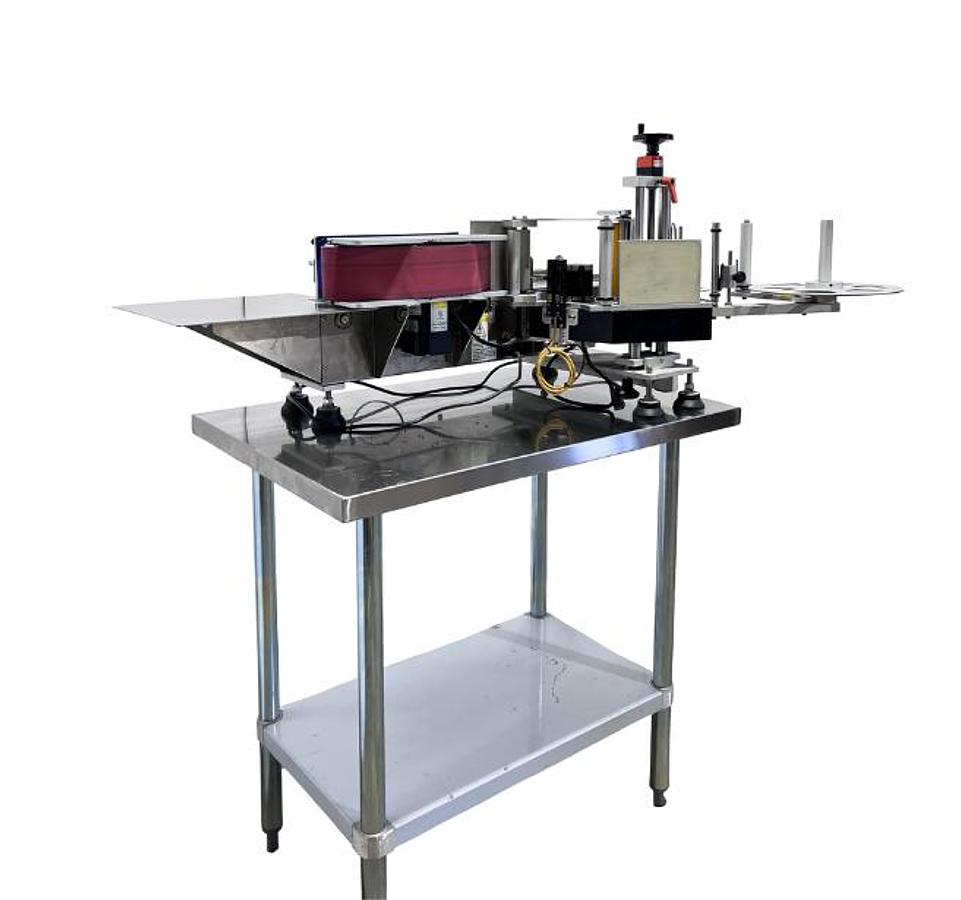

Automatic wrap-around labeling machine designed for the precise and uniform application of self-adhesive labels on cylindrical containers such as bottles, jars, cans, and vials. Thanks to its motorized wrap-around station, the machine ensures optimal label adhesion and perfect positioning around the entire circumference of the product, even at high production speeds.
Specifications
| Year | 2011 |
| Condition | Used |

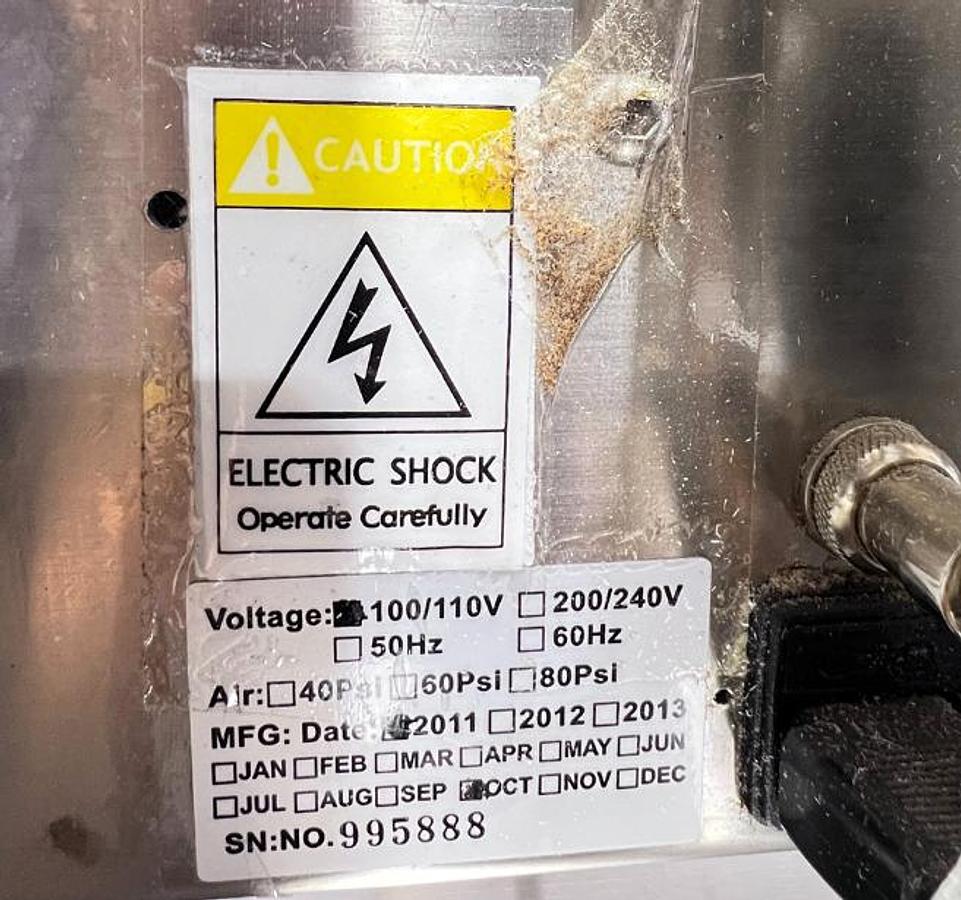

| Serial Number | 995888 |
| Stock Number | NS02 |
| Power supply | 120V 1Ph |
| Production speed | Up to 60 containers/minute (Depending on container format, label length, and conveyor speed) |
| Possible label applications | Wrap-around label |
| Labeling system | Wrap-around |
| Control system | Digital control panel |
| Drive system / Motor type | Stepper motor |
| Label sensor type | Capacitive sensor (Clear and paper labels) |
| Container sensor type | Photoelectric sensor |
| Maximum label height | 5.5'' |
| Maximum label lenght | 15'' |
| Maximum container diameter/width | 6'' |
| Container compatibility | Round |
| Inner diameter of the label roll core | 3'' (76 mm) |
| Maximum outside diameter of the label roll | 12'' |
| Applicable label unwind direction → Outer position | Left side first |
| Conveyor belt type | Urethane |
| Conveyor belt dimensions (W x L) | 3.75'' x 24.75'' |
| Conveyor height | 9'' (Adjustable) |
| Operating direction | Left to right |
| Support type | Leveling mounts |
| Overall dimensions (L x W x H) | 56'' x 36'' x 24'' |
| Weight | 80 lbs |
