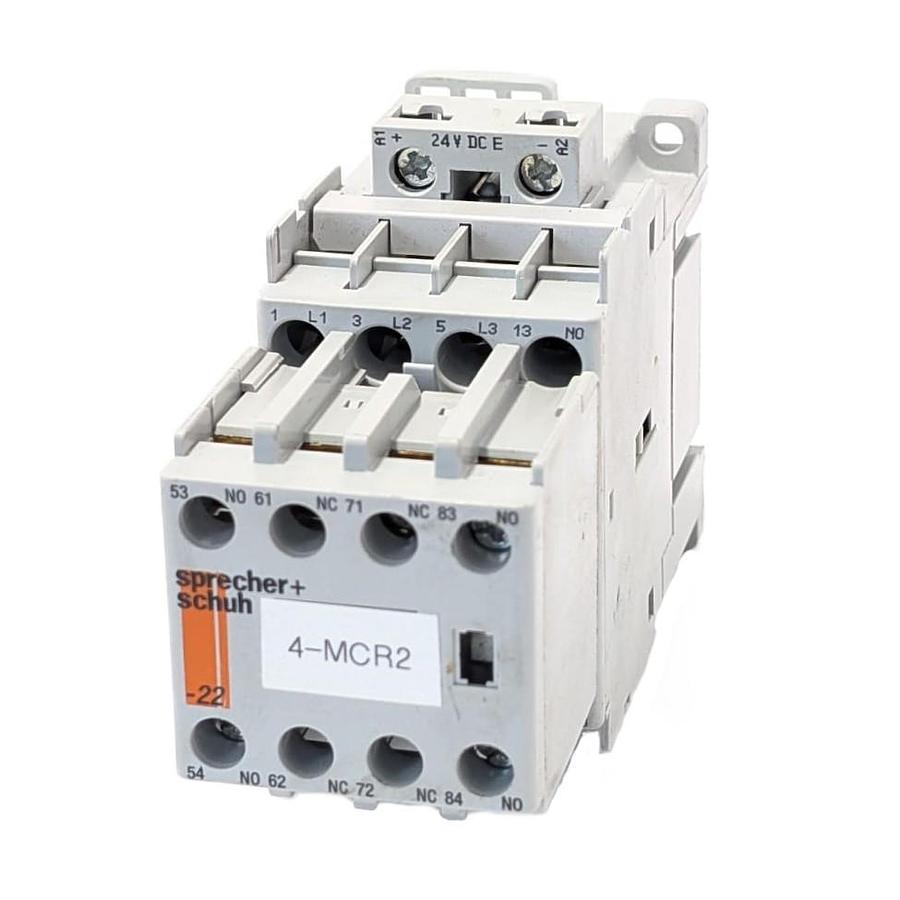

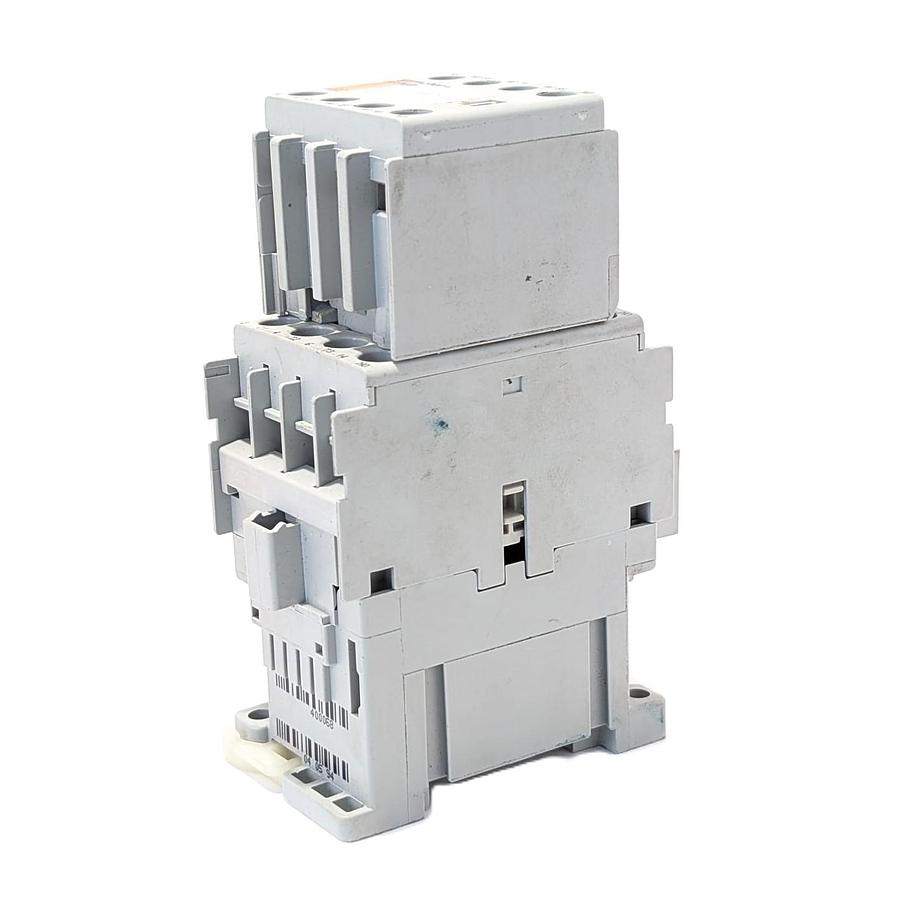

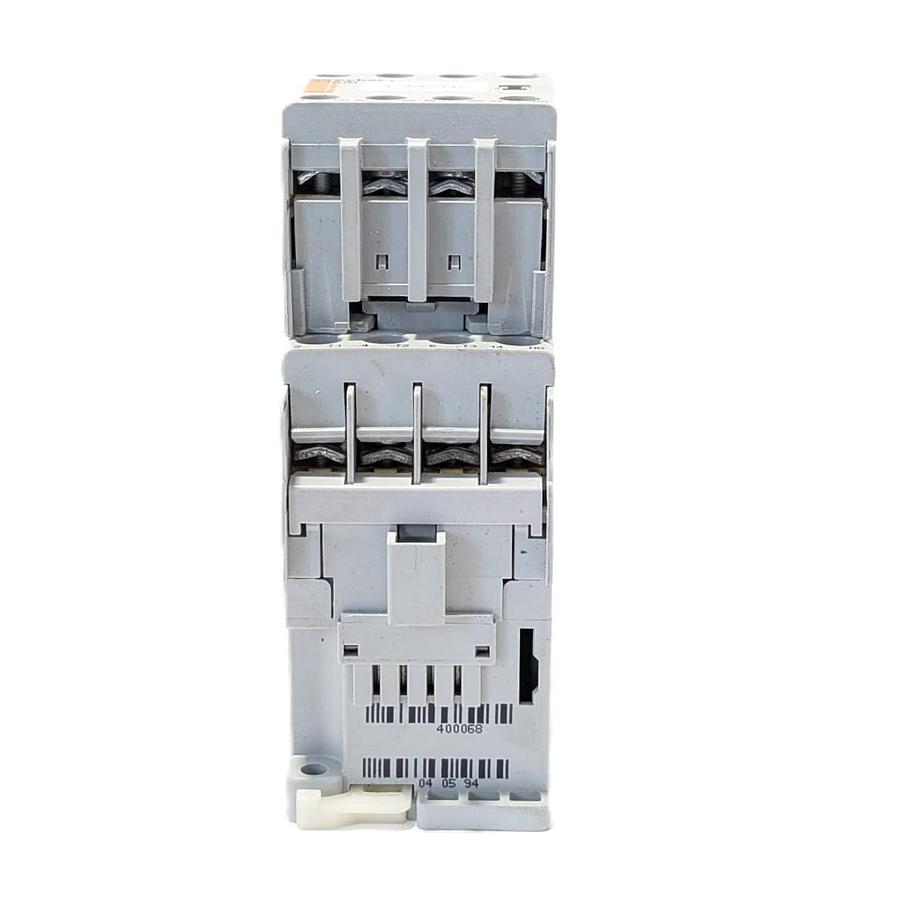

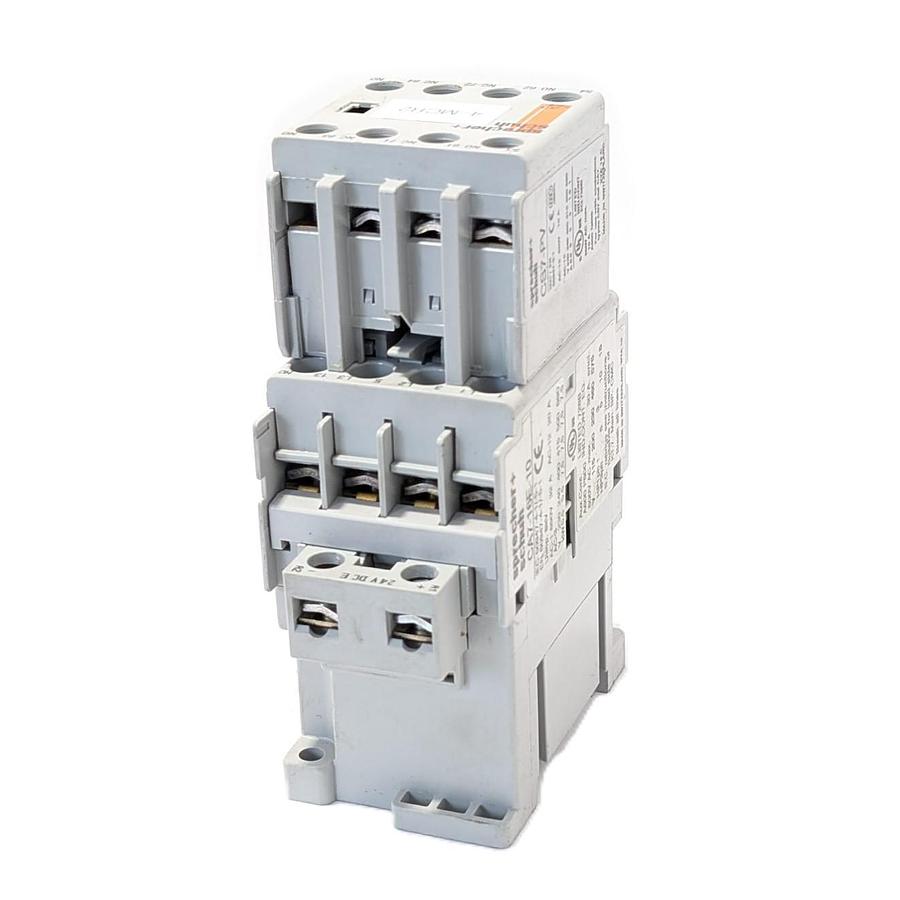

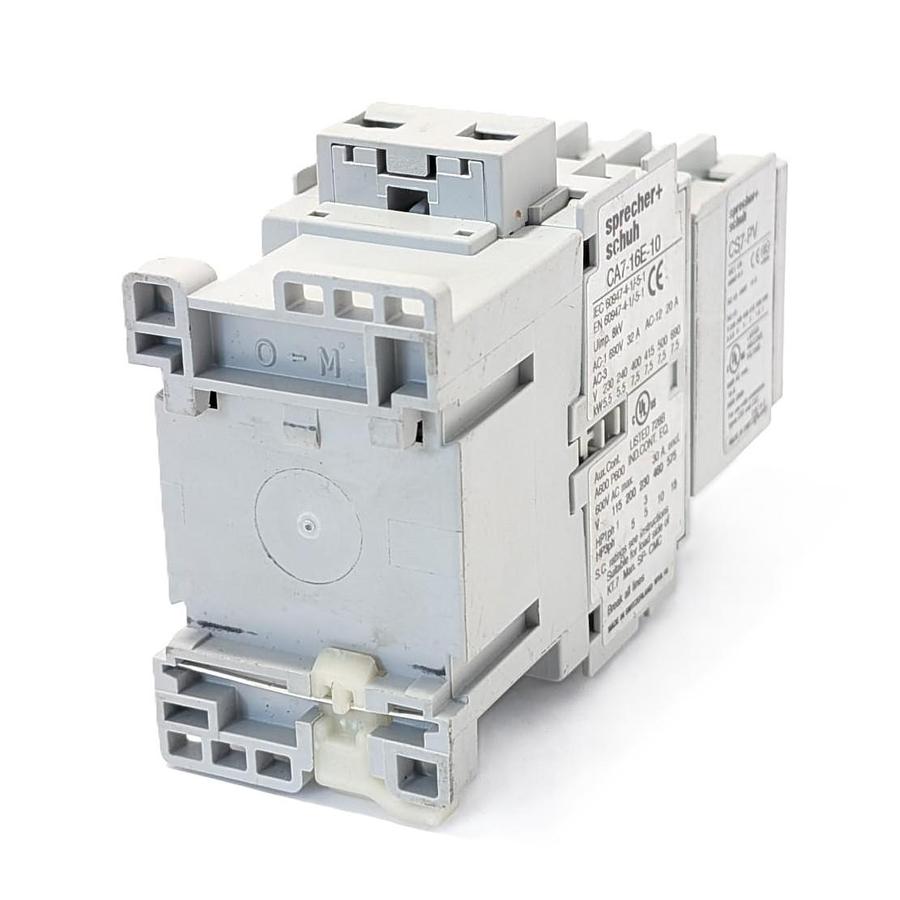

Sprecher + Schuh CA7-16E-10-24E

Copy-paste specs

Manufacturer: Sprecher + Schuh

Series: CA7

Model: CA7-16E-10-24E

Type: IEC motor contactor (non-reversing)

Poles: 3-pole (3P)

Auxiliary contacts: 1 NO (1 normally open)

Coil voltage:

• 24 VDC (electronic coil)

Rated current:

• AC-3: 16 A
• AC-1: 32 A

Rated operational voltage:

• Up to 600–690 V AC

Motor ratings (3-phase):

• 5 HP @ 200–230 V
• 10 HP @ 460 V
• 15 HP @ 575 V

Motor ratings (1-phase):

• 1 HP @ 115 V
• 3 HP @ 230 V

Standards:

• IEC / EN 60947-4-1
• IEC / EN 60947-5-1

Rated impulse voltage (Uimp):

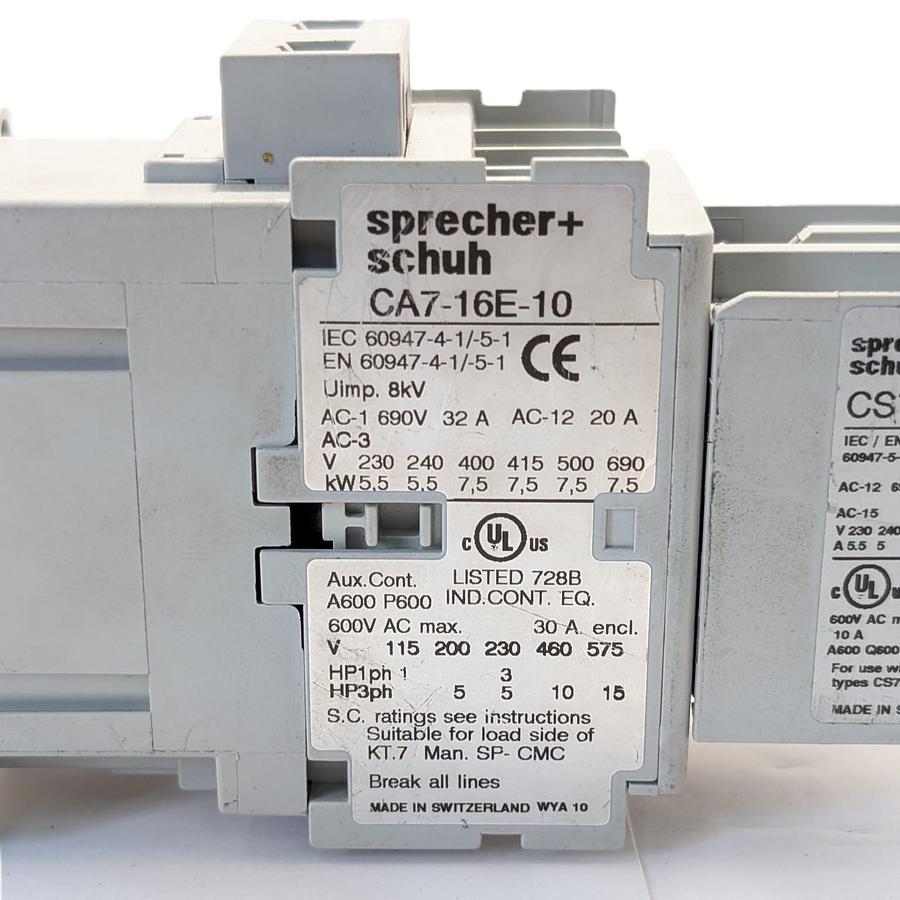

• 8 kV (matches your label)

Construction:

• Screw terminals
• DIN rail or panel mount
• Compact (~45 mm width)
