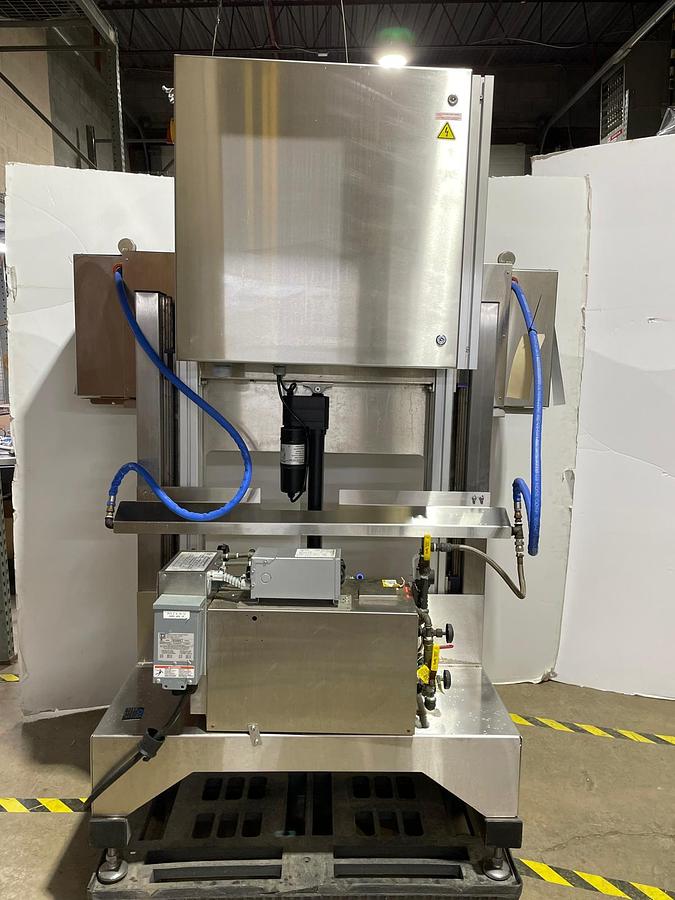

AESUS HYBRID TUNNEL 48'' - Hybrid steam shrink tunnel

AESUS HYBRID TUNNEL 48'' - Hybrid steam shrink tunnel

Available quantity:1

Description

A full body shrink sleeve can create opportunities for tamper evidence, using no adhesives. The sleeve shrinks from the heat on the tunnel forming to the shape of your bottle or container, giving you a tight fit and an opportunity to get creative with your container or bottle designs!

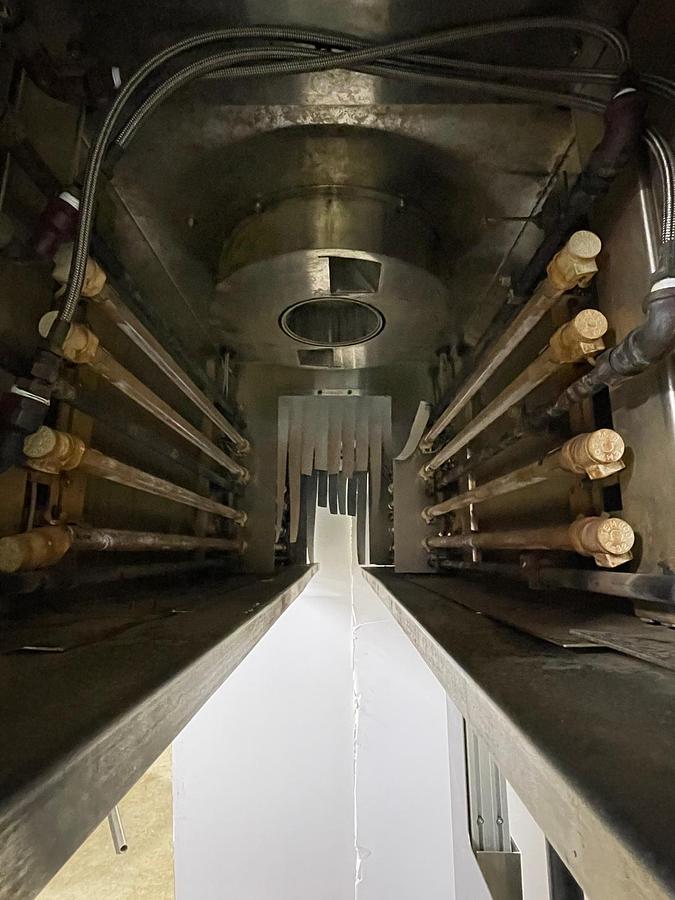

Aesus Patented Hybrid shrink tunnels are at the forefront of technology as it utilizes both Steam and Infrared heat in the same tunnel, a little steam is used, so the process is much drier than it would be with a steam only tunnel and the shrinking is completed in much less space than conventional tunnels.


This patented Hybrid heat tunnel offers results with a smaller footprint and less mess, requiring only a water source to produce steam as included with the unit is a steam generator. This saves the expense of having to install a costly boiler unit as a steam source.


Features

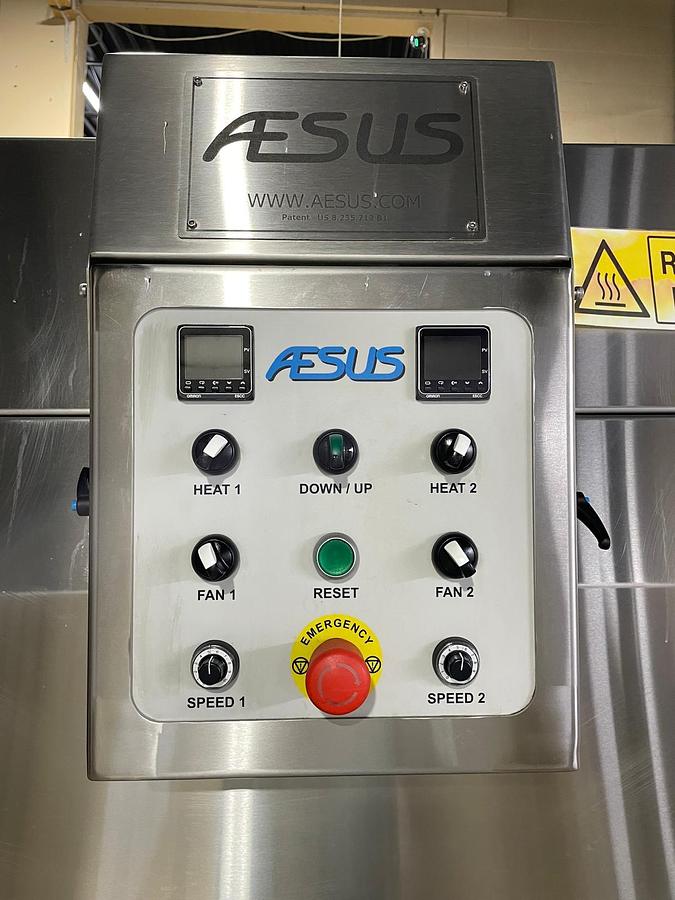

  • Two (2) fully adjustable heat zones
  • Two (2) adjustable fans for heat circulation

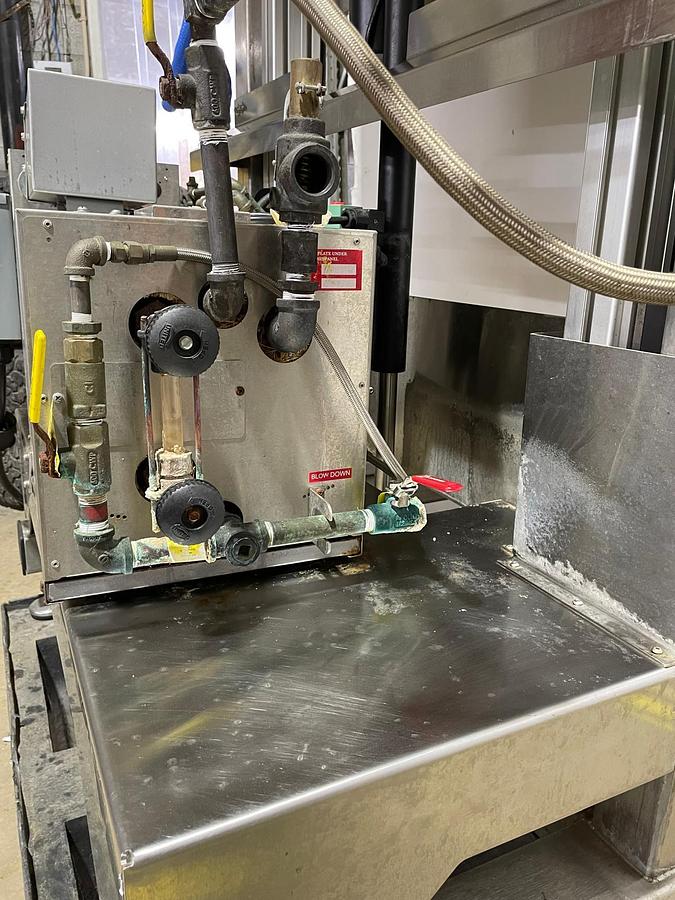

  • 30kw steam generator

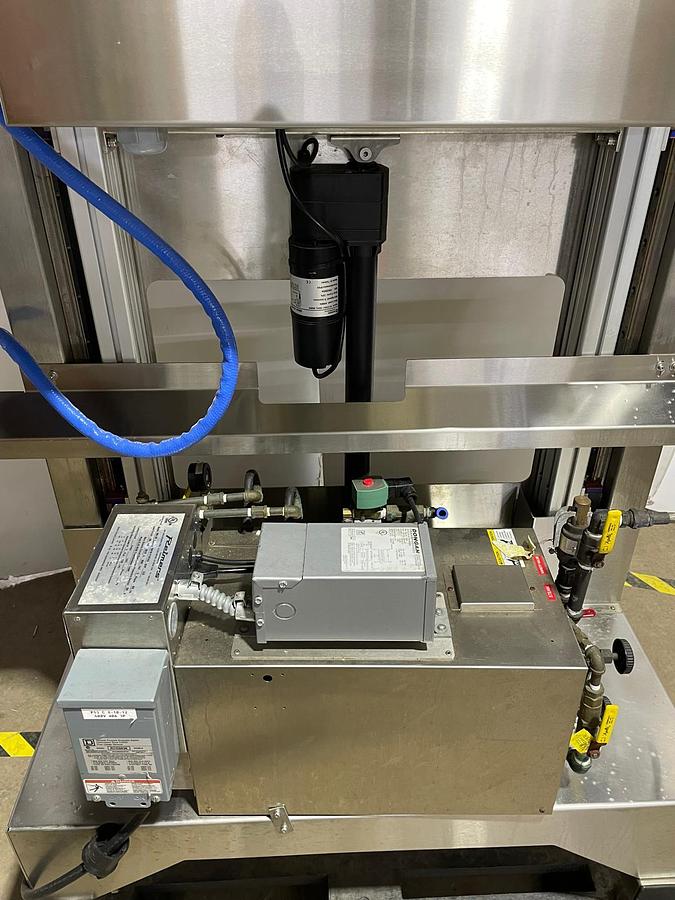

  • Motorized height adjustment stand
  • Stainless Steel construction

Specifications

ManufacturerAESUS
ModelHYBRID TUNNEL 48''
ConditionUsed

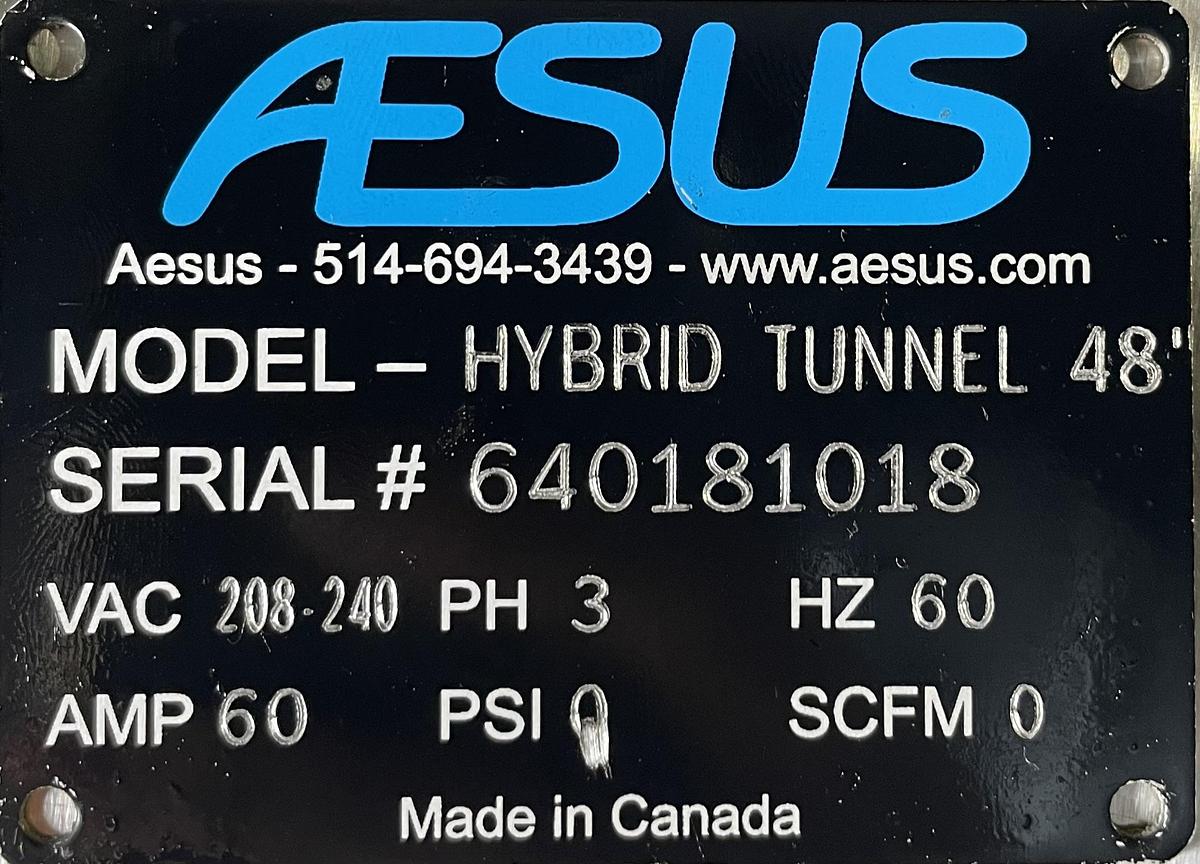

Serial Number640181018
Stock NumberBP02
Tunnel power supply208V 3Ph 60Hz 60A

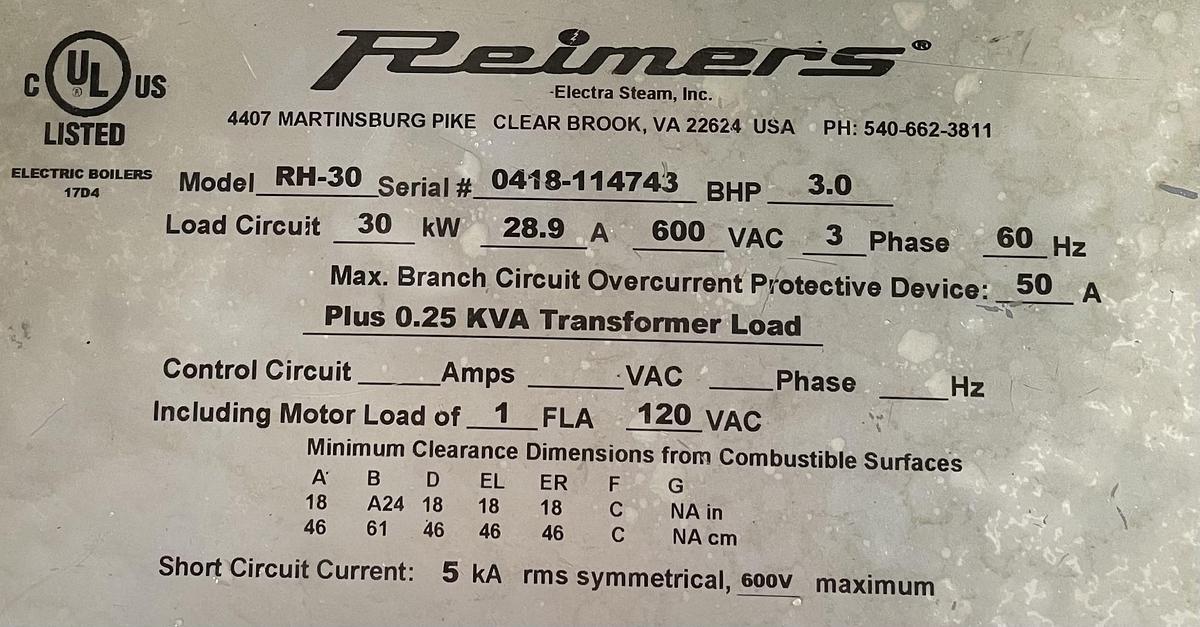

Steam generator power supply600V 3Ph 60Hz 30kW 28.9A
Neck banding application speedUp to 250 containers/minute
Full body sleeves application speedUp to 175 containers/minute
Full body sleeves on empty beer cans application speedUp to 110 cans/minute
Tunnel dimensions (L x W x H)64'' x 8.5'' x 12.5''
Applicable conveyor width3.75'' - 6.5''
Applicable conveyor height36'' - 60''
Support typeAdjustable leveling mounts
Overall dimensions (L x W x H)68'' x 48'' x 88''
