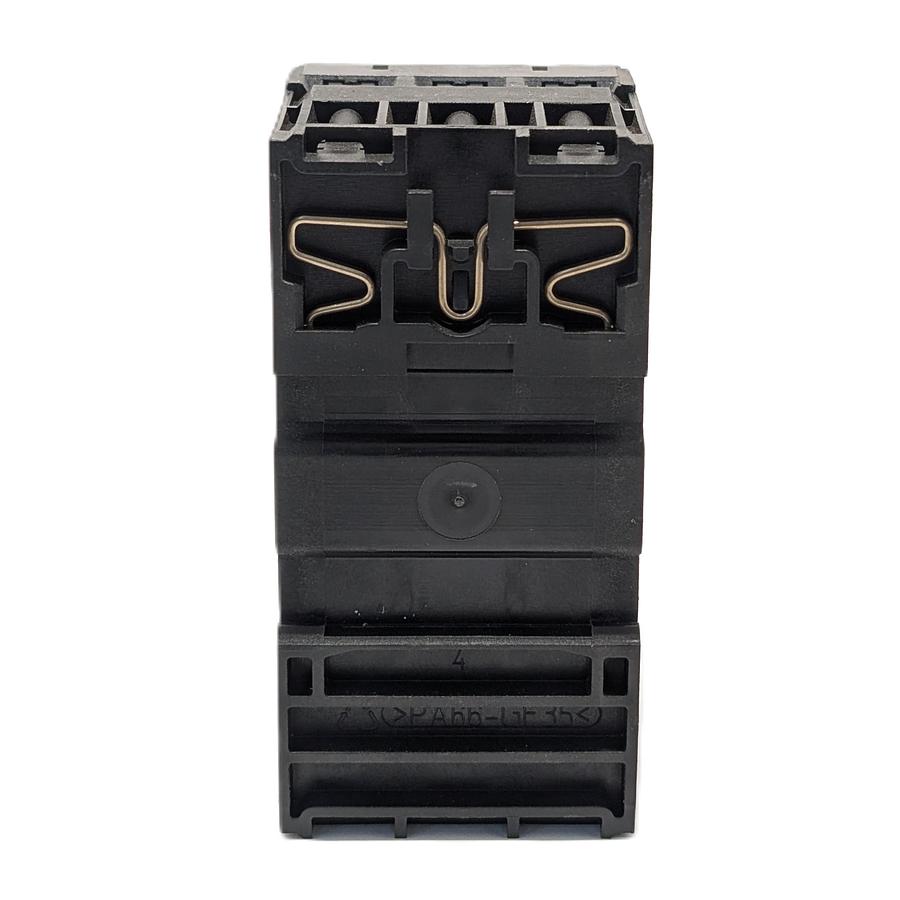

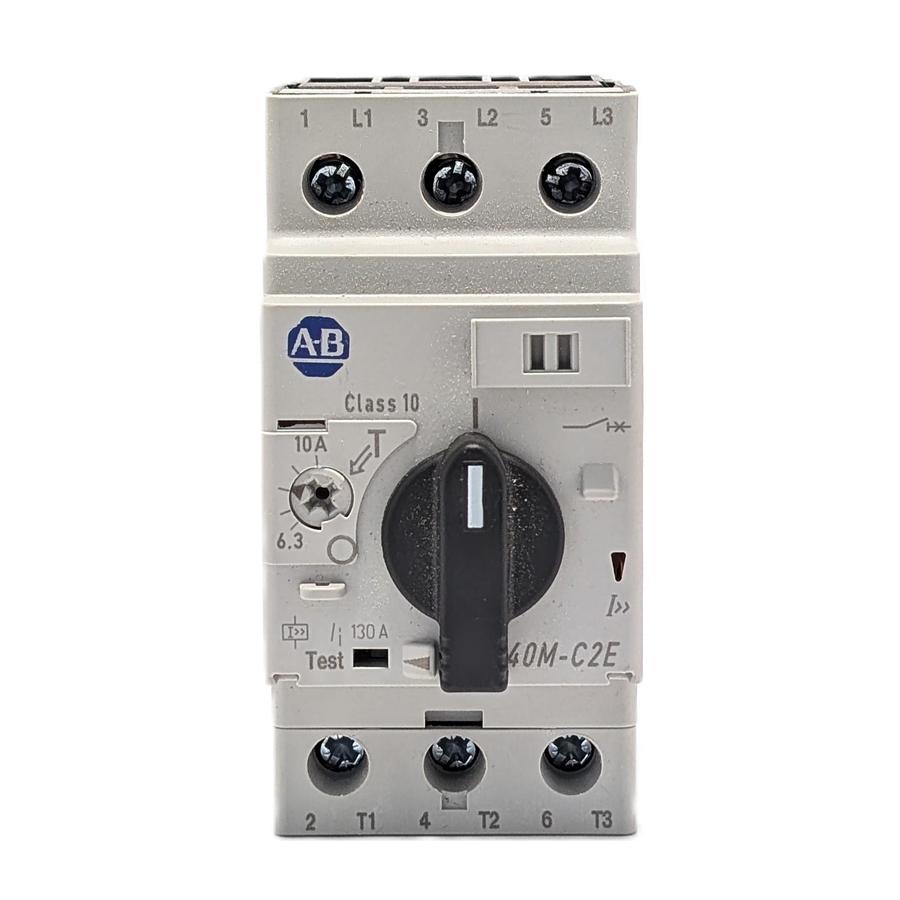

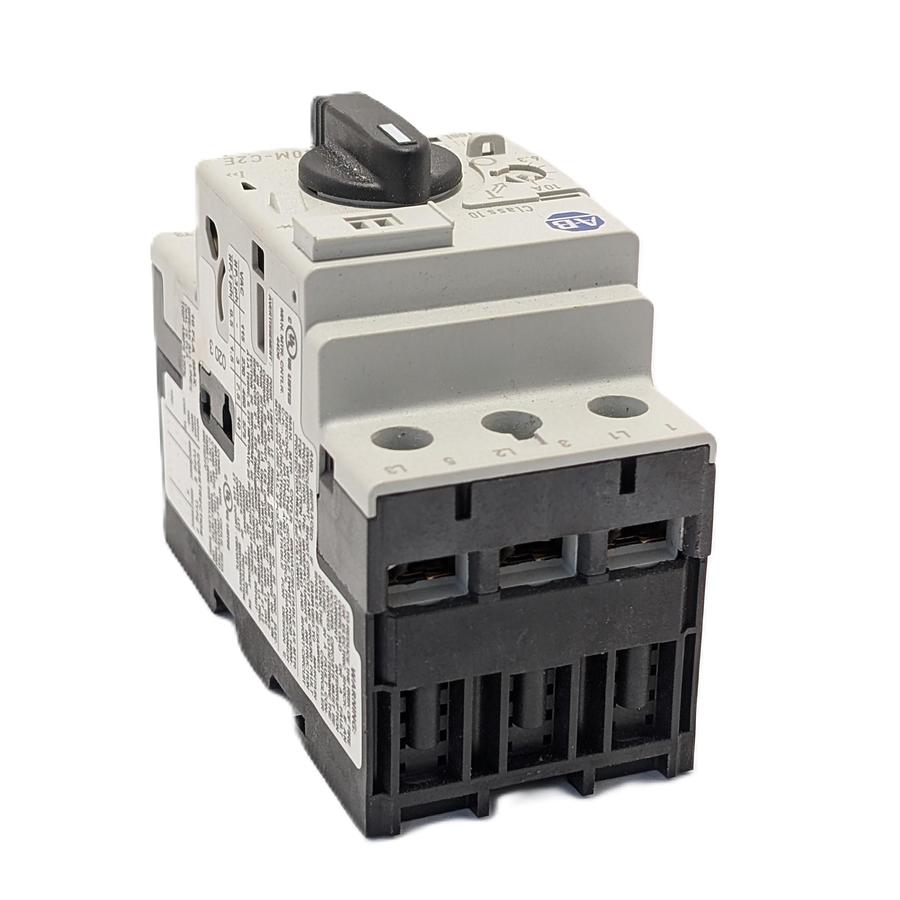

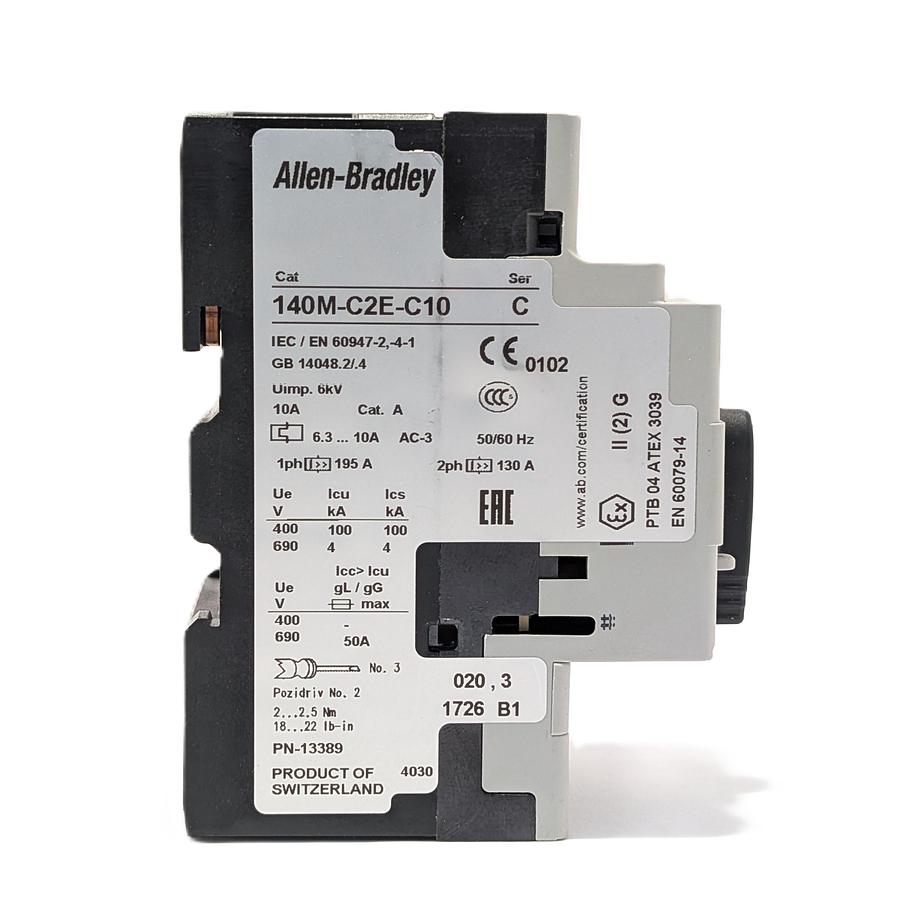

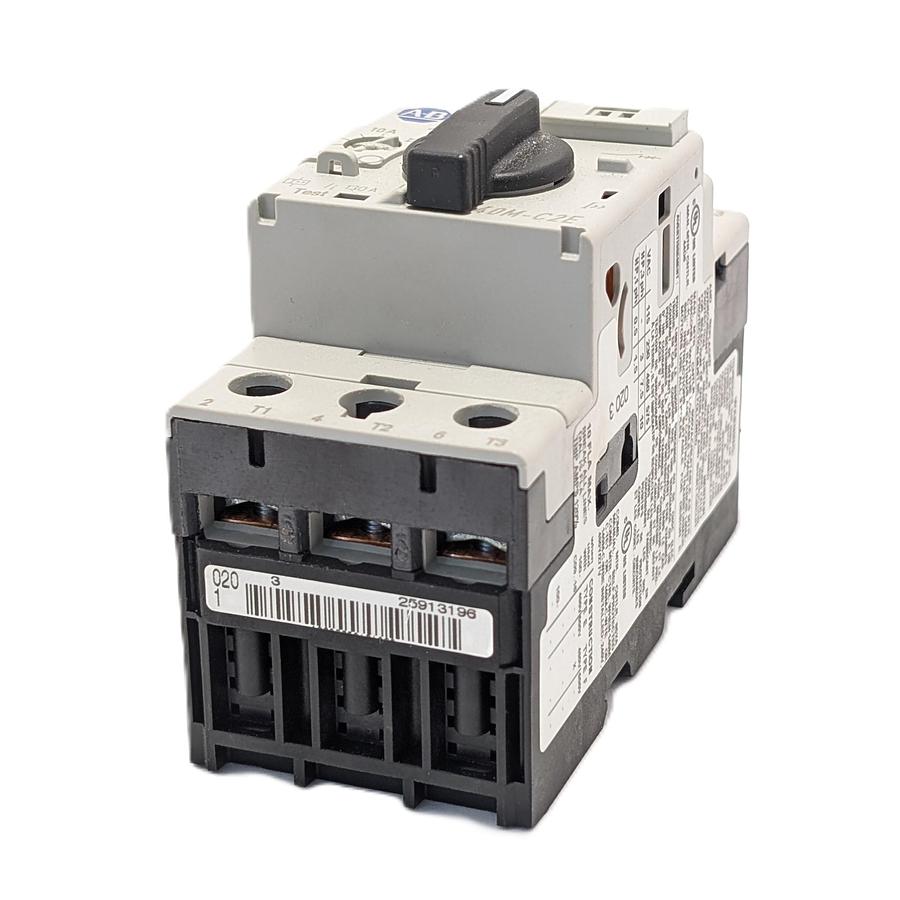

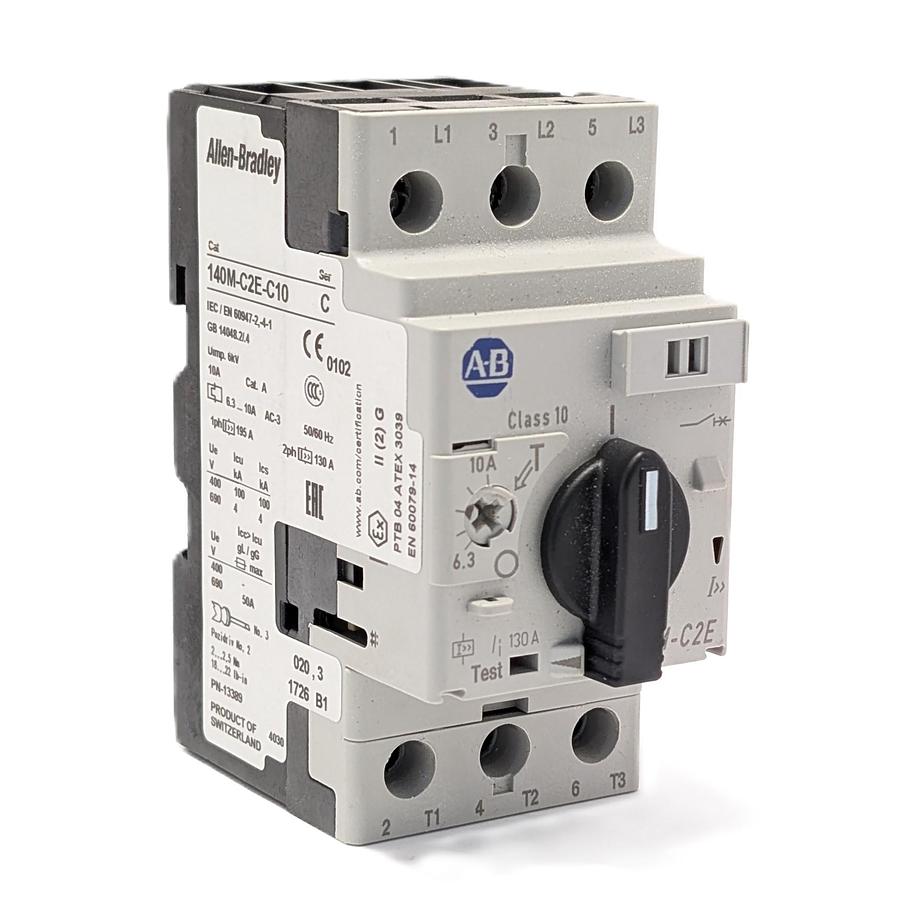

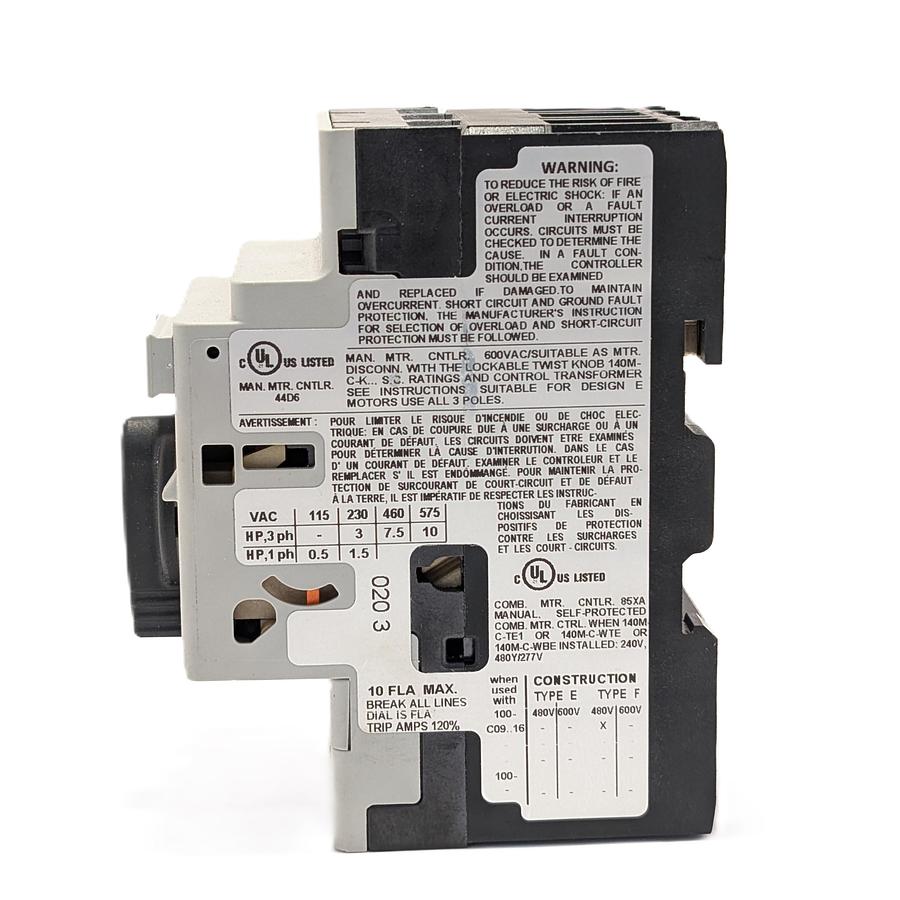

Allen-Bradley 140M-C2E-C10

🔧 Technical Specifications

• Model: 140M-C2E-C10 (previously 40M-C2E-C10)
• Type: Thermal-magnetic motor protection circuit breaker
• Rated Current: 6.3 to 10 A (adjustable)
• Trip Class: Class 10 (trips within 10 seconds under overload)
• Number of Poles: 3
• Mounting Type: DIN rail
• Operator Type: Rotary handle
• Protection: Thermal adjustable + fixed magnetic (13–14x rated current)
• Rated Voltage: 600 V AC
• Rated Power: Up to 4 kW at 400 V AC-3
• Short-Circuit Capacity: 50 kA at 500 V (IEC standard)
• Dimensions (H x W x D): 90 x 45 x 74.5 mm
• Weight: 317 g
• Protection Class: IP2X
• Operating Temperature: -25 °C to +60 °C
• Certifications: UL 508, CSA C22.2 No.14, CE

💡 Key Selling Points

• Complete Protection: Provides thermal and magnetic motor protection; meets NEC/CEC requirements without additional protection devices.
• Proven Reliability: Designed for a mechanical lifespan of up to 100,000 operations.
• Replacement Available: Superseded by model 140MT-C3E-C10, ensuring continued support and compatibility.
• Widely Used: Ideal for industrial applications requiring dependable motor protection.
