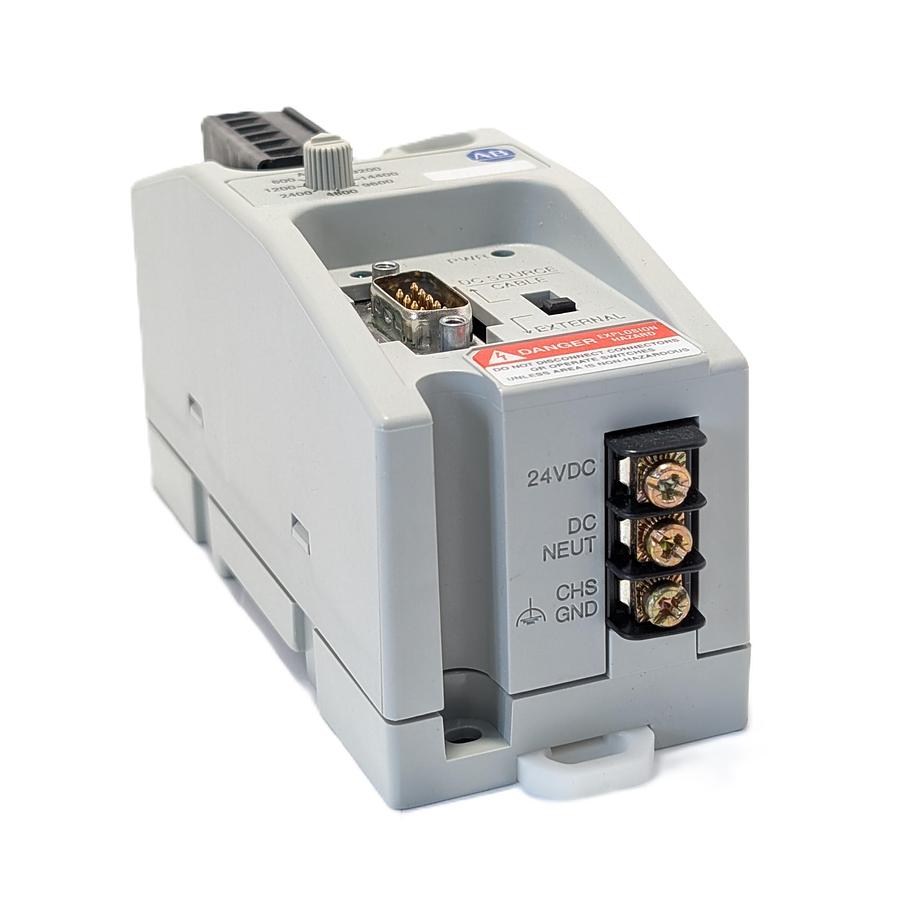

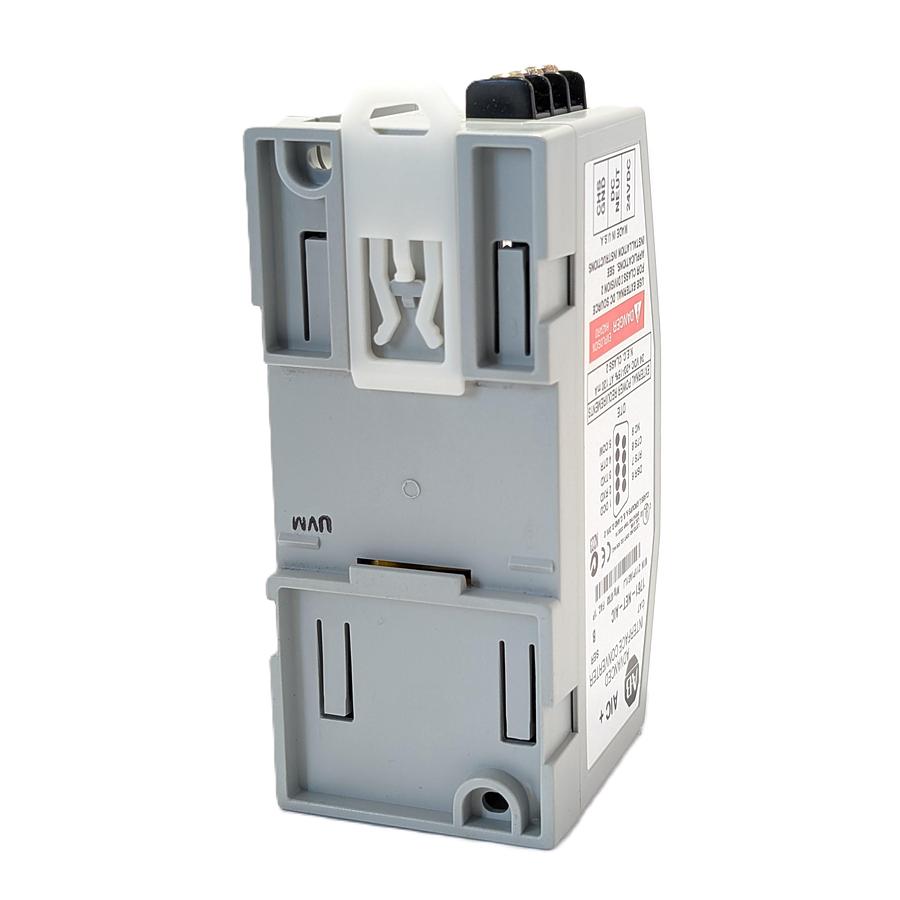

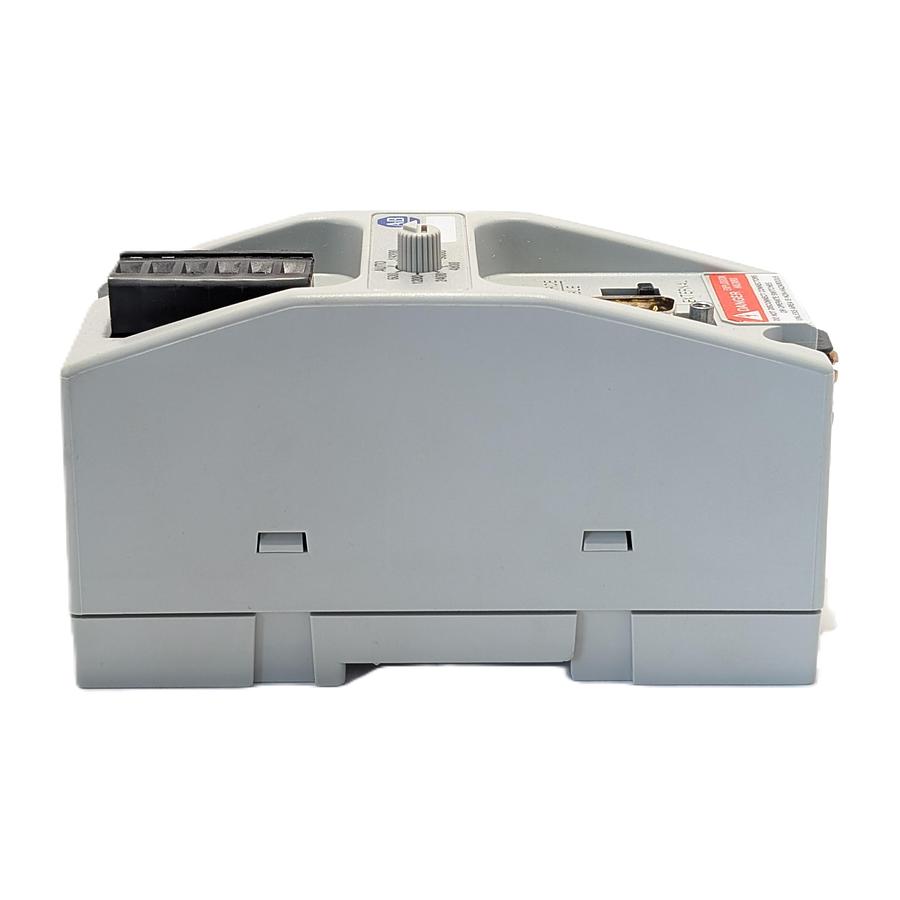

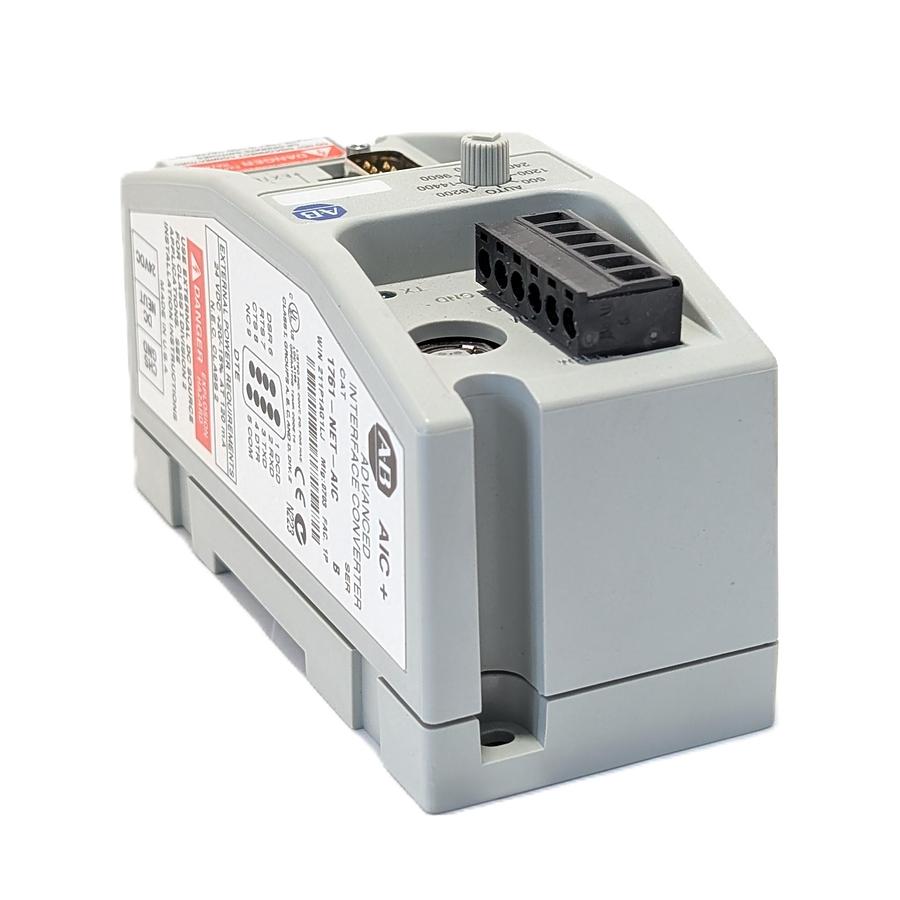

Allen-Bradley 1761-NET-AIC Series B

🔧 Key Specifications

• Model: Allen-Bradley 1761-NET-AIC Series B
• Type: Advanced Interface Converter (AIC)
• Function: Converts and adapts signals for communication between different industrial networks
• Supported Protocols:
• DF1 Full Duplex (RS-232)
• Ethernet (with additional adapter, depending on model)
• Physical Interface: RS-232, RJ45 (for Ethernet, depending on version)
• Power Supply: 5 V DC (via USB cable or external power supply)
• Compatibility: Mainly used with Allen-Bradley PLC-5 and SLC 500 programmable controllers
• Mounting: Compact design for desktop or panel mounting
• Dimensions: Approximately 4.7" x 2.8" x 1.2" (12 cm x 7 cm x 3 cm)
• Weight: About 150 g
• Supported Operating Systems: Windows (via RSLogix software)
• Usage: Serial interface converter for programming, configuring, and communicating with PLCs

⚙️ Typical Applications

• Communication between PC and Allen-Bradley PLCs via RS-232
• Signal adaptation for DF1 protocol
• Integration into existing industrial networks
• Support for programming, diagnostics, and monitoring of PLCs
