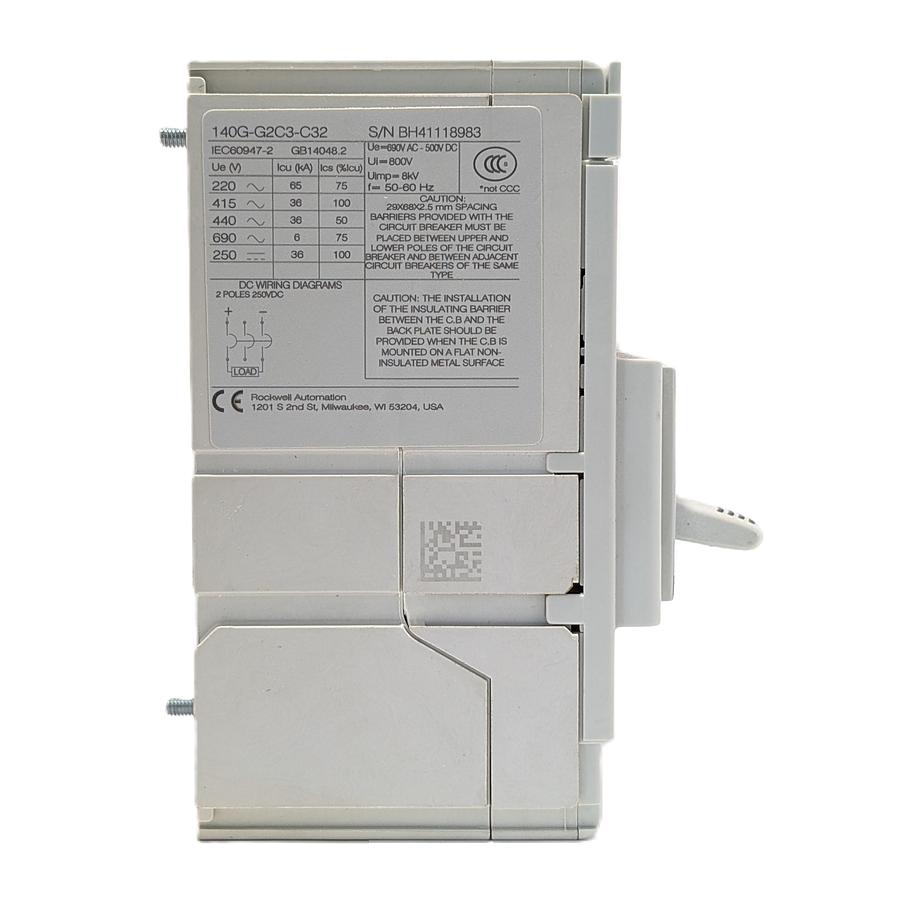

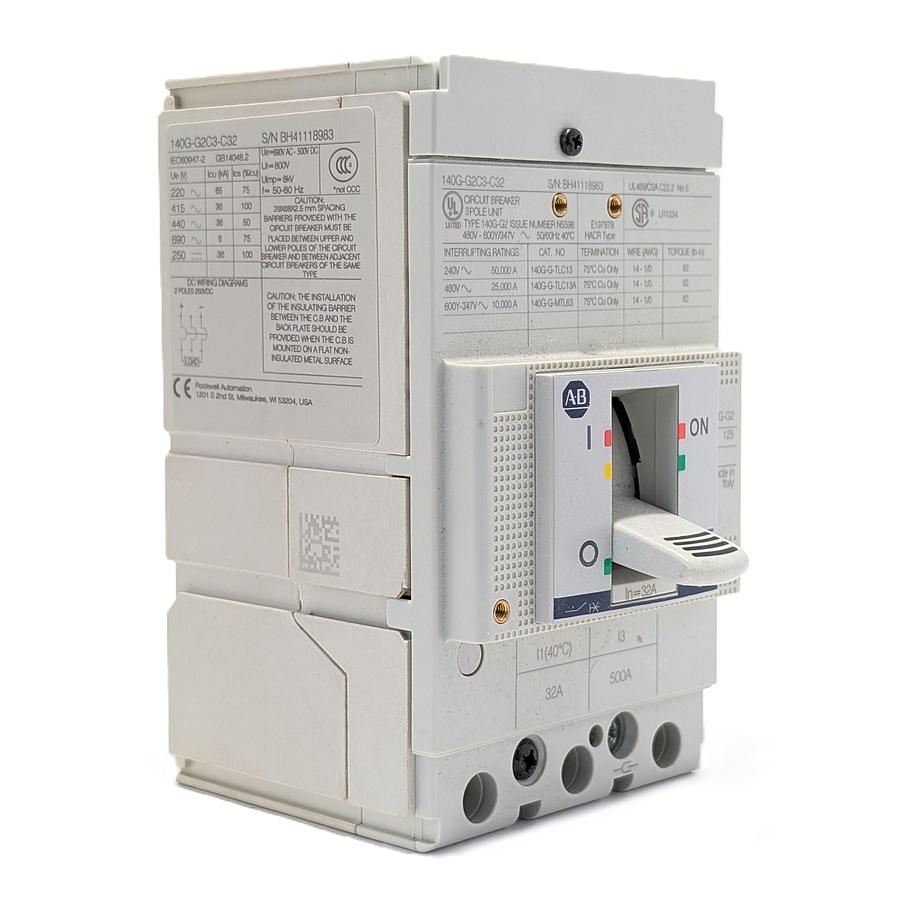

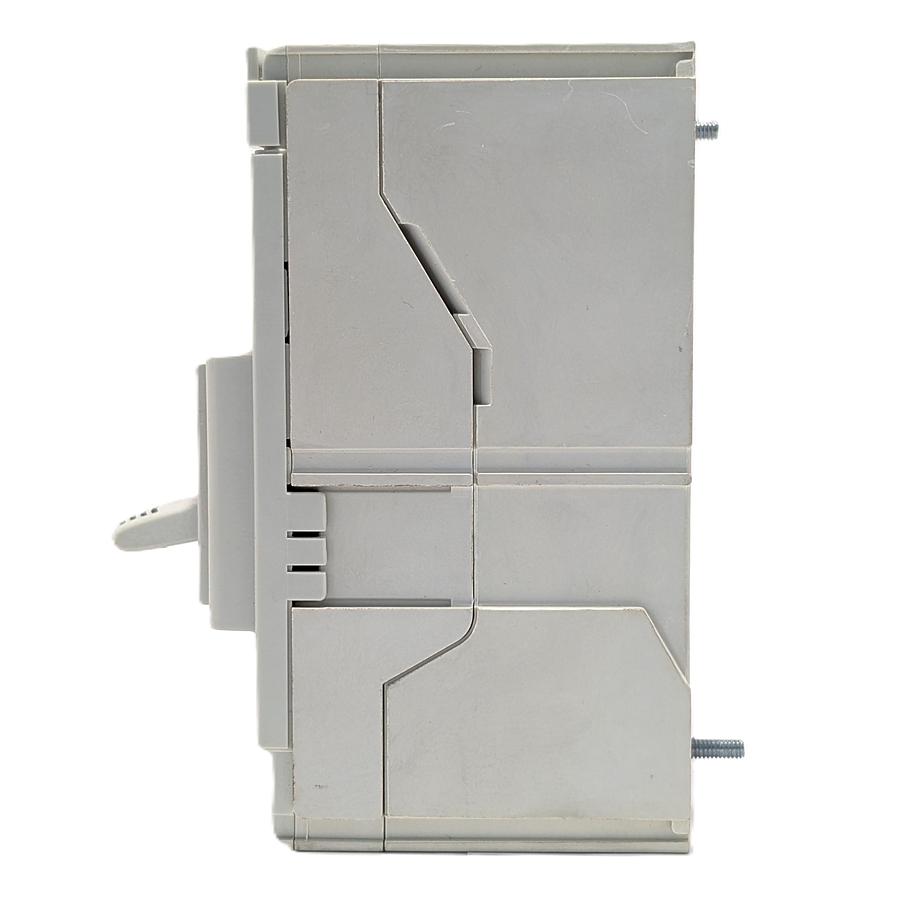

Allen-Bradley 140G-G2C3-C32

🔧 Key Specifications

• Model: Allen-Bradley 140G-G2C3-C32
• Type: Molded Case Circuit Breaker (MCCB)
• Frame Size: G Frame (125 A max)
• Rated Current: 32 A
• Poles: 3-Pole
• Trip Unit: Fixed Thermal Magnetic (T/M)
• Interrupting Capacity:
• 50 kA @ 240 V AC
• 25 kA @ 480 V AC
• 10 kA @ 600 V AC
• Insulation Voltage: 800 V (IEC)
• Ambient Temperature Rating: Up to 40 °C without derating

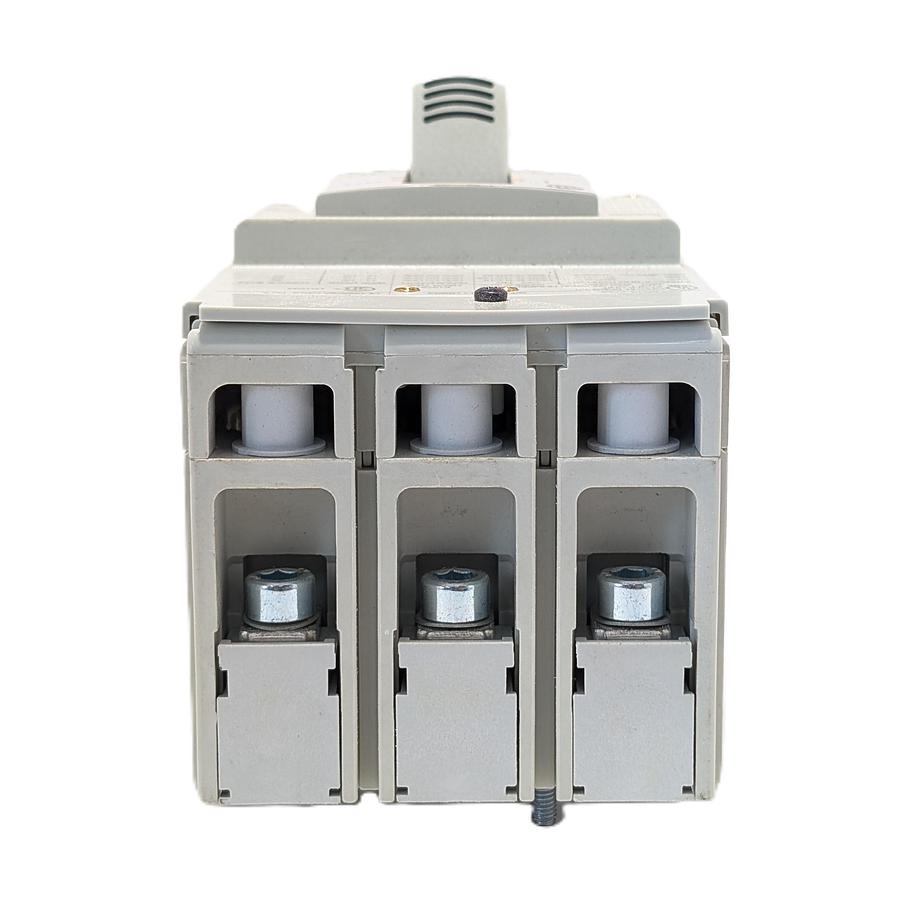

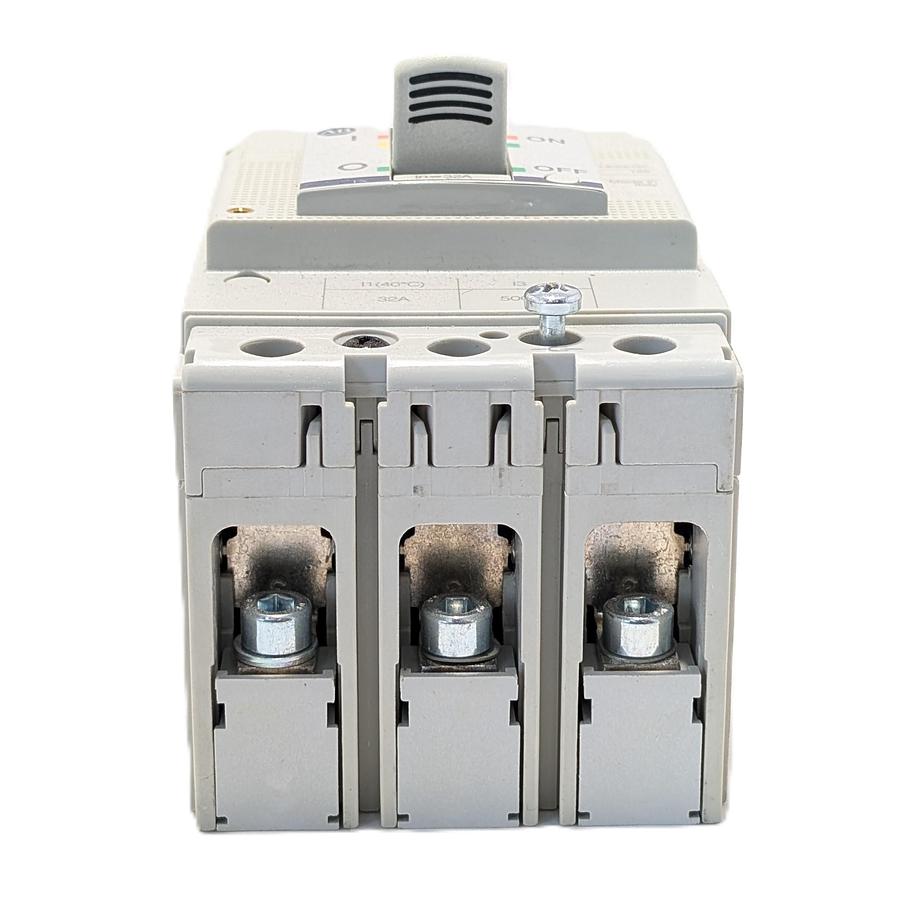

• Terminal Type: Screw terminals
• Mounting: Panel or optional DIN rail
• Protection Rating: IP20
• Dimensions: Height: 132 mm / Width: 95 mm / Depth: 147 mm
• Weight: 1.173 kg
• Certifications: UL 489, CSA 22.2 No. 5, IEC 60947-2, CCC, C-Tick

⚙️ Typical Applications

• Circuit protection in industrial power distribution
• Motor and equipment protection
• Environments requiring moderate to high short-circuit protection
• Indoor installations up to 40°C ambient
