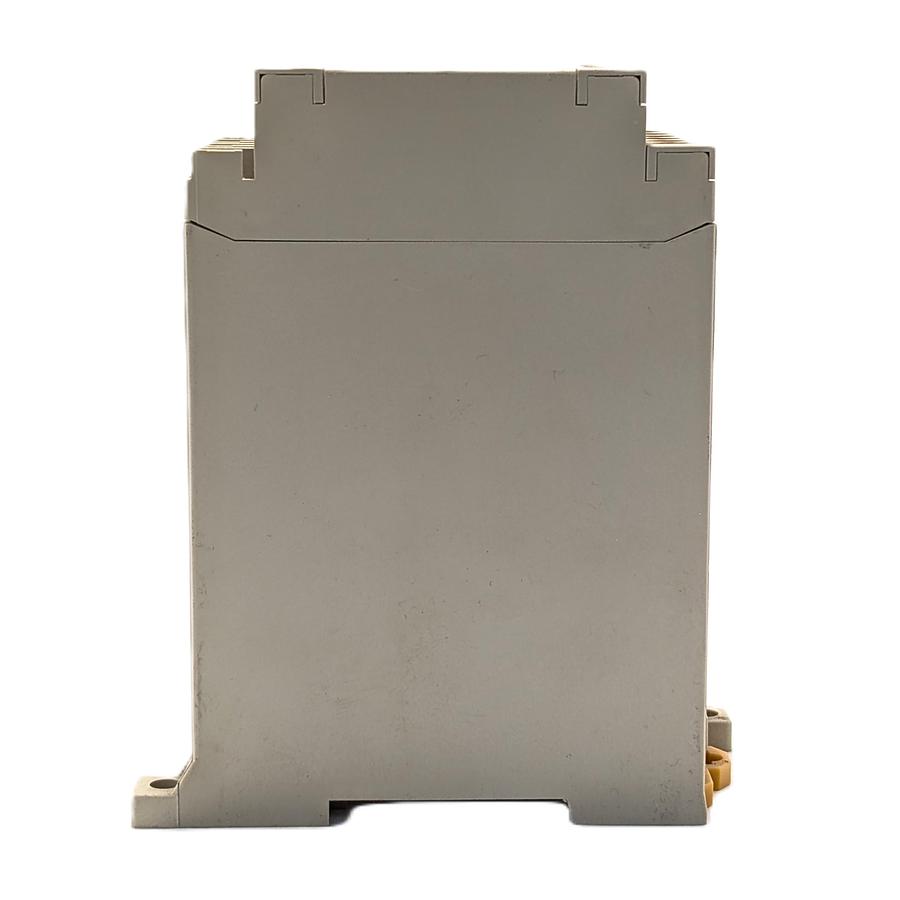

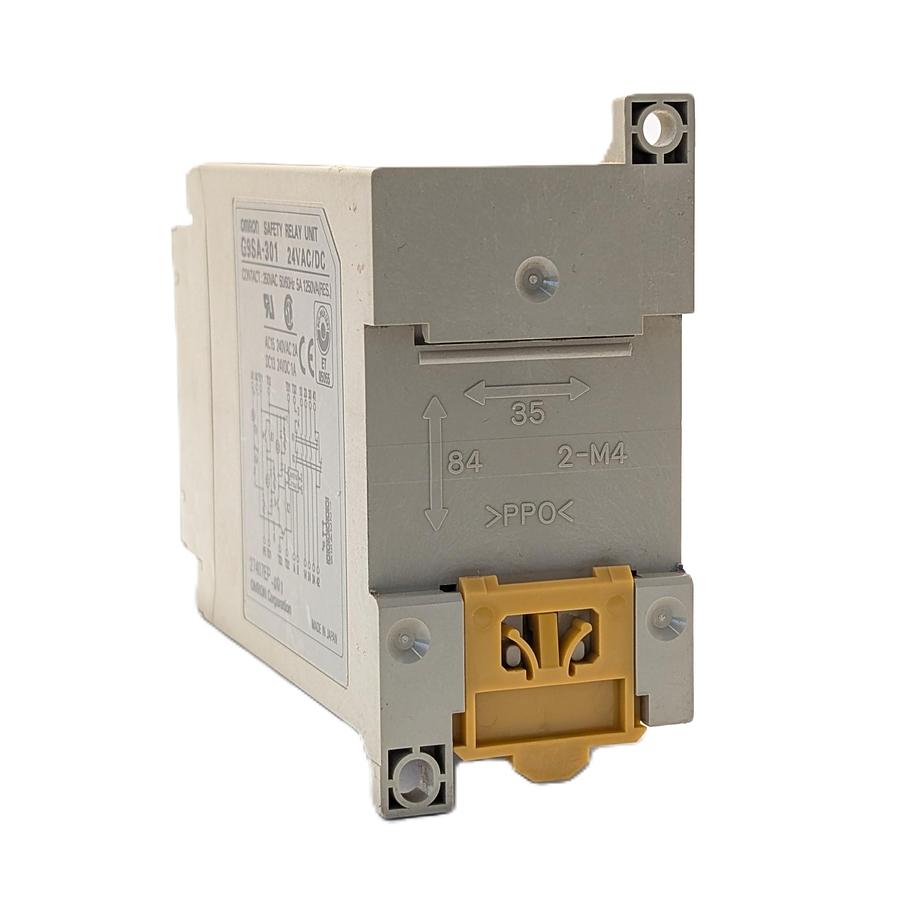

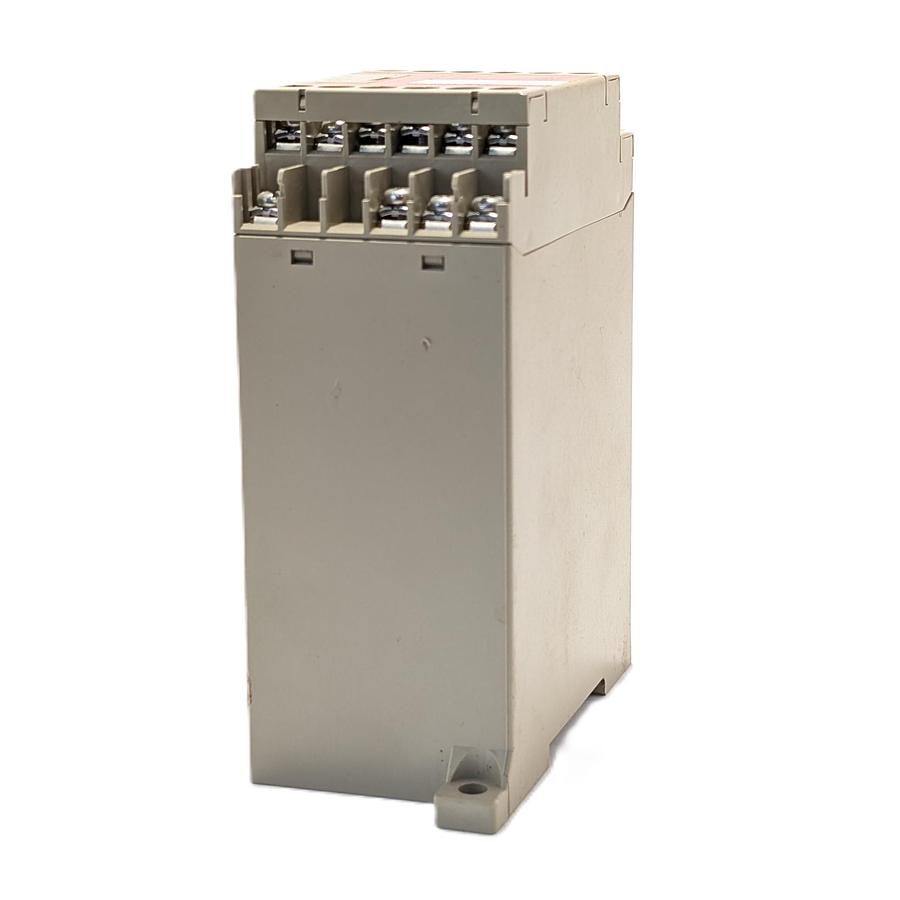

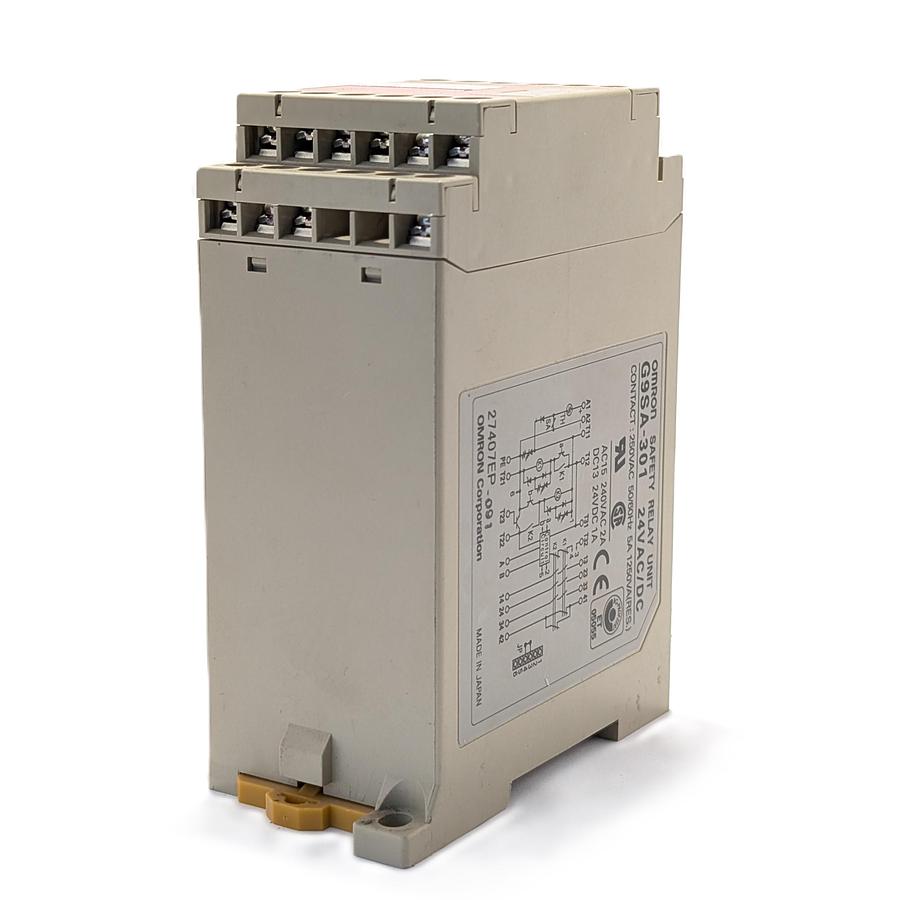

Omron G9SA

Key Characteristics – Omron G9SA Safety Relay

• Relay Type: Electromechanical safety relay
• Model: G9SA
• Number of Contacts: 2 safety contacts, normally open (NO) or as per variant
• Supply Voltage: 24 V AC/DC (standard model; other voltages available depending on reference)
• Contact Current Rating: Up to 5 A (varies by specific model)
• Response Time: Approximately 10 ms
• Mounting: DIN rail or socket base
• Contact Type: Positively guided (forced-guided) contacts for enhanced safety
• Functions: Emergency stop monitoring, light curtain control, machine protection
• Operating Temperature: -10 °C to +55 °C
• Certifications: Compliant with EN ISO 13849-1, IEC 62061, SIL 3, Performance Level e (PL e)
• Dimensions: Compact, typically around 22.5 mm wide
• Indicators: Some models include diagnostic LEDs for easy status monitoring
• Typical Applications: Industrial automation, machine safety, operator protection system
