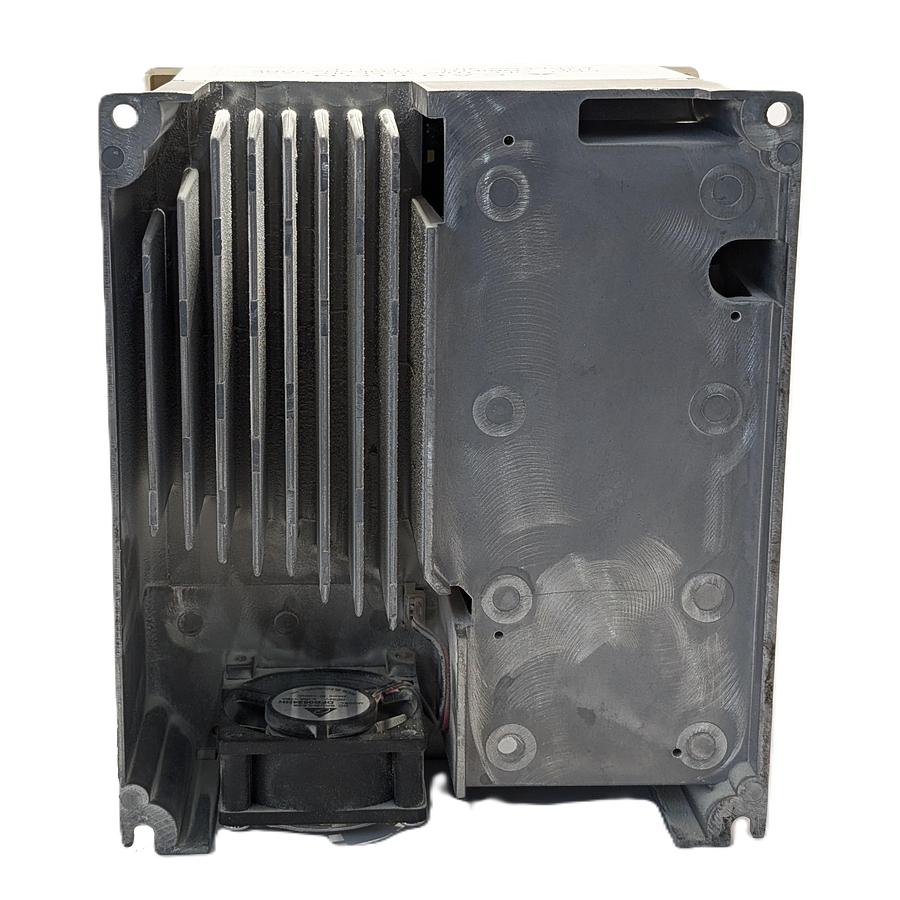

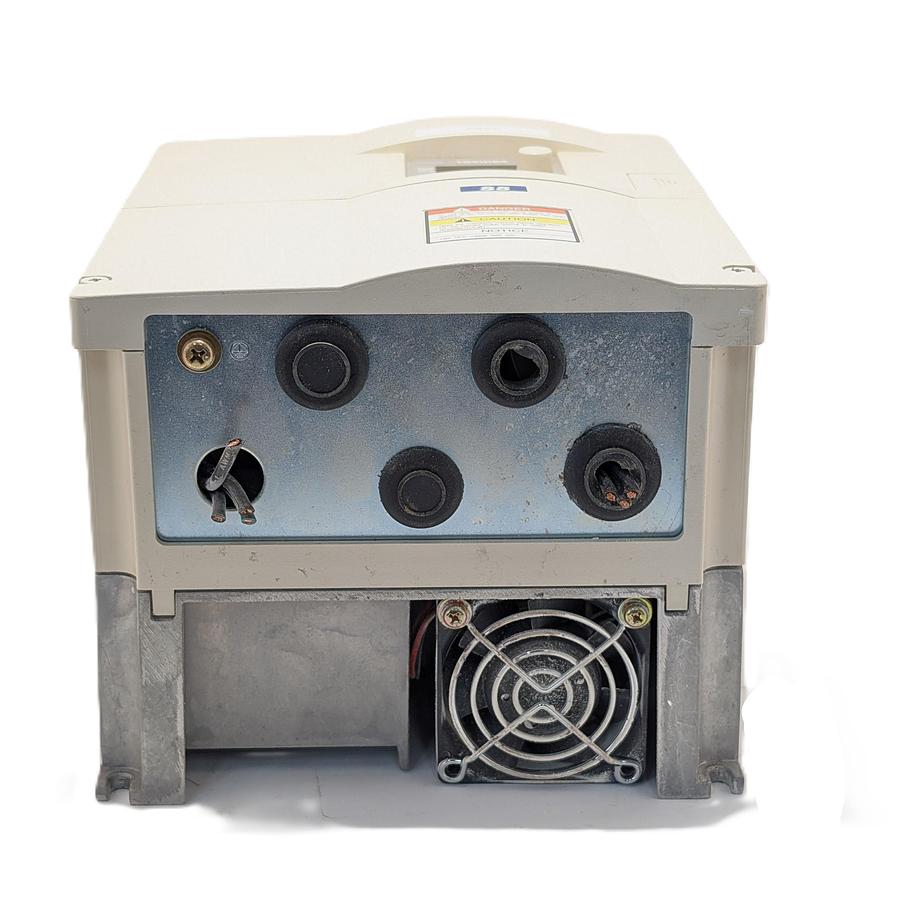

TOSHIBA VFS5-5040UPH

🔧 Toshiba VFS5-5040UPH Variable Frequency Drive – Specifications

• Model: VFS5-5040UPH
• Series: VFS5 Series
• Manufacturer: Toshiba
• Input Voltage: 3-phase, 400 V AC ±10%
• Input Frequency: 50/60 Hz
• Output Voltage: 3-phase, 0 – rated voltage (400 V)
• Output Frequency: 0.1 – 400 Hz
• Output Current: 40 A
• Power Rating: 22 kW (30 HP)
• Control Method: V/f Control (Voltage/Frequency) and Vector Control (Open loop)
• Carrier Frequency: Adjustable, typically 2 kHz to 8 kHz
• Cooling Method: Forced air cooling
• Protection: Overcurrent, overvoltage, undervoltage, overheat, and ground fault protection
• Communication: Optional Modbus RTU, CANopen, Profibus, DeviceNet (depending on model options)
• Dimensions (approx.): 400 mm (H) x 260 mm (W) x 190 mm (D)
• Weight (approx.): 11.5 kg

⚙️ Key Features

• High performance vector control for precise motor operation
• Compact design for easy installation
• Built-in PID controller for process control
• Multi-step speed settings and jog functions
• Multiple protective functions to ensure safe operation
• User-friendly interface with LCD display and keypad
• Energy-saving functions and adjustable carrier frequency to reduce noise and heat

🛠️ Typical Applications

• Pumps and fans
• Conveyors and material handling
• Machine tools
• Textile machinery
• Packaging equipment
• HVAC systems
