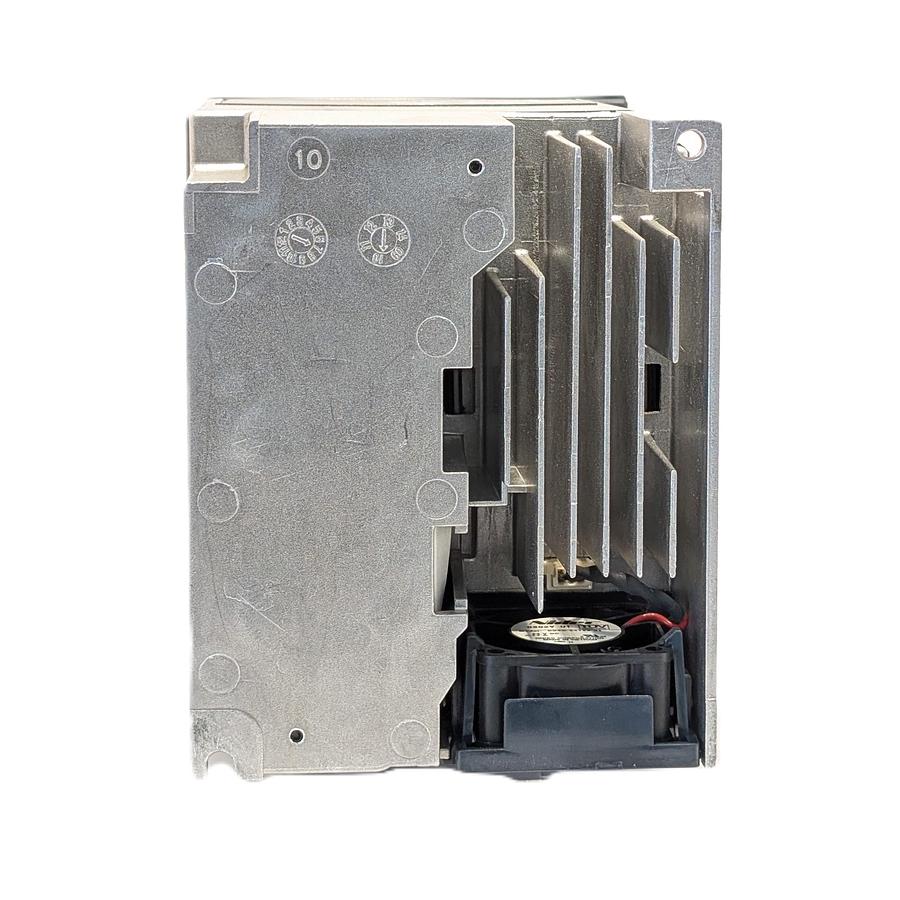

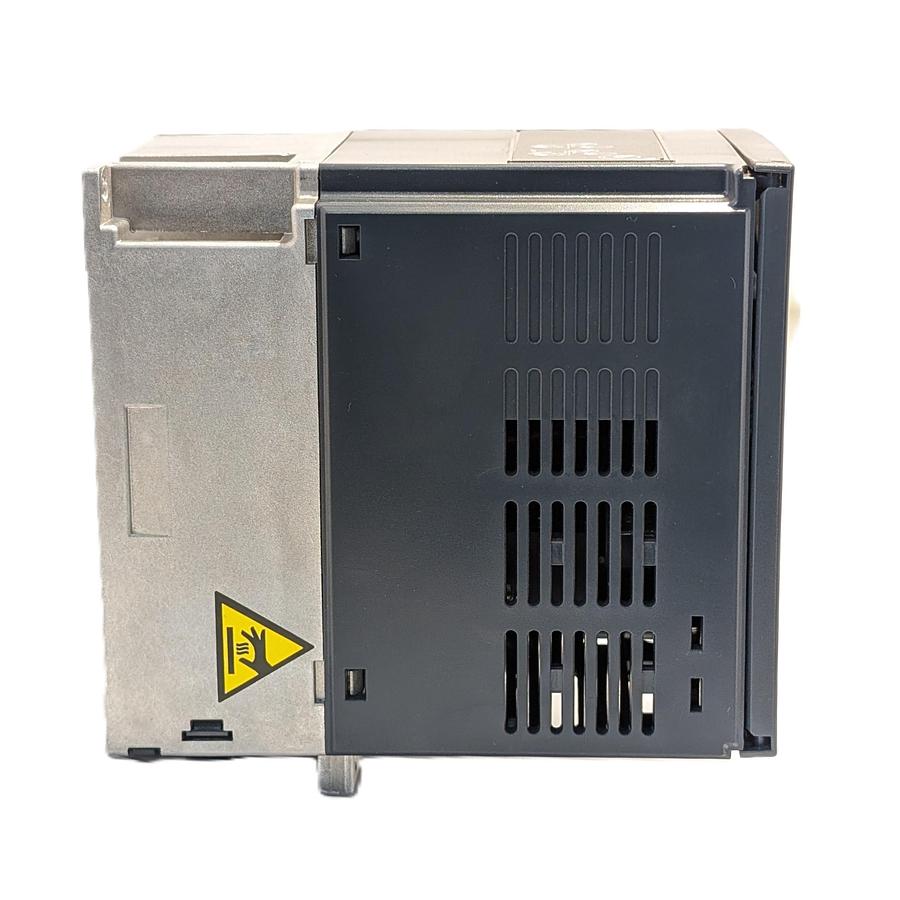

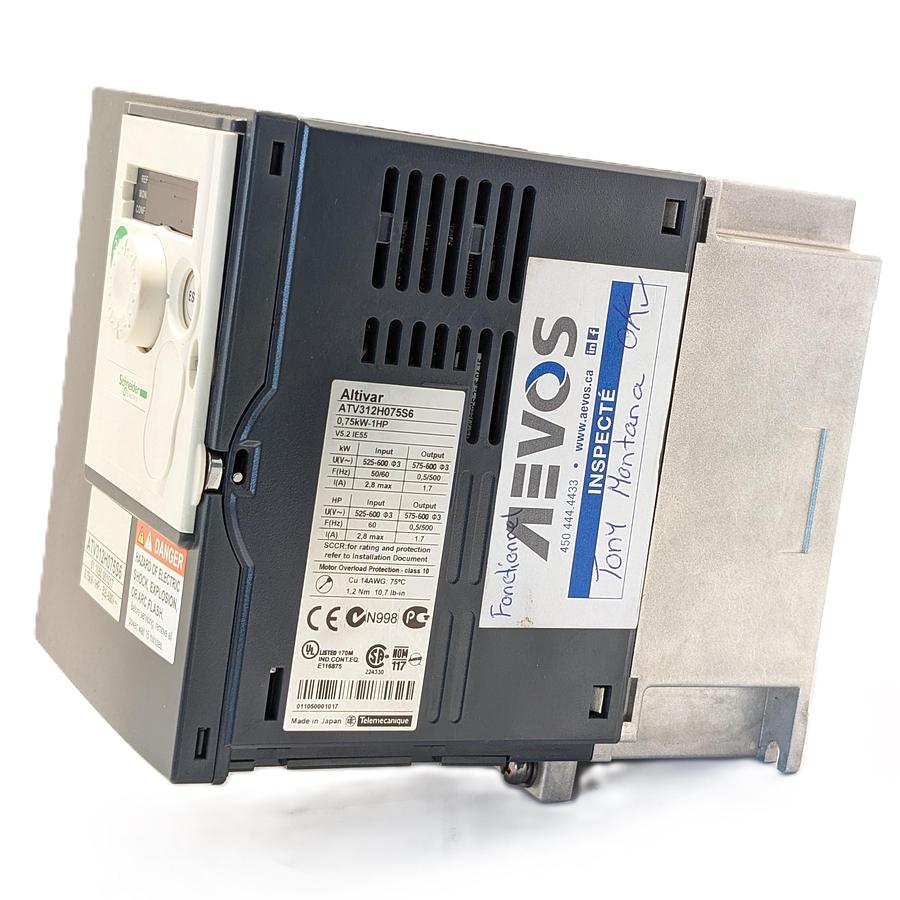

TELEMECANIQUE ALTIVAR ATV312H075S6

🔧 Technical Specifications

• Product Type: Altivar 312 Variable Frequency Drive
• Rated Power: 0.75 kW (1 HP)
• Input Voltage: 525–600V AC, three-phase
• Input Current: 2.4 A
• Output Frequency: 0–500 Hz
• Output Current: 1.7 A
• Protection Rating: IP20
• Dimensions (H x W x D): 107 mm x 143 mm x 158 mm
• Weight: 1.7 kg (approx. 3.7 lbs)
• Operating Temperature: -10°C to +50°C
• Relative Humidity: Up to 95%, non-condensing
• Warranty: 2 years

🔁 Control Features and Capabilities

• Sensorless Vector Control (SVC)
• V/Hz Control (constant and variable torque)
• Auto-tuning for optimized motor performance
• Digital Inputs: 6
• Analog Inputs: 3
• Digital Outputs: 2 (including 1 relay output)
• Analog Outputs: 2
• Communication Interface: RS485
• Supported Protocols: Modbus, CANopen, DeviceNet, Profibus-DP
• PC Connectivity: USB/RJ45 or SD card (via Multi-Loader tool)
• Display: 4-digit LED screen
• Integrated EMC filter: Class 2
• Mounting Options: DIN rail or panel mount
• Software: SoMove for setup and monitoring

⚙️ Recommended Applications

The ATV312H075S6 is suitable for:

• Conveyor systems
• Pumps and fans
• Textile machinery
• Custom industrial machinery
• Any application requiring precise speed and torque control
