Lenze AC Tech SMVector ESV402N06TXB

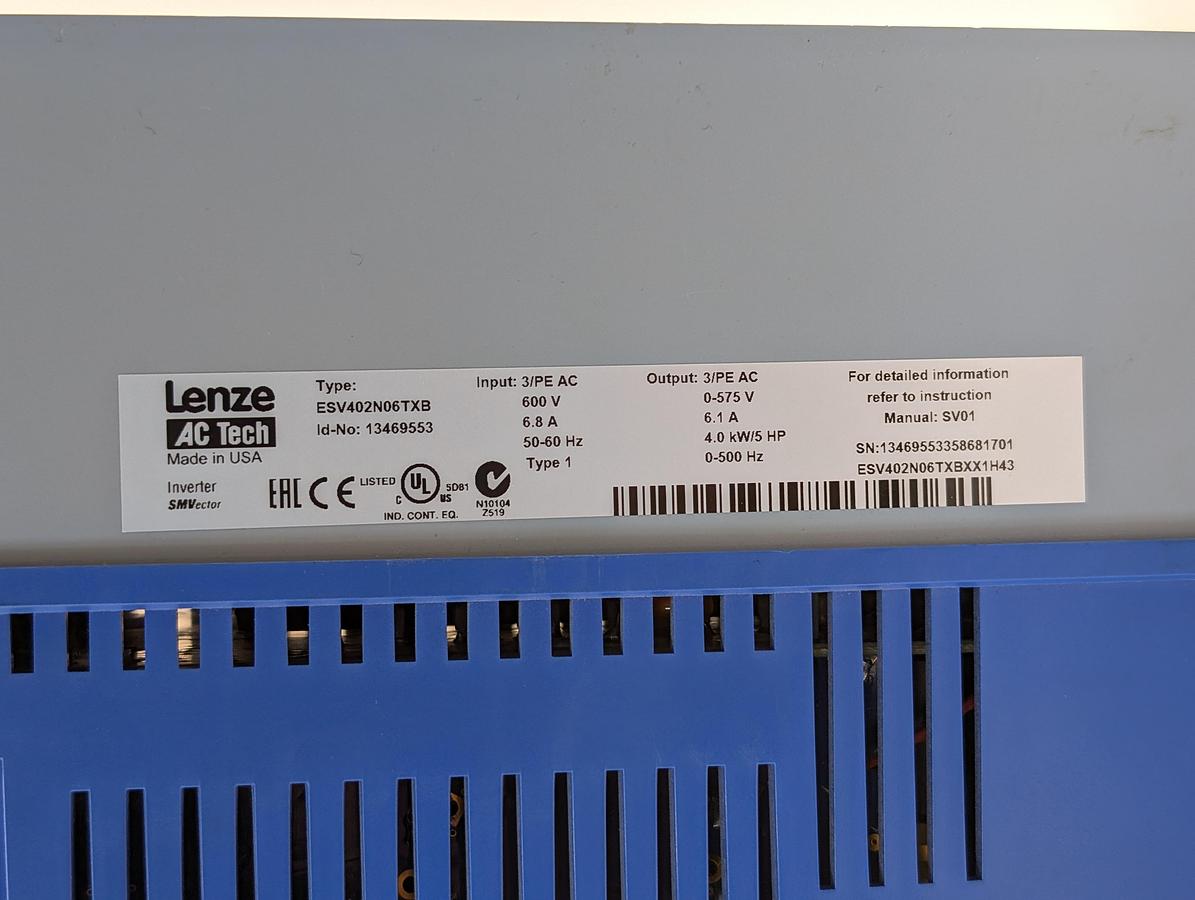

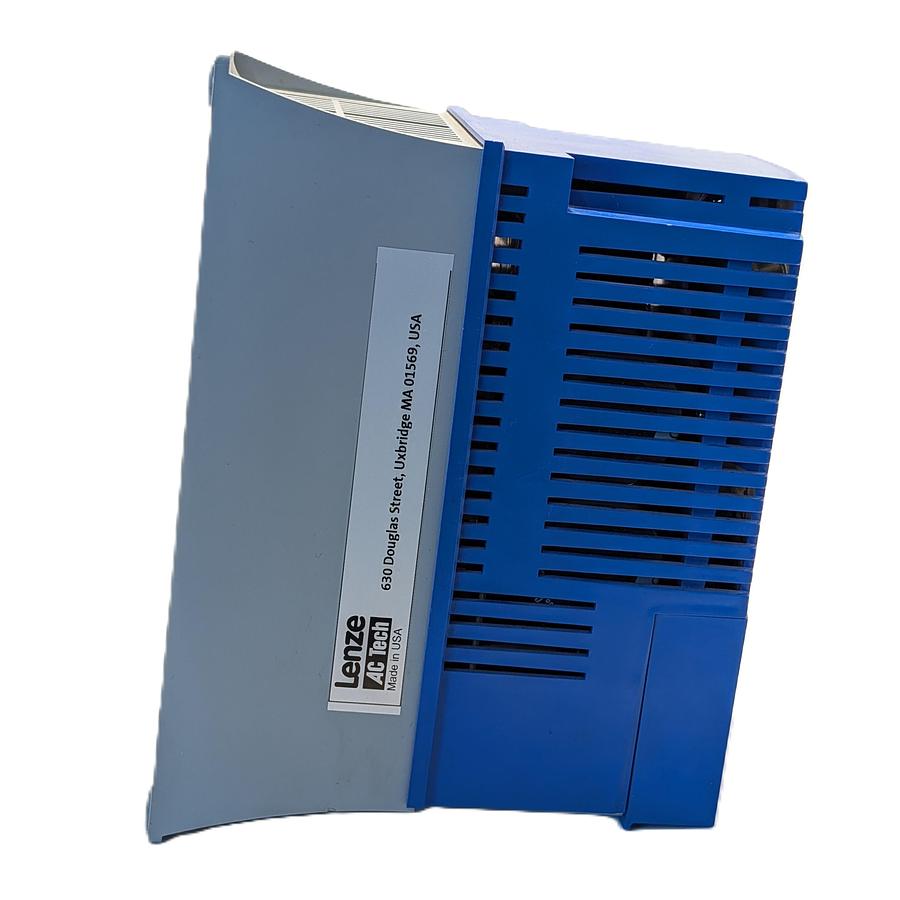

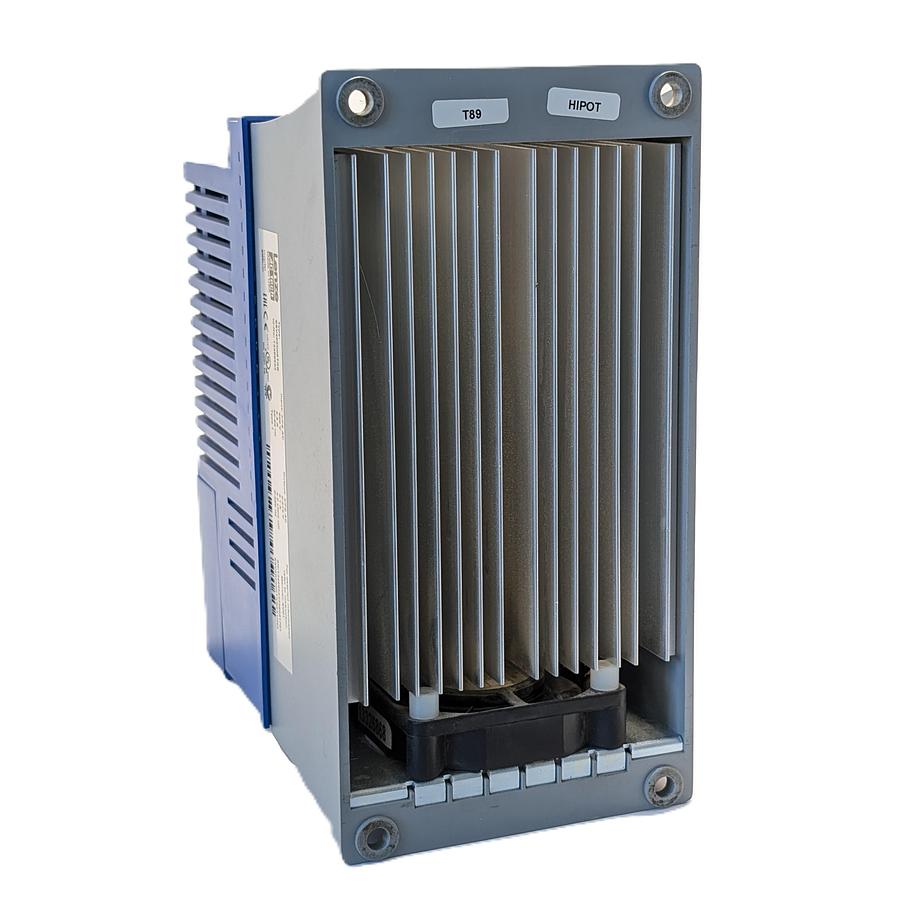

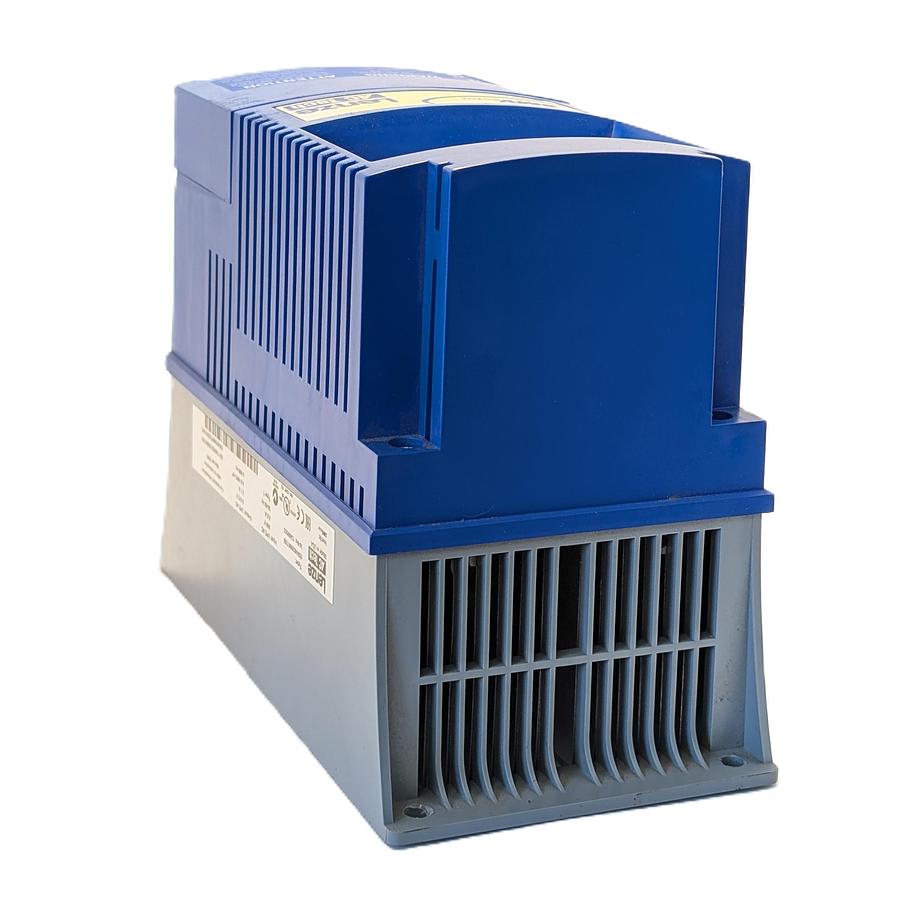

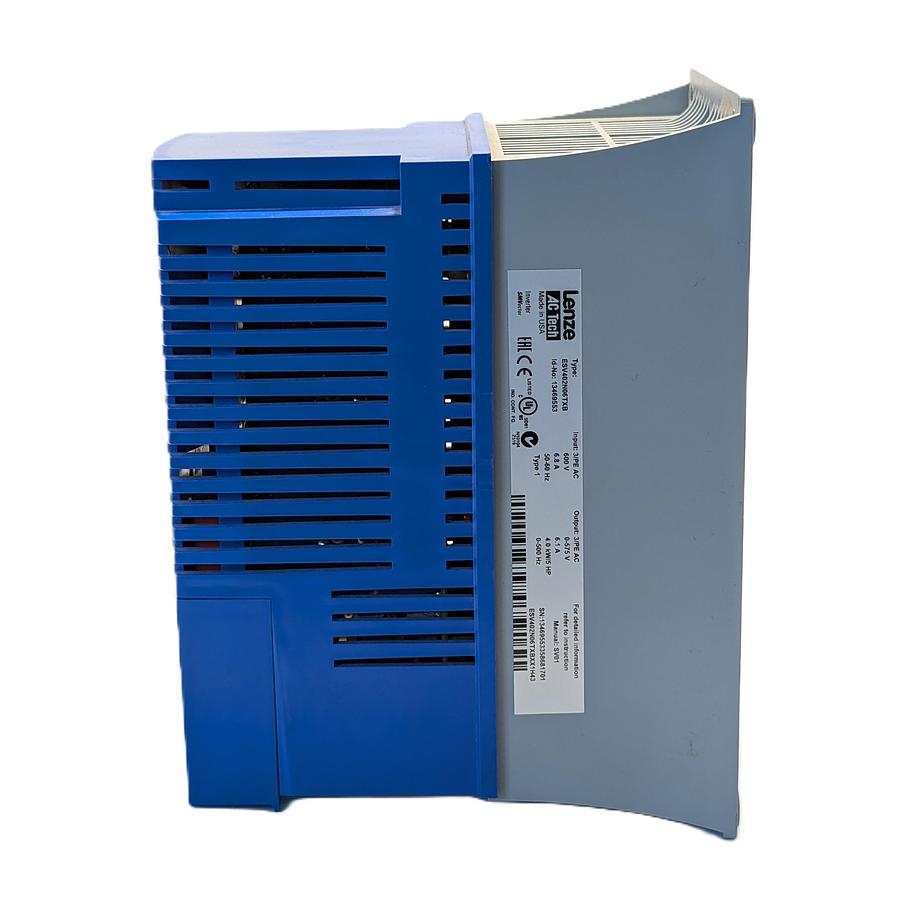

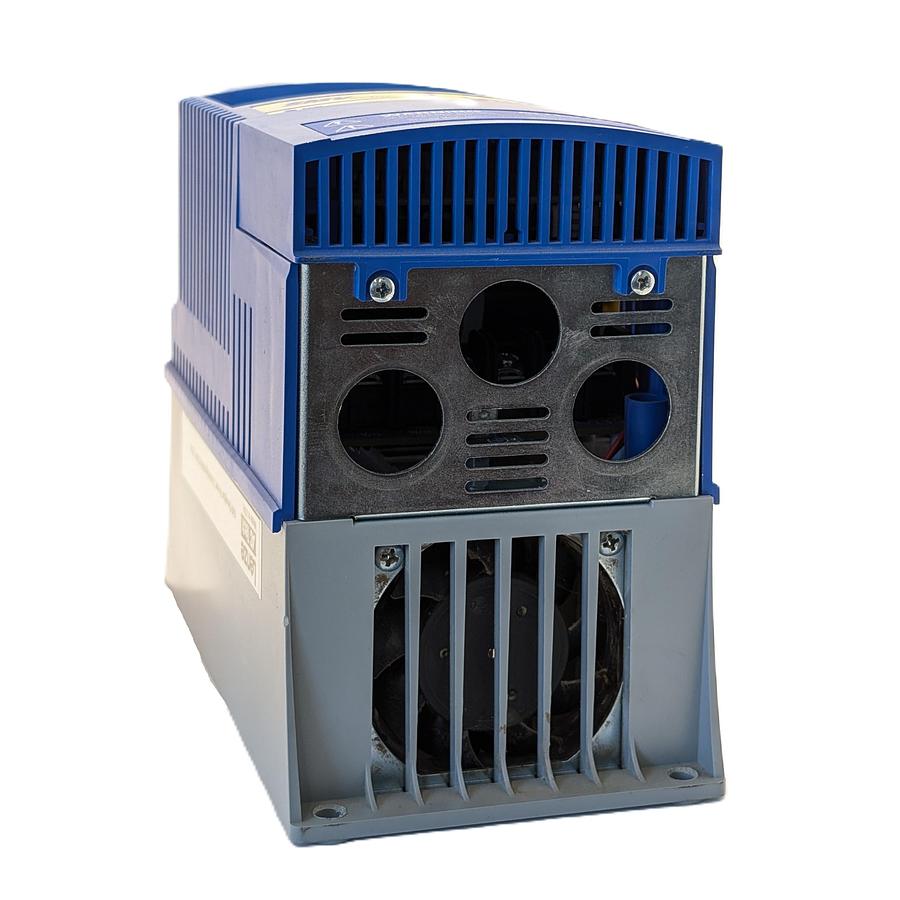

Lenze AC Tech SMVector drive, model ESV402N06TXB:

🔧 Technical Specifications

• Product Type: SMVector Variable Frequency Drive
• Power Rating: 5 HP (4 kW)
• Input Voltage: 540–600V AC, three-phase
• Output Voltage: 600V AC, three-phase
• Output Current: 6.1 A
• Output Frequency Range: 0–500 Hz
• Enclosure Type: NEMA 1 (IP31)
• Dimensions (H x W x D): 191 mm x 99 mm x 147 mm
• Weight: 2.9 kg (approx. 6.4 lbs)
• Operating Temperature: -10°C to +55°C
• Warranty: 2 years

🔁 Control Features and Functions

• Sensorless Vector Control (Open Loop Flux Vector)
• V/Hz control (constant and variable torque)
• Auto-tuning capability
• Digital Inputs: 4 (NPN type)
• Digital Outputs: 1 NPN, 1 Form C relay
• Analog Inputs: 1 x 0–10 VDC, 1 x 4–20 mA
• Analog Output: 1 x 0–10 VDC
• Auxiliary Supply: 10 VDC (potentiometer reference), 12 VDC (for digital inputs, 20 mA)
• Built-in EPM memory module for fast programming and easy drive replacement

⚙️ Recommended Applications

The ESV402N06TXB model is suitable for:

• Conveyor systems
• Food processing machinery
• Automated production lines
• HVAC systems
• Applications requiring precise speed and torque control
