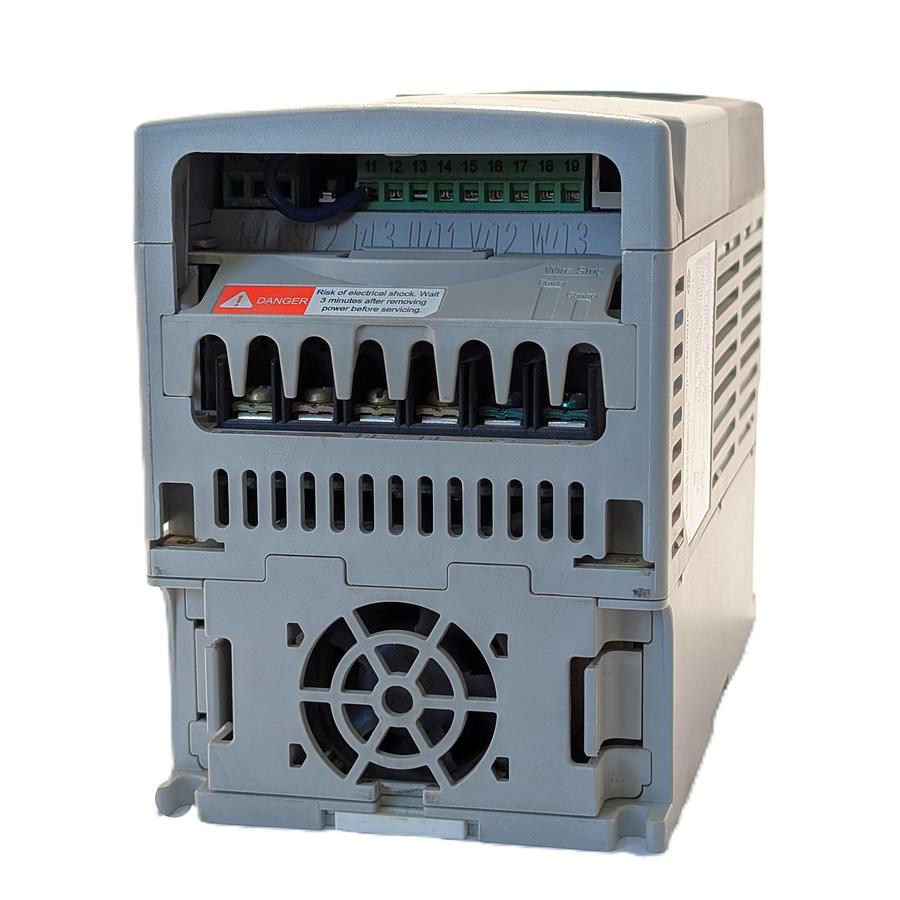

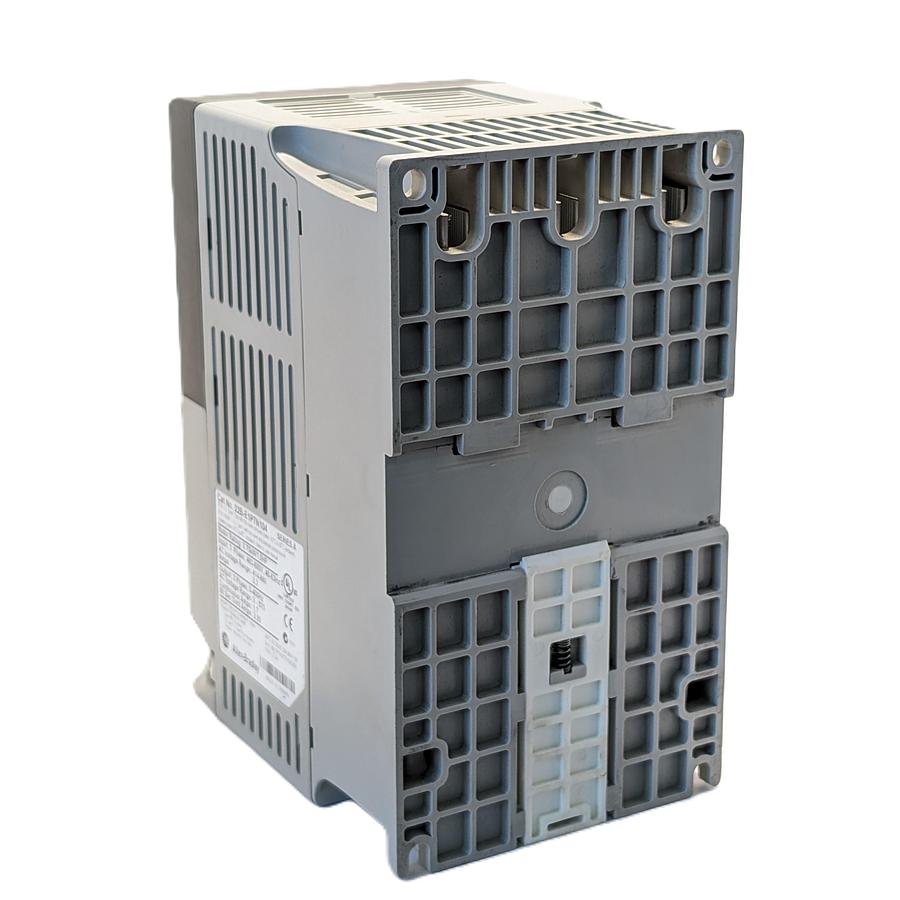

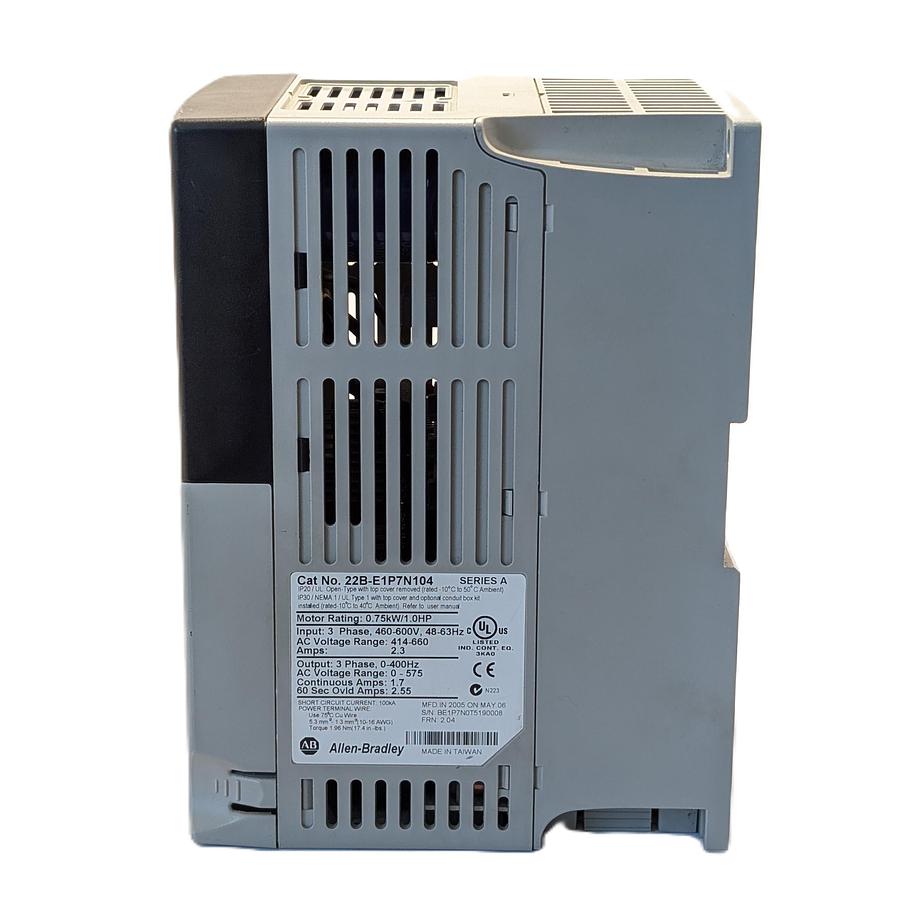

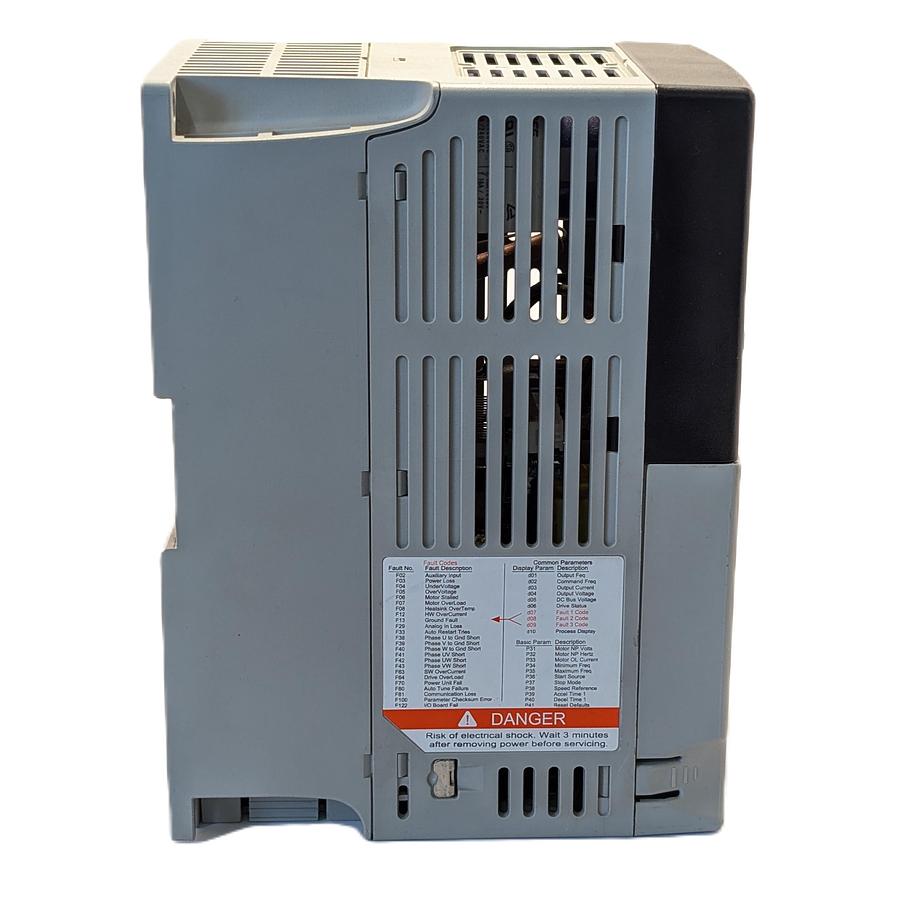

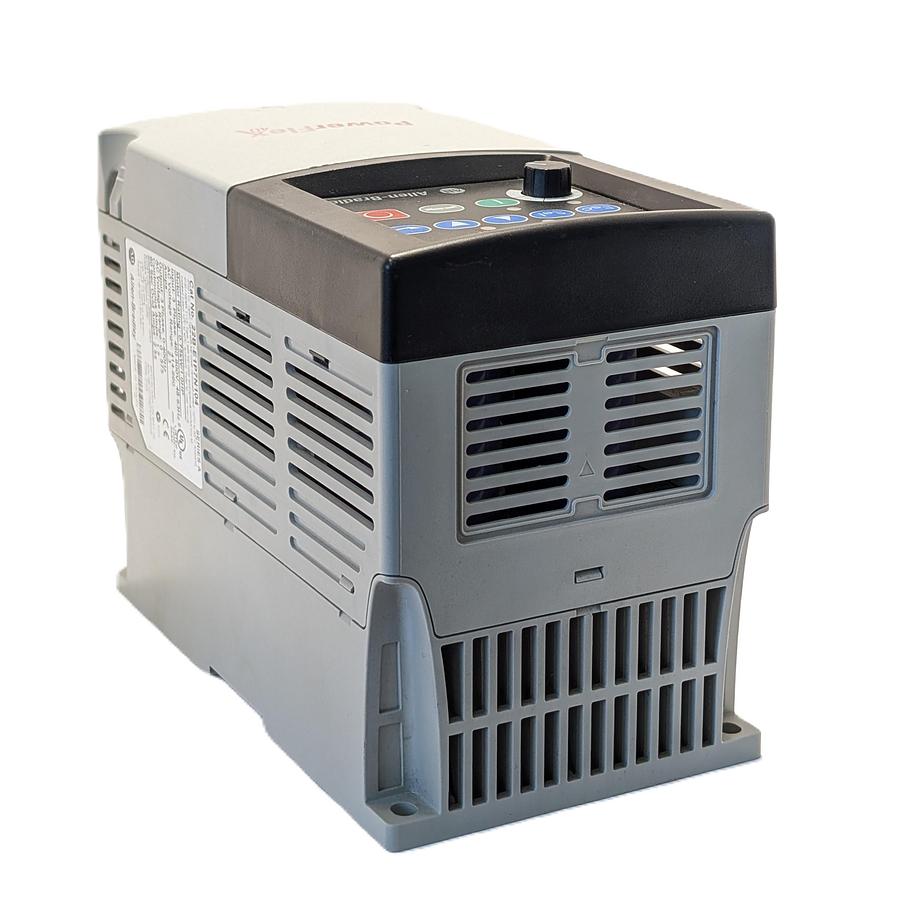

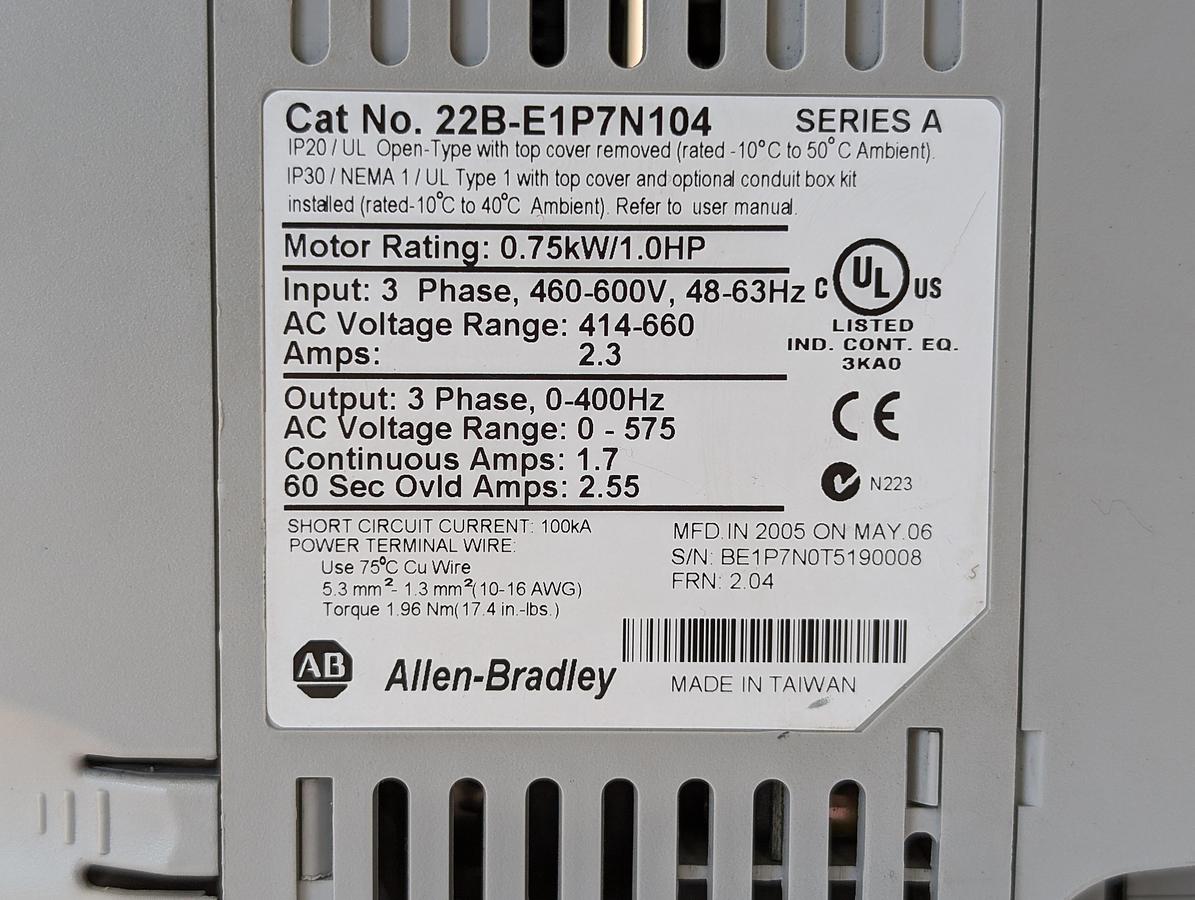

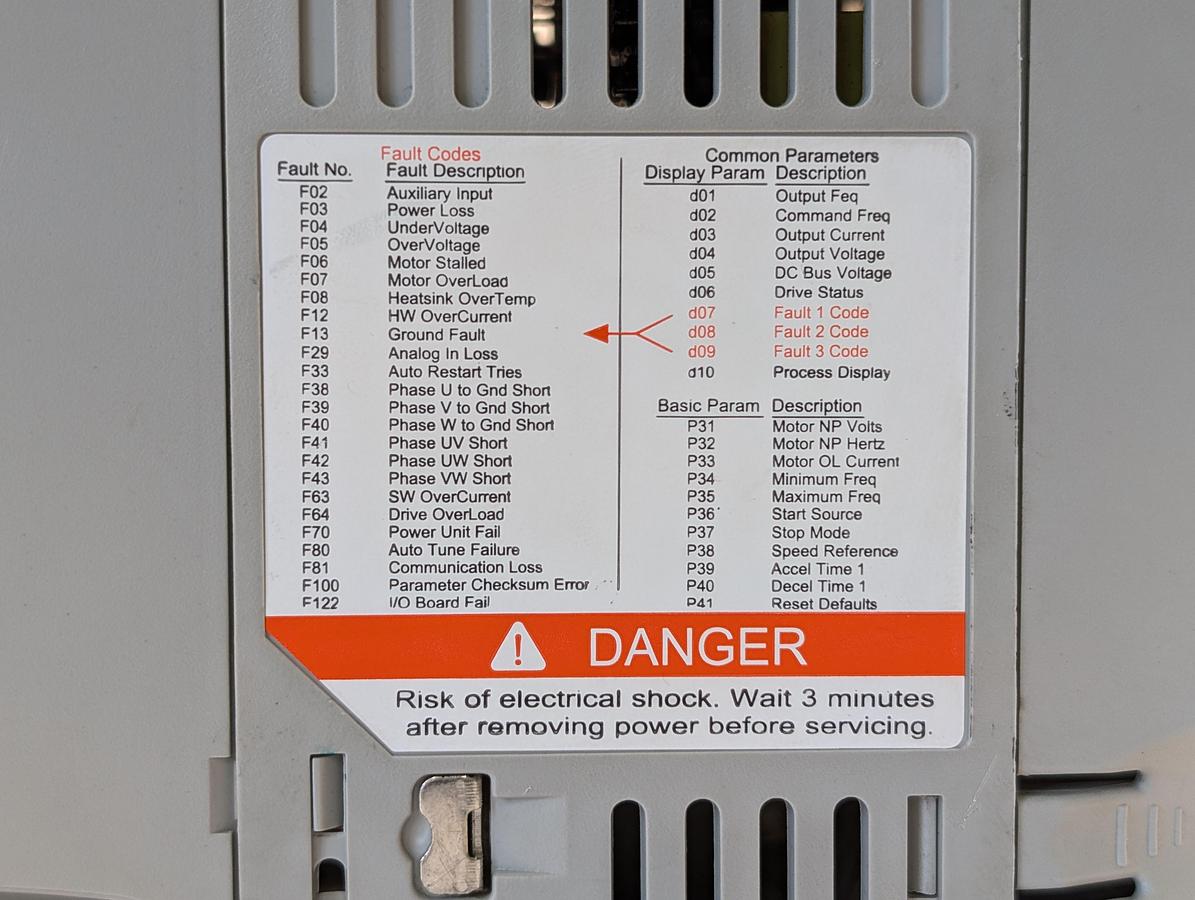

Allen-Bradley 22B-E1P7N104, série A :

🔧 Technical Specifications

• Product Type: PowerFlex 40 AC Drive
• Power Rating: 0.75 kW (1 HP)
• Input Voltage: 600V AC, three-phase
• Frequency: 50–60 Hz
• Output Current: 1.7 A
• Power Factor: 0.98
• User Interface: Numeric keypad with LED display
• Communication: RS485 (Modbus RTU)
• Mounting Type: Panel mount (Open type enclosure)
• Protection Rating: IP20 (NEMA Type Open)
• Dimensions (W x H x D): 100 x 180 x 136 mm
• Weight: 2.2 kg
• Operating Temperature: -10°C to +50°C
• Storage Temperature: -40°C to +85°C

🔁 Advanced Features

• Volts/Hertz and Sensorless Vector Control
• Built-in PID control
• 3 analog inputs, 7 digital inputs
• 1 analog output, 2 digital outputs, 1 relay output
• Overload protection, flying start capability
• Compatible with DriveTools SP and DriveExplorer software
• Integration with Logix systems via RSLogix 5000
• Optional communication modules: ControlNet, EtherNet/IP, Profibus-DP, LonWorks
