Hubbell HBL2723

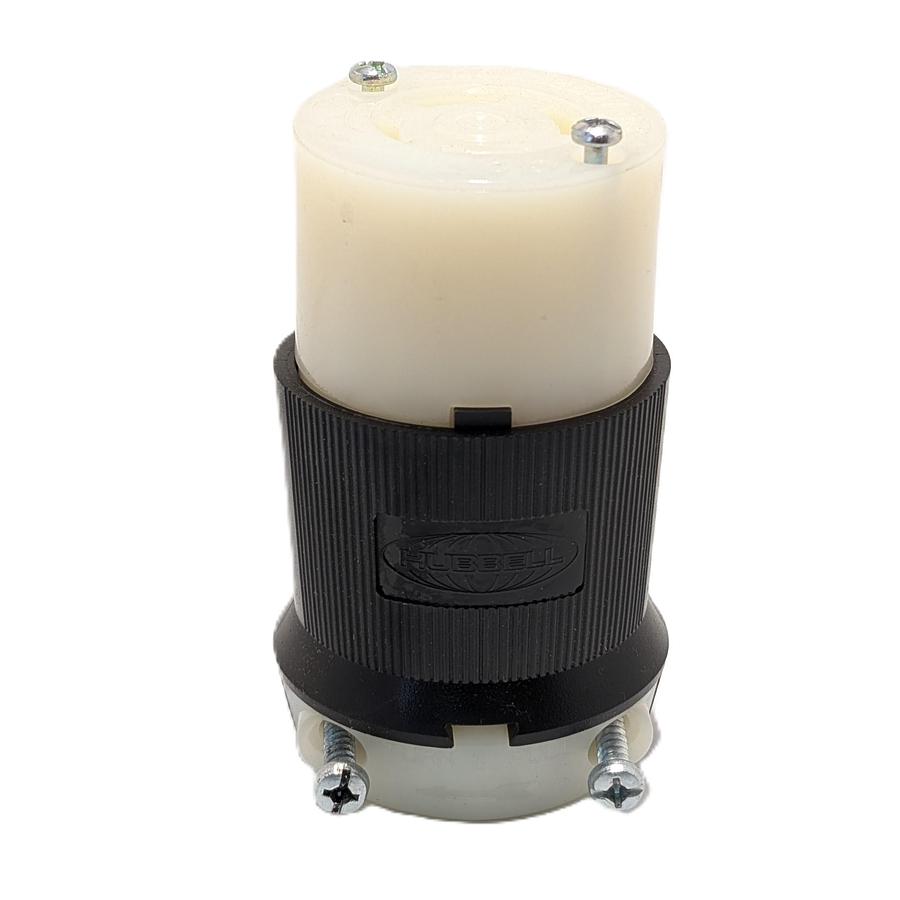

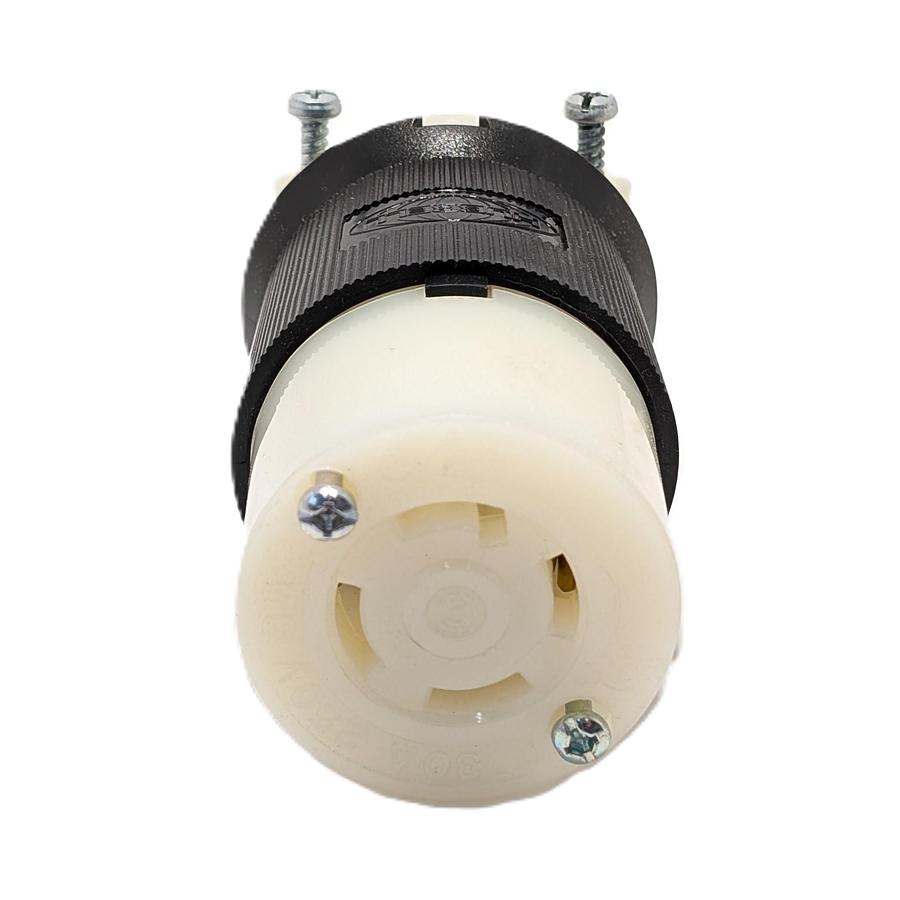

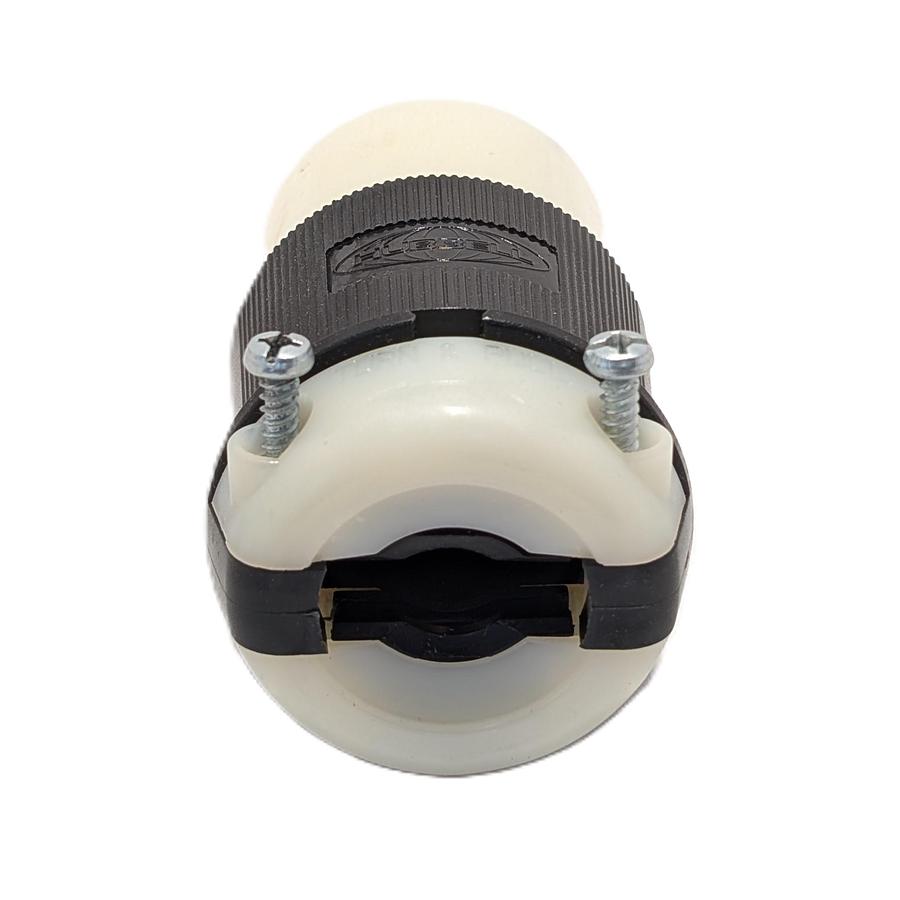

Hubbell HBL2723 – Twist-Lock® Female Connector, 30A 250V

Key Technical Specifications

• Type: Twist-Lock® industrial-grade female connector (Insulgrip® series)
• Amperage: 30 Amps
• Voltage Rating: 250 Volts AC, 3-phase delta
• Poles: 3
• Wires: 4 (including ground)
• Cable Range: 0.350" to 1.150" (approx. 9 mm to 29 mm)
• Operating Temperature:
• Max continuous: 75°C (167°F)
• Min: -40°C (-40°F) without impact
• Materials:
• Body and cord clamp: Nylon (impact and chemical resistant)
• Terminal screws: Nickel-plated steel
• Contacts: Brass
• Clear terminal barrier: Polycarbonate
• Environmental Protection: IP20 (non-watertight)
• Mounting Style: Cable mount / plug-in
• Certifications:
• UL Listed (UL 498)
• CSA Certified (C22.2 No. 42)
• RoHS Compliant
• Federal Spec: W-C-596
• NEMA Configuration: L15-30R (3-pole, 4-wire grounding)
• Dimensions: Approx. 2.33" (H) x 2.33" (W) x 3.86" (D) or 59.2 x 59.2 x 98.0 mm
• Weight: Approx. 0.18 kg (0.40 lb)
• Typical Applications:
• Industrial machinery
• Commercial electrical installations
• High-voltage three-phase equipment
