E.BLOXX A6-2CF-2

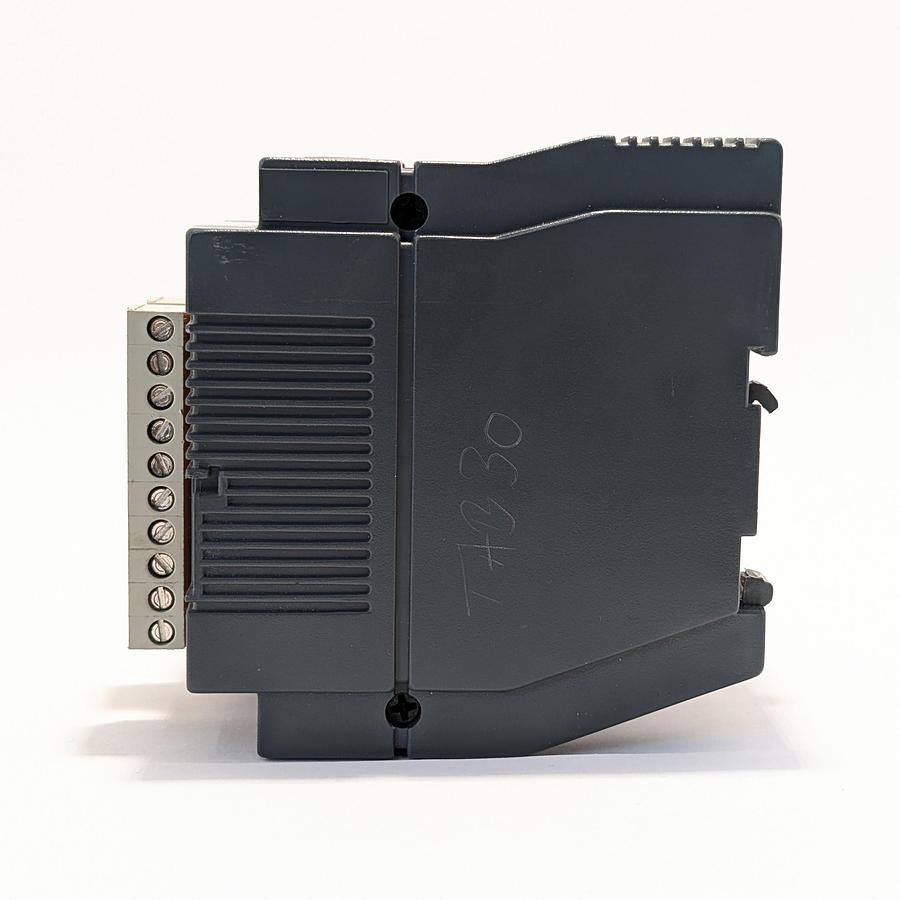

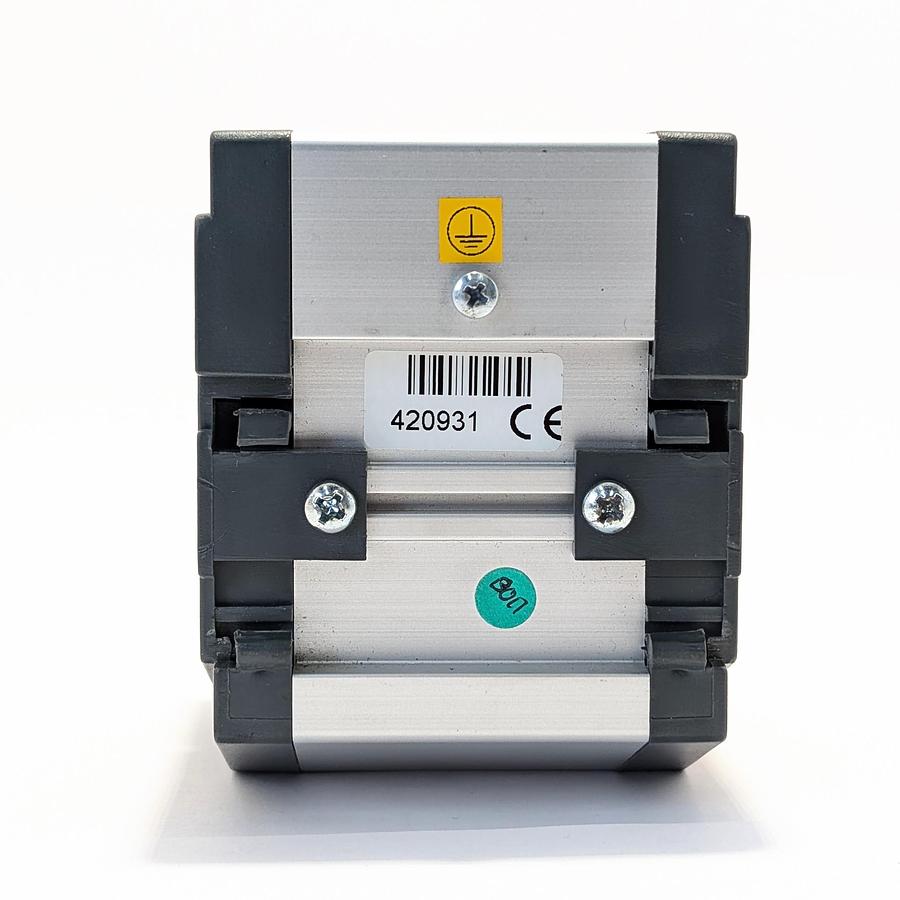

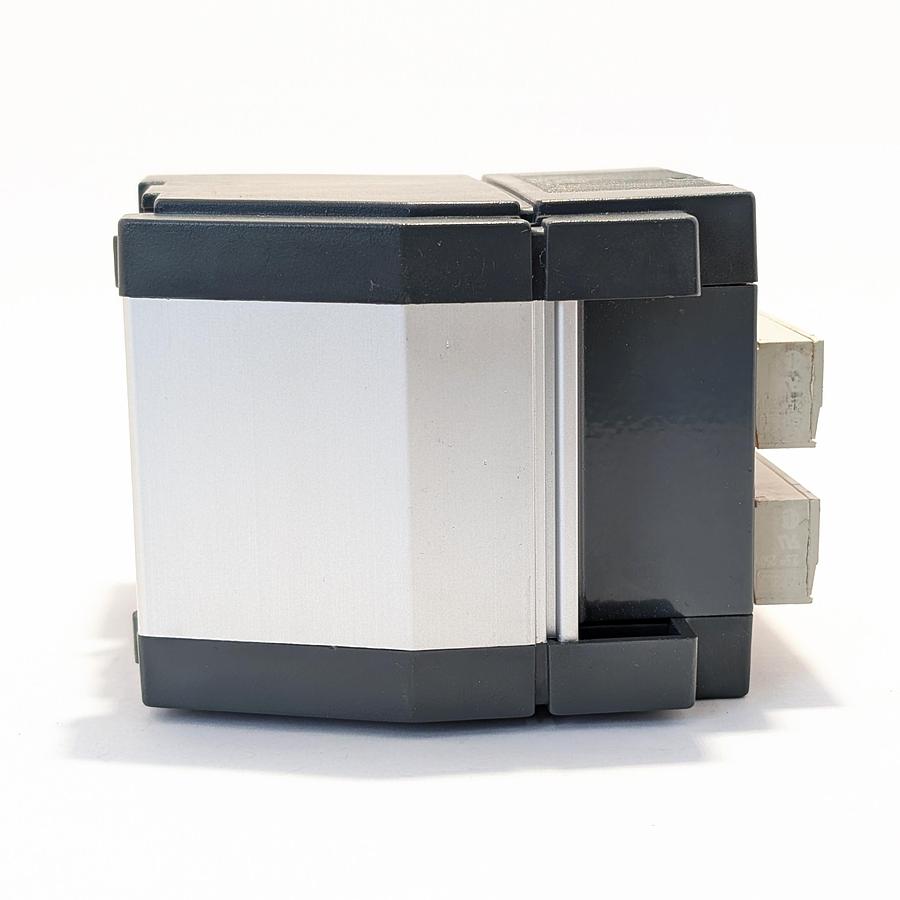

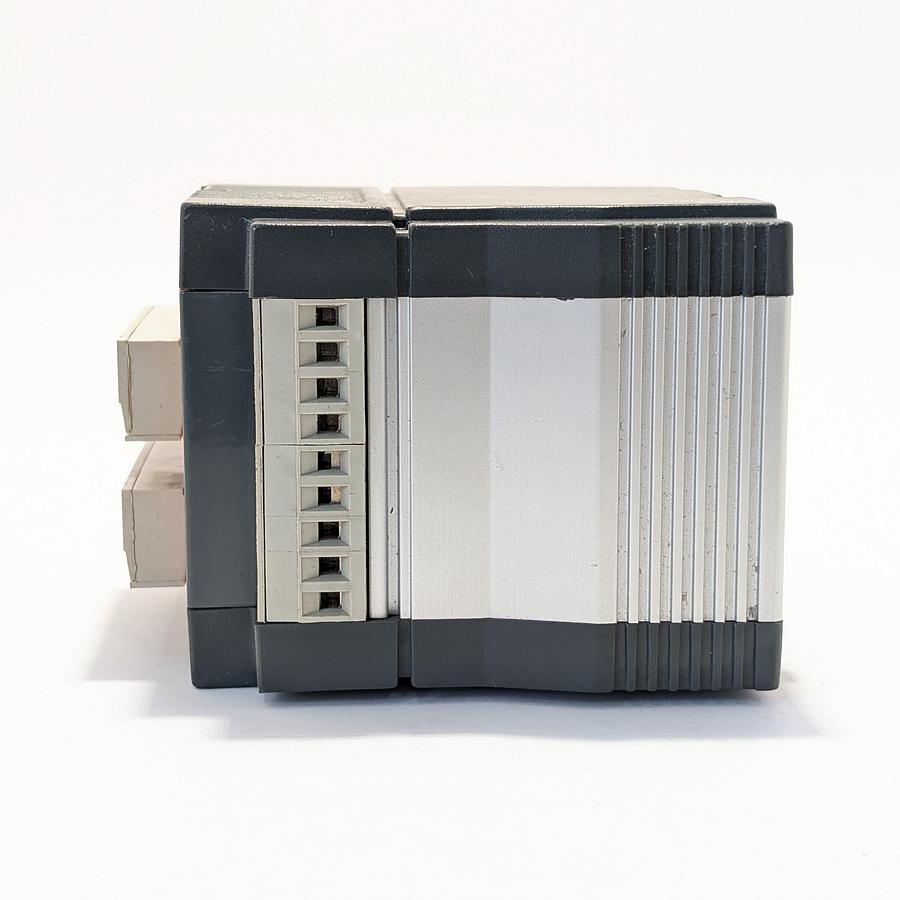

e.bloxx A6-2CF Acquisition Module – 2 Gauge Bridge Inputs – Used

Description :

The e.bloxx A6-2CF is a high-precision data acquisition module designed for measuring signals from strain gauges, inductive sensors or LVDTs. It is ideal for industrial test benches requiring fast and reliable acquisition.

Main Features :

Analog inputs: 2 channels for gauge bridge sensors (quarter, half and full bridge), LVDT or inductive

A/D conversion: 19 bits for high resolution

Carrier frequency: 4.8 kHz with 2.5 VRMS excitation, reducing noise and improving signal stability

Communication interface: RS485 with PROFIBUS DP protocols (up to 1.5 Mbit/s), Modbus-RTU and ASCII-Gantner

Mounting: On 35 mm DIN rail, facilitating integration into modular systems

Configuration: Via Gantner Instruments ICP 100 software

Typical applications:

Test benches for engines and mechanical components

Stress and vibration measurements

Distributed industrial monitoring

Integration into modular data acquisition systems
