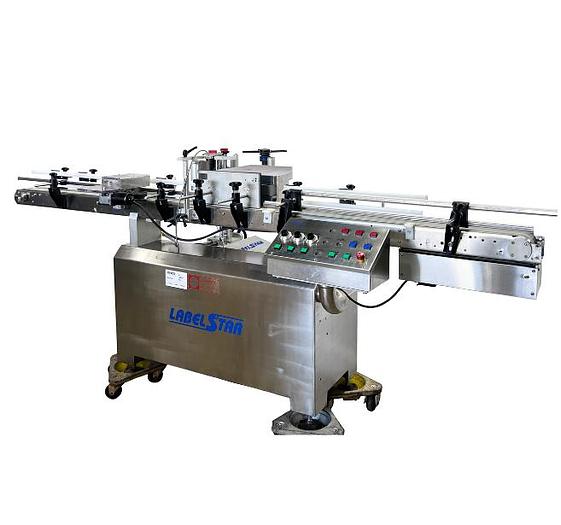

CAPMATIC LABEL STAR SYSTEM 1DX - Automatic labeler
CAPMATIC LABEL STAR SYSTEM 1DX - Automatic labeler
Available quantity:1
or
Call 450-444-4433
Description
The machine is designed to apply labels on various surfaces, such as plastic, glass, or aluminum. Its "wrap-around" system ensures the label is applied evenly and precisely, wrapping completely around the object.
Specifications
| Manufacturer | CAPMATIC |
| Year | 1997 |
| Condition | Used |
| Serial Number | LS97080409 |
| Stock Number | NS01 |
| Power supply | 120V 1Ph 60Hz 7Amps |
| Air supply | 10 CFM @ 100 PSI |
| Production speed | Up to 40 containers/minute (Depending on container size, label length & conveyor speed) |
| Maximum label height | 5.5'' |
| Maximum label lenght | 15'' |
| Maximum container diameter | 4.5'' |
| Inner diameter of the label roll core | 3'' (76mm) |
| Maximum outside diameter of the label roll | 12'' |
| Applicable label unwind direction → Outer position | Left side first |
| Conveyor belt type | Urethane belt |
| Conveyor dimensions (W x L x H) | 4'' x 108'' x 36'' (Adjustable height) |
| Overall dimensions (L x W x H) | 110'' x 58'' x 44'' |
| Weight | 400 Lbs |
