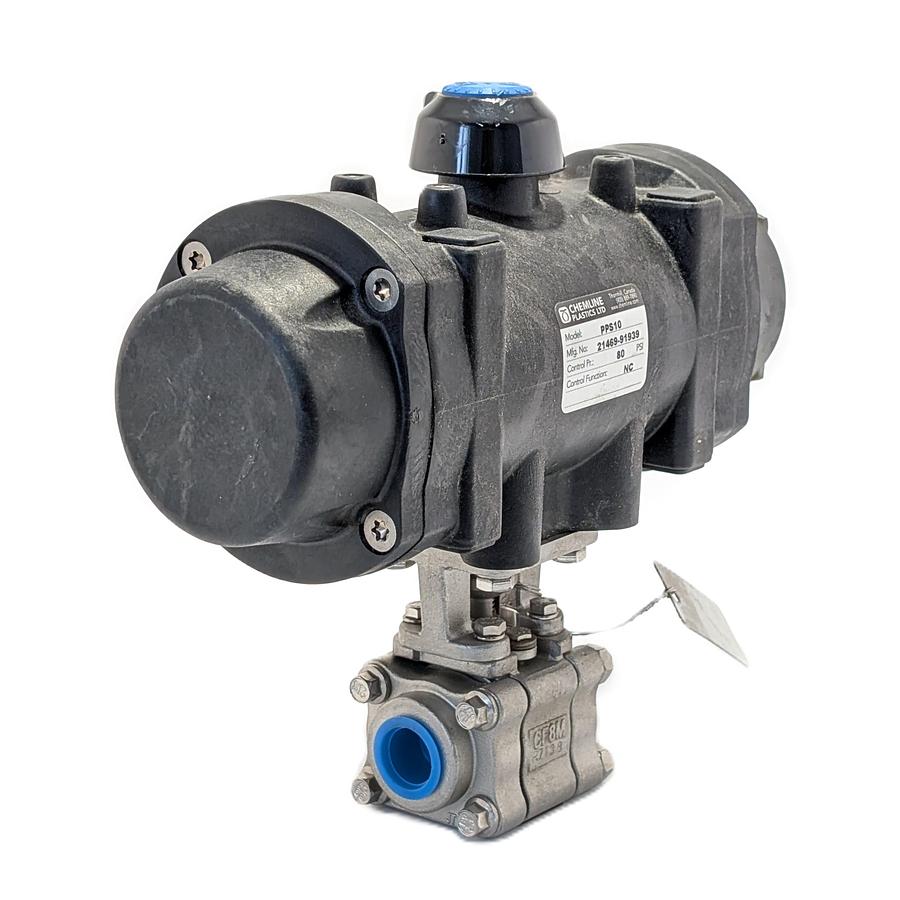

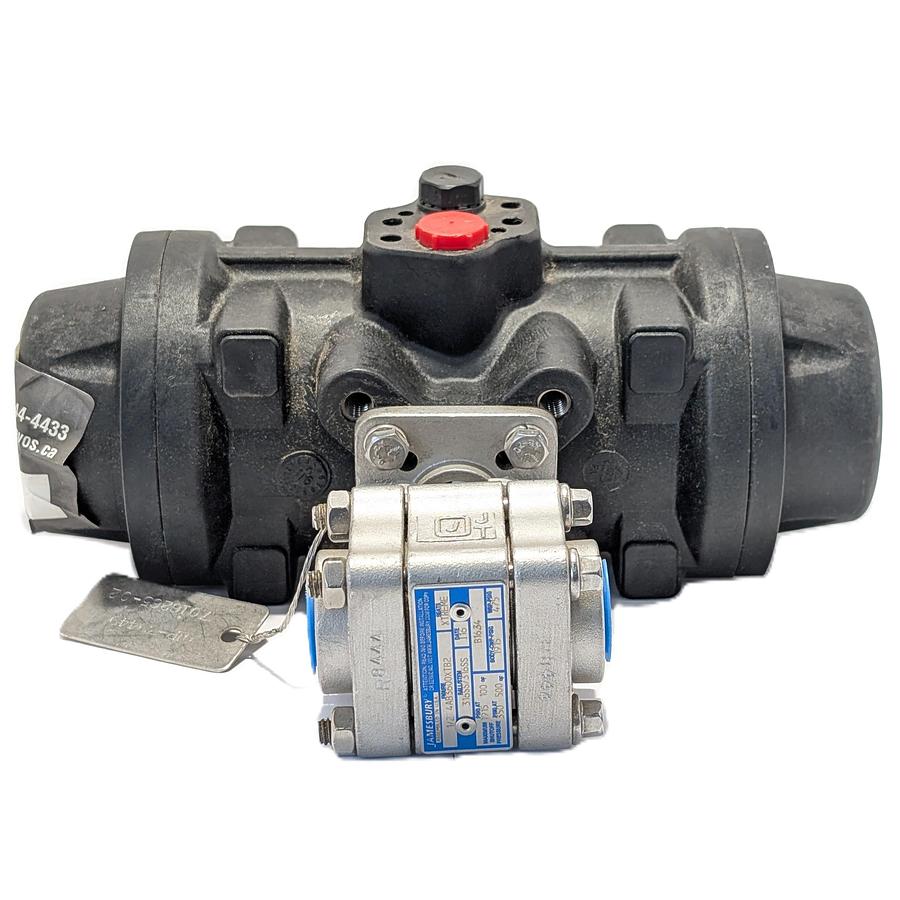

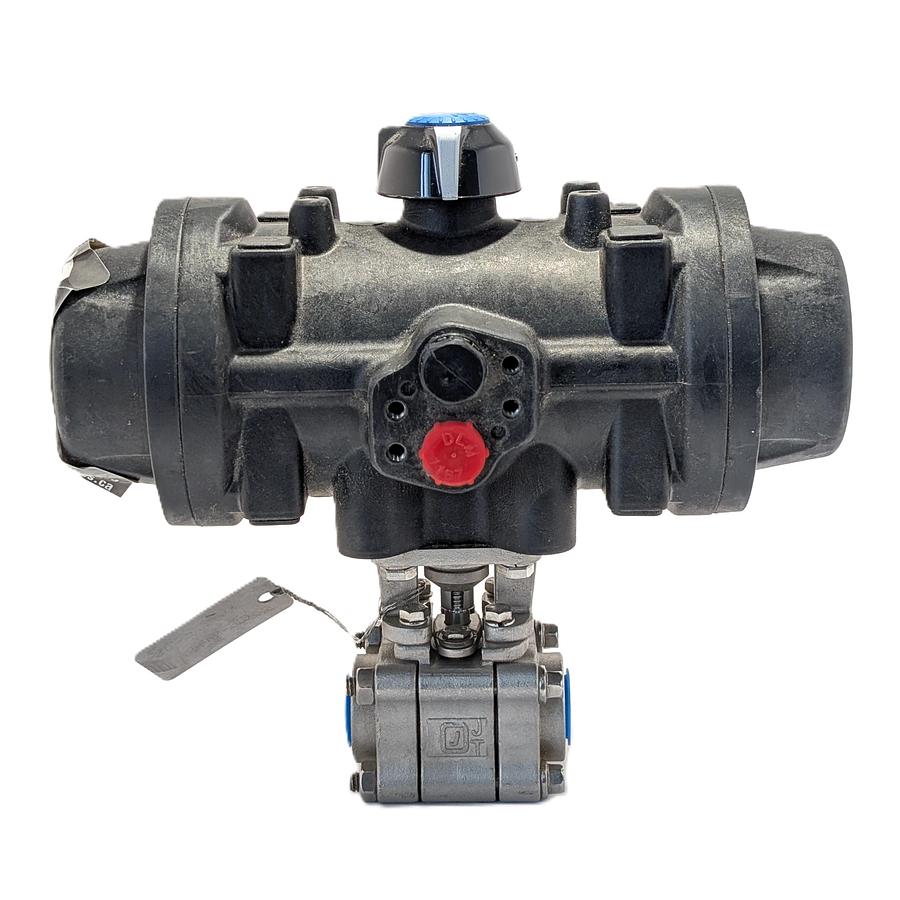

Chemline Plastics Ltd PPS10

Brand: Chemline Plastics Ltd

Model: PPS10

MFG No: 21469-91939

Control Pressure: 80 PSI

Control Function: Normally Closed (NC)

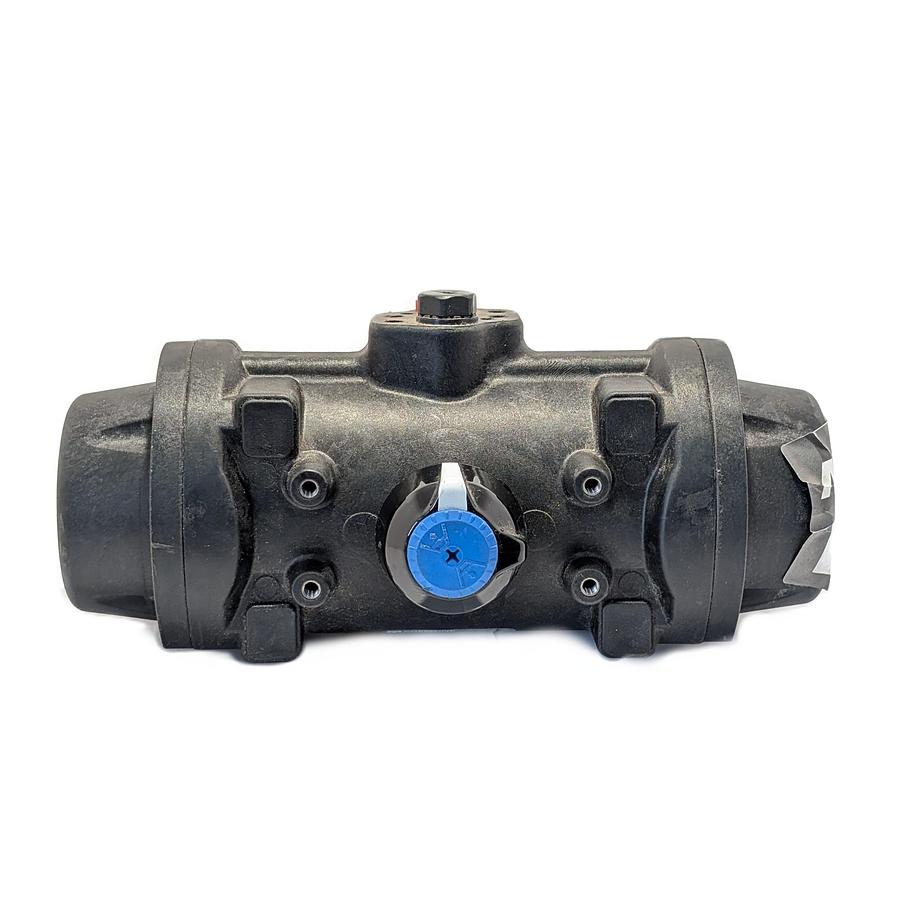

Type: Pneumatic Actuator (Quarter Turn, Rack & Pinion)

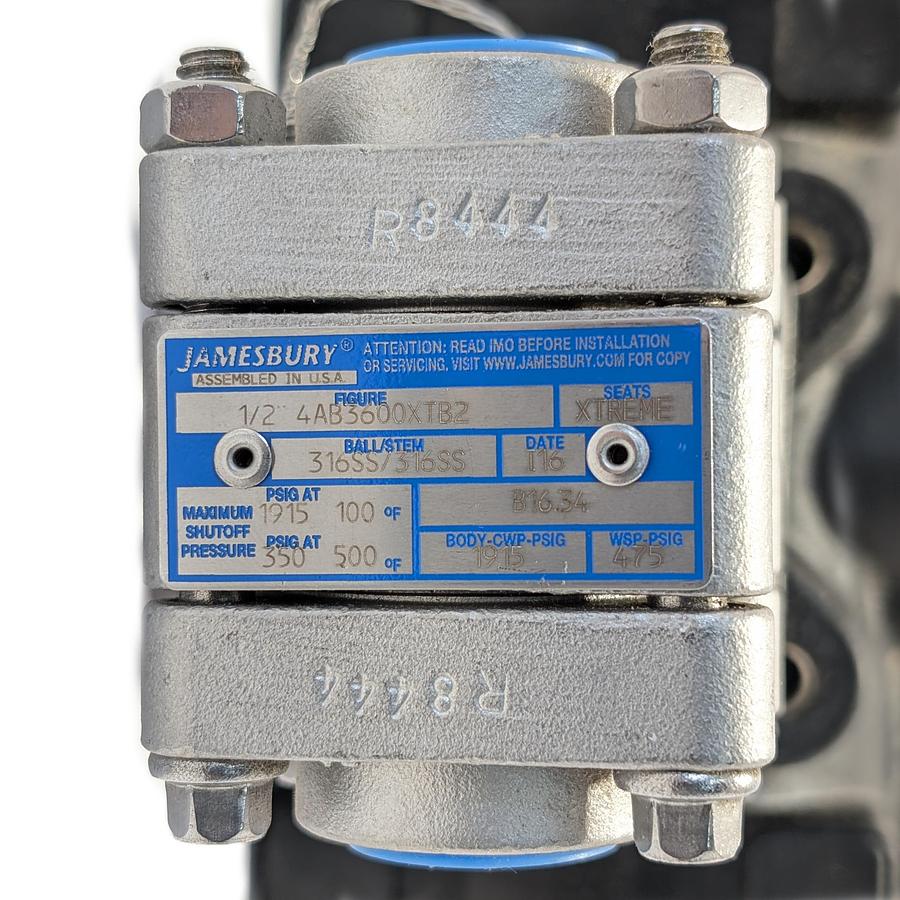

Valve Brand: Jamesbury

Valve Type: Ball Valve

Size: 1/2"

Model: 4AB3600XTB2

Body Material: Stainless Steel 316 (316SS)

Ball/Stem: 316SS / 316SS

Seats: Xtreme

Standard: ASME B16.34

Pressure Ratings:

Body CWP: 1915 PSI

WSP: 475 PSI

Max Shutoff: 1915 PSI @ 100°F

Max Shutoff: 350 PSI @ 500°F

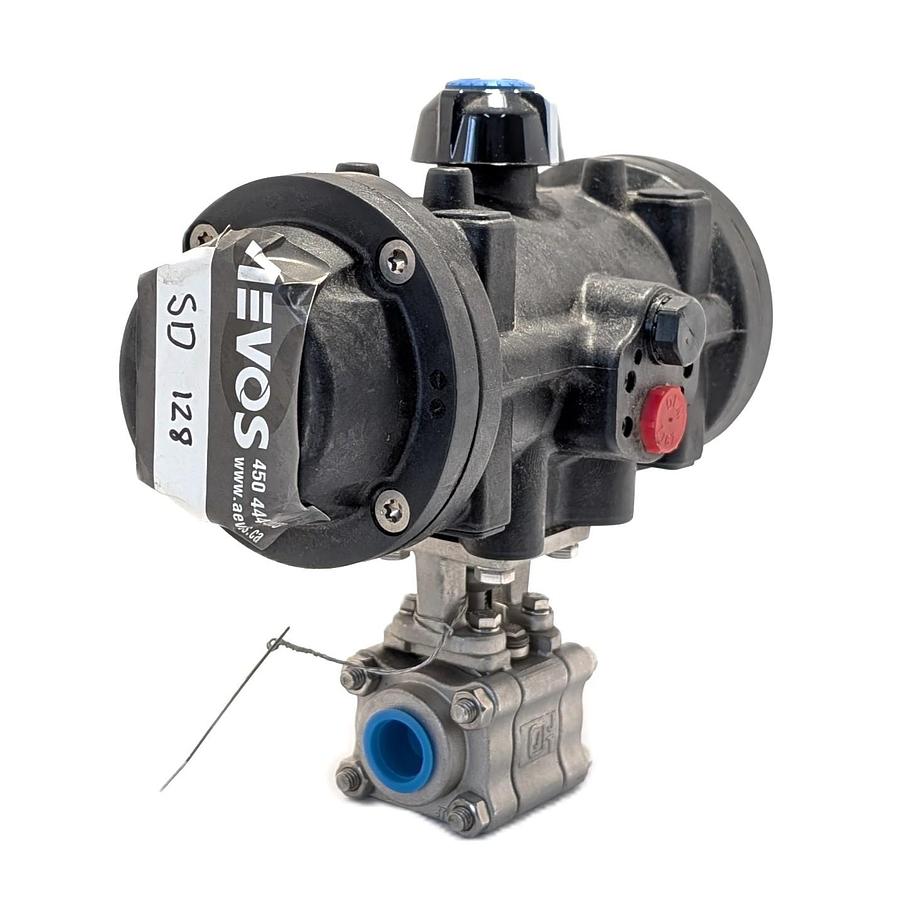

Assembly: Pneumatic actuated ball valve package
