AIRTAC SC100x40

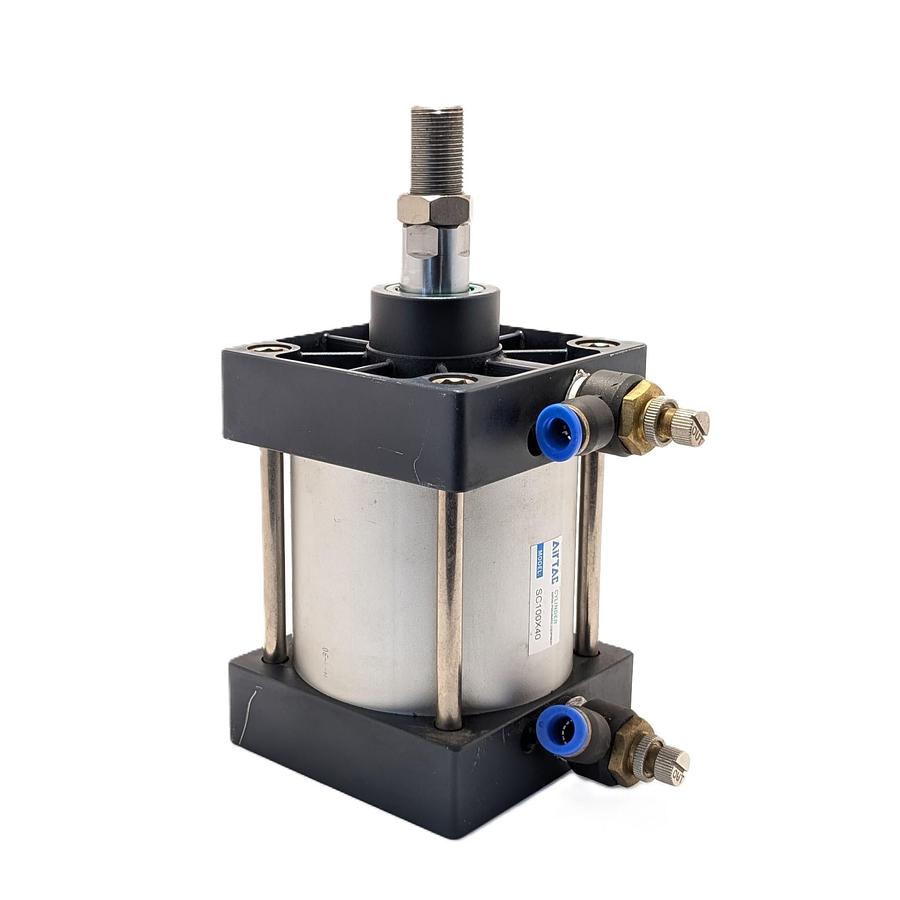

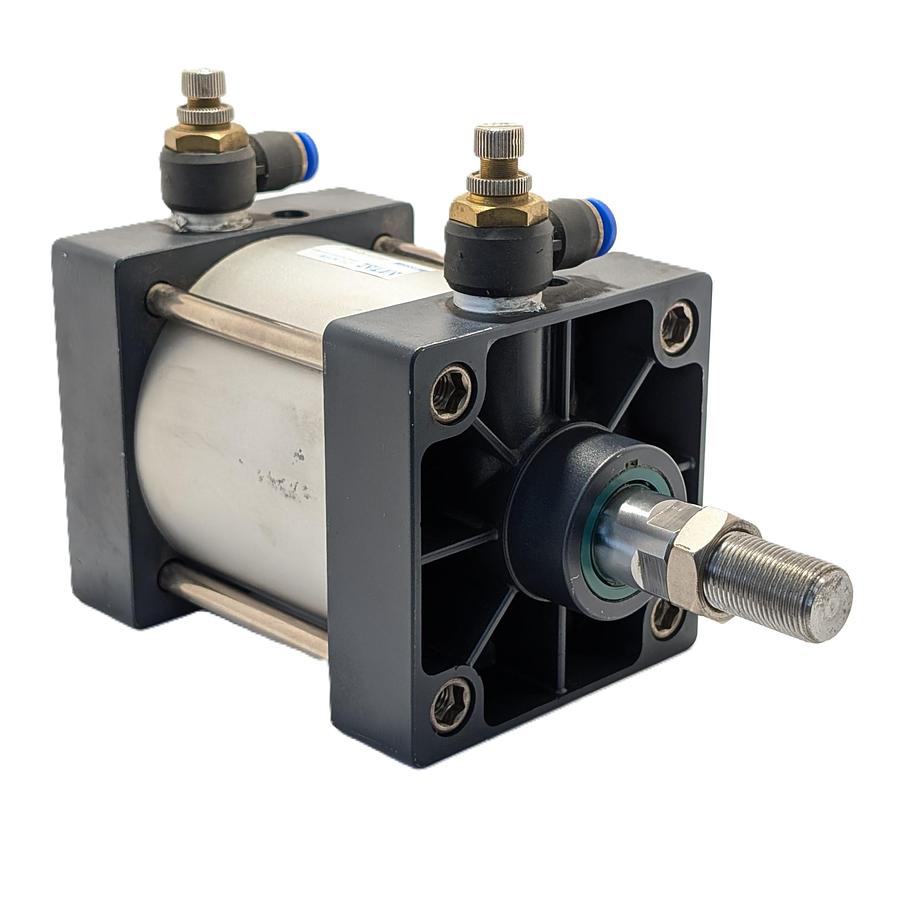

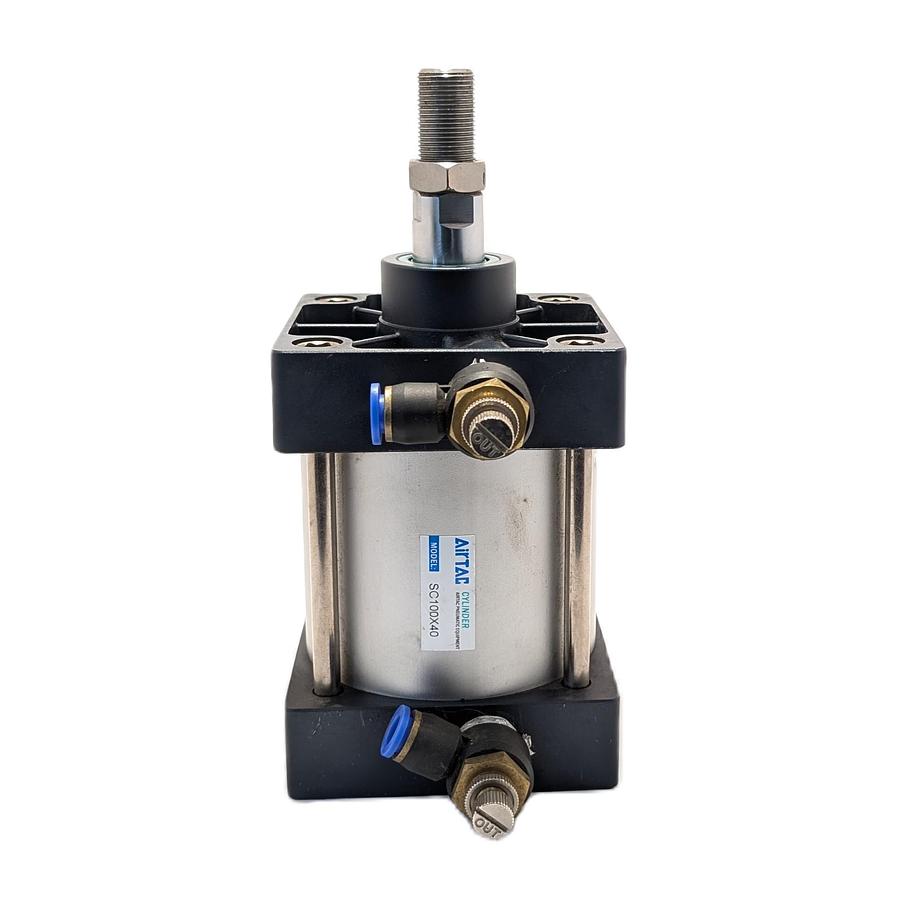

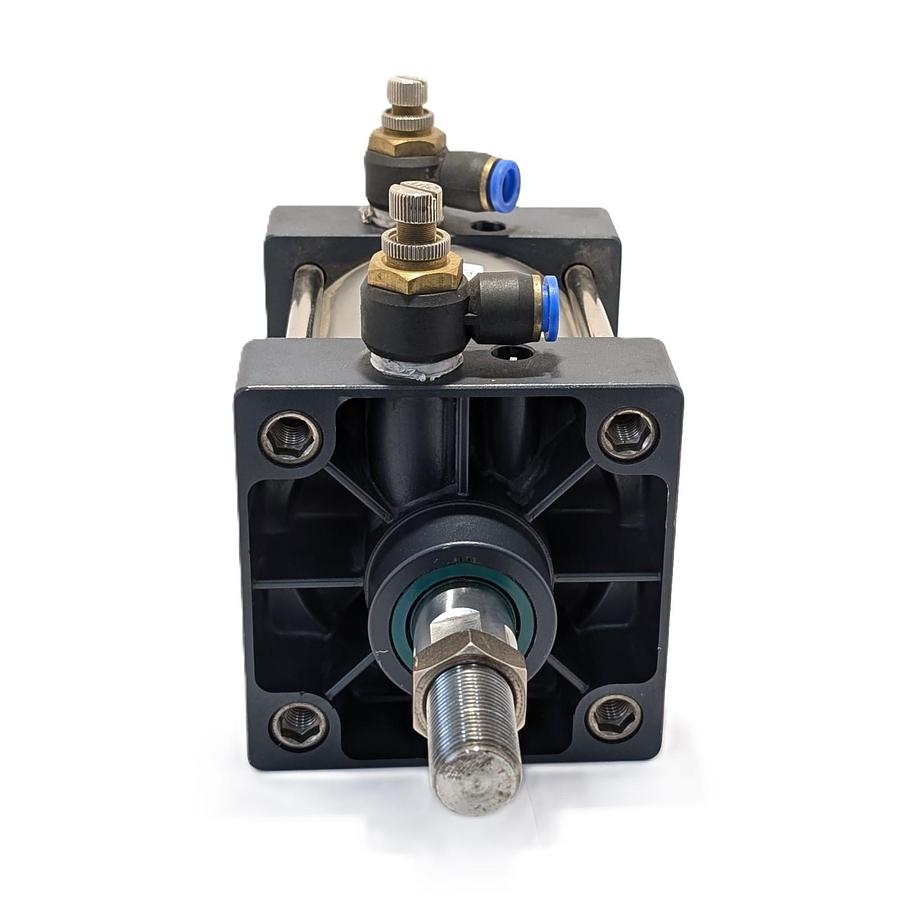

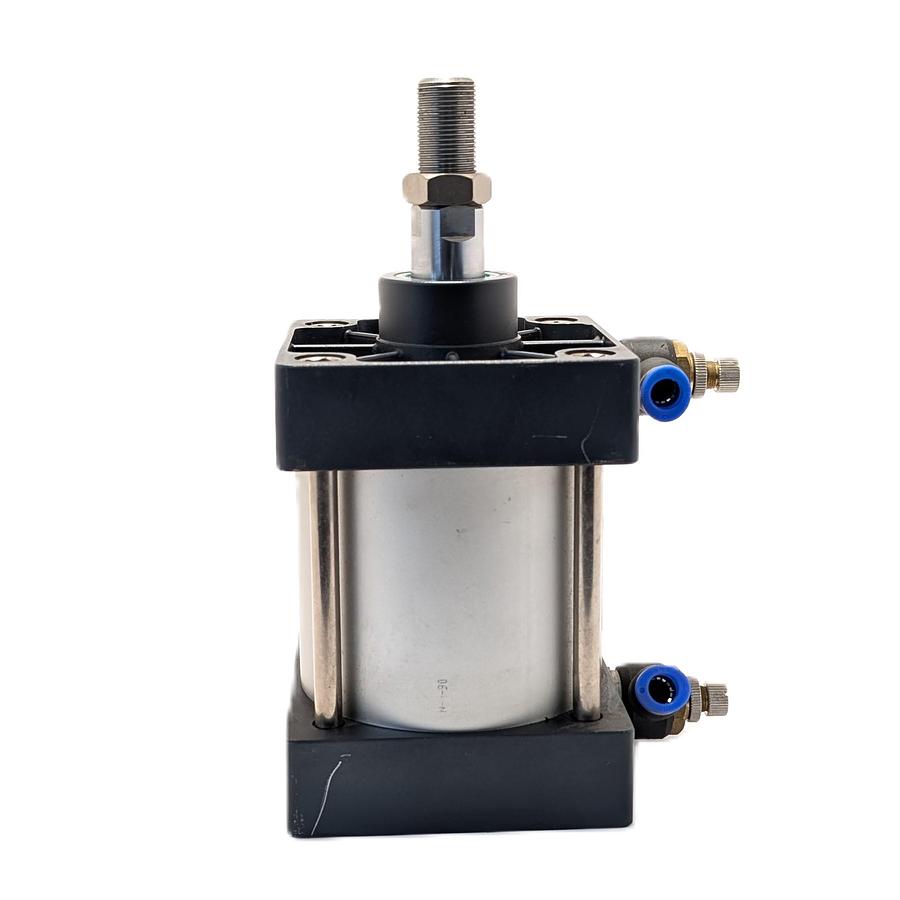

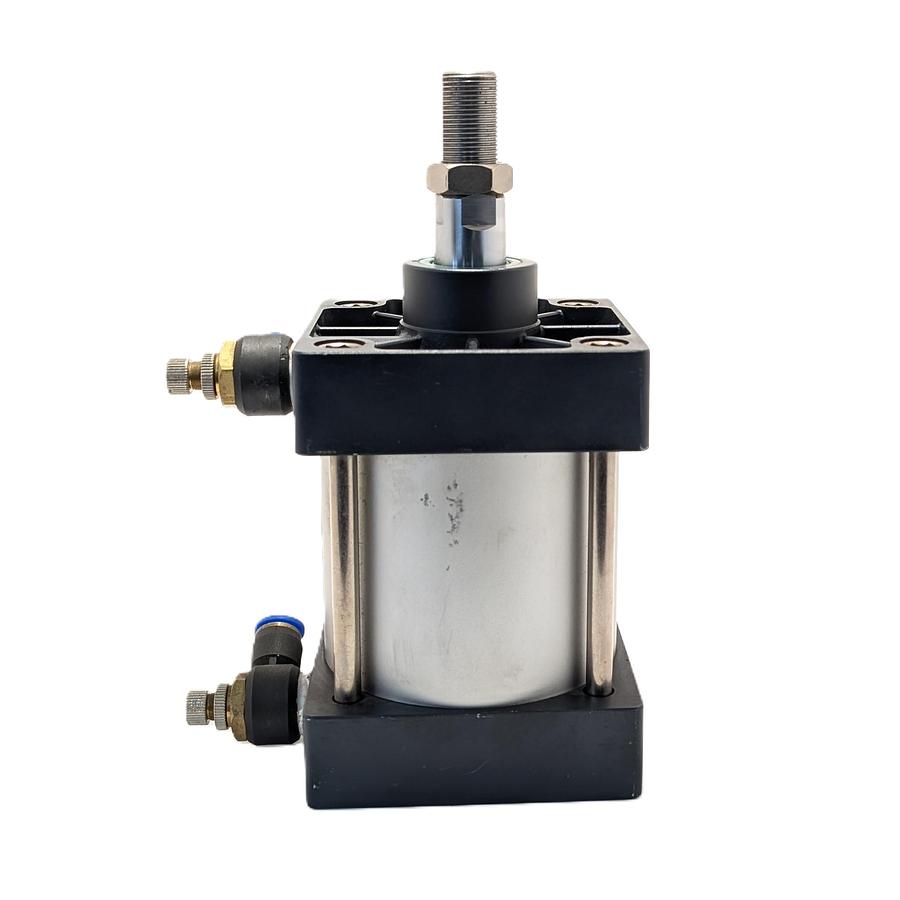

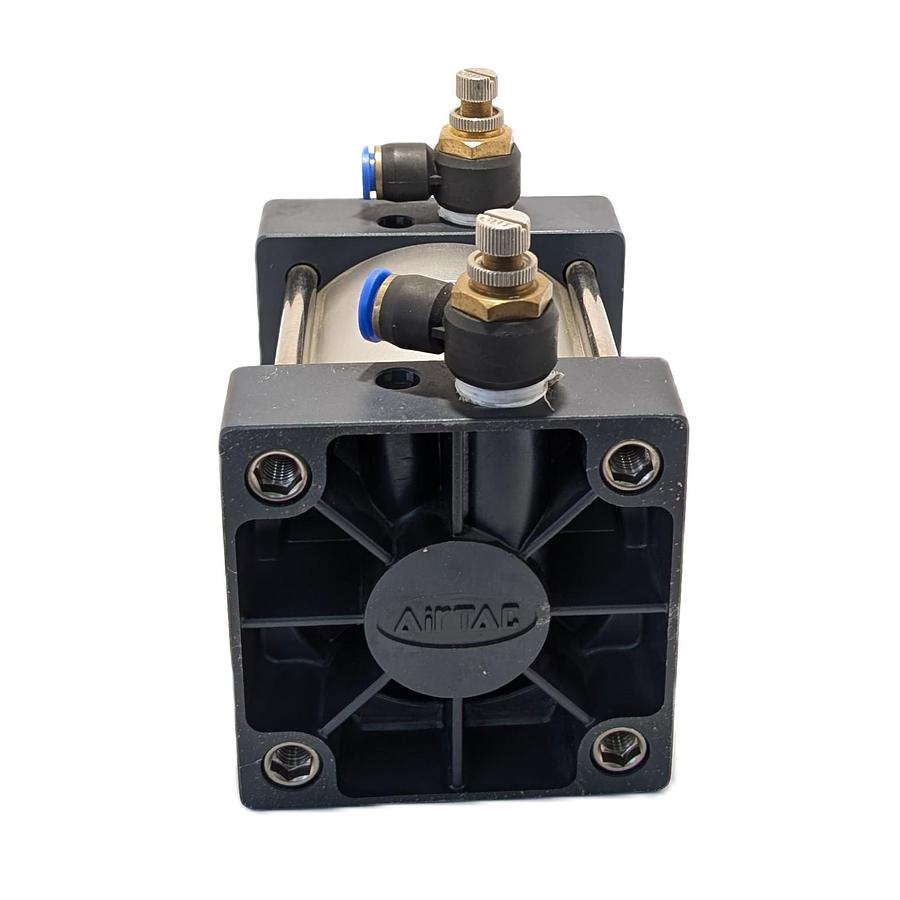

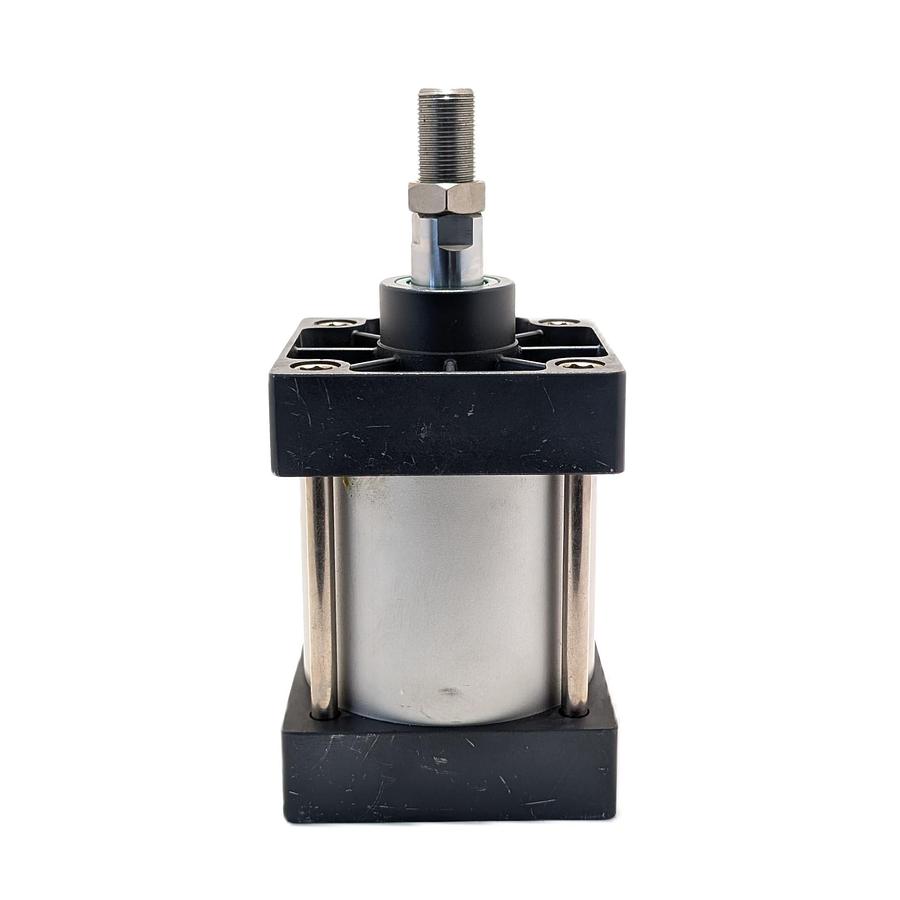

✅ AIRTAC Pneumatic Cylinder SC100x40 – USED, GOOD CONDITION

🔧 Technical Specifications:

• Model: AIRTAC SC100x40
• Type: Standard pneumatic cylinder (ISO 15552 – formerly ISO 6431)
• Bore size (piston diameter): 100 mm
• Stroke: 40 mm
• Action type: Double-acting (air-powered extend and retract)
• Operating pressure: 0.1 to 1.0 MPa (1 to 10 bar)
• Operating temperature: -20 °C to +80 °C (with clean, dry air)
• Cushioning: Adjustable end-of-stroke cushioning (via screw adjusters)
• Mounting style: Via end caps or brackets (not included, optional)
• Port threads: Typically G 3/8" or G 1/2" (depends on specific version)
• Construction materials:
• Anodized aluminum cylinder body
• Hard chrome-plated steel piston rod
• NBR seals (standard configuration)

💡 Typical Applications:

• Industrial automation
• Custom machinery
• Packaging, handling, light pressing operations

📍 Notes:

• Heavy-duty, reliable cylinder for demanding industrial use
• Large bore (100 mm) = high force output
• Short stroke (40 mm) = fast cycle time or short push/pull actions
